Siemens 3SE7150-1BH04
Safety cable-operated switch metal enclosure, 2 xM20x1.5
- MPN
- 3SE7150-1BH04
Price and lead time confirmed within 1 business day
Request a Quote
- 1We check stock, condition and lead time
- 2You get a written quote by email
- 3Approve it and we ship — in-stock parts within 1 business day
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- 100% positive eBay feedback
- Ships via

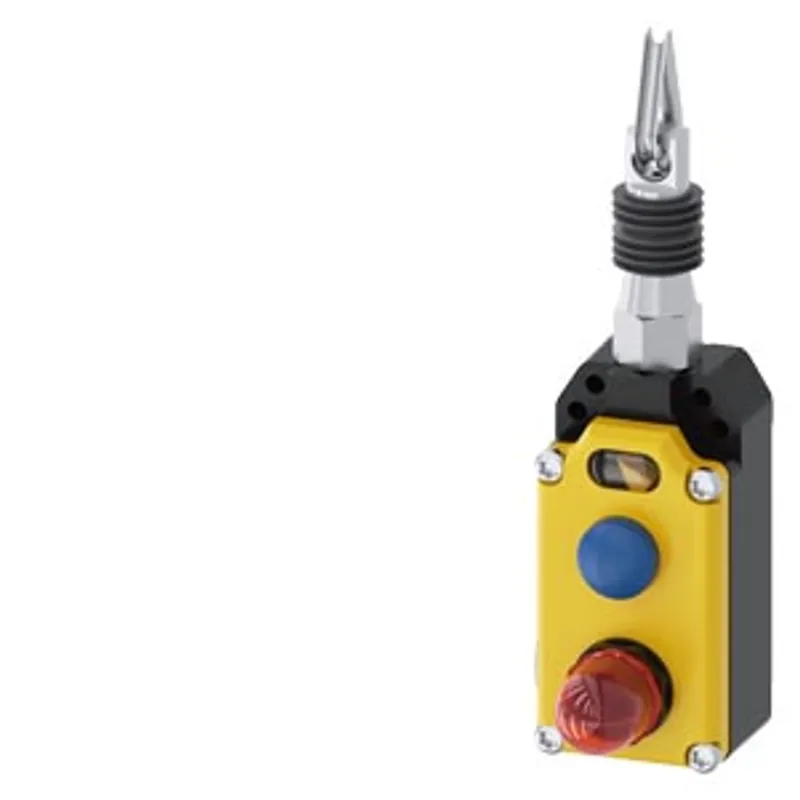

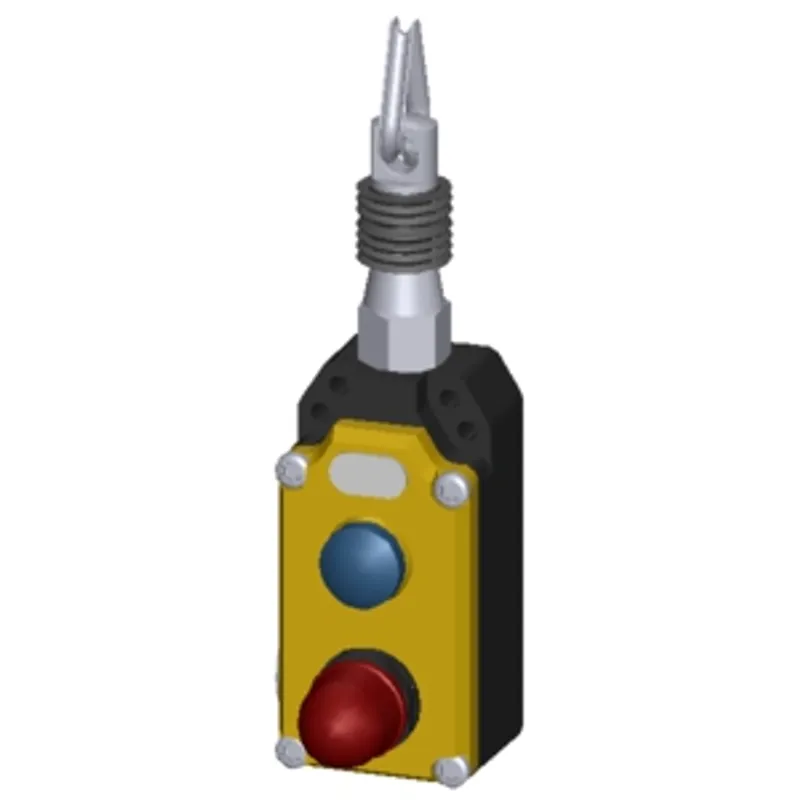

What is the Siemens 3SE7150-1BH04?
safety cable-operated switch metal enclosure, 2 xM20x1.5; with yellow cover with latching according to EN ISO 13850 button reset, with LED lamp 24 V DC, red, for wire lengths up to 20 m
Specifications
General
| product brand name | SIRIUS |
| product designation | cable-operated switch |
| product type designation | 3SE7 |
General technical data
| product function EMERGENCY STOP function | Yes |
| product component light source | Yes |
| insulation voltage rated value | 250 V |
| degree of pollution | class 3 |
| surge voltage resistance rated value | 6 kV |
| protection class IP | IP65 |
| mechanical service life (operating cycles) typical | 100 000 |
| thermal current | 2 A |
| reference code according to IEC 81346-2 | S |
| continuous current of the DIAZED fuse link gG | 2 A |
| Substance Prohibitance (day/month/year) | 07/01/2006 |
| Net Weight | 440 g |
Ambient conditions
| ambient temperature during operation | -25 ... +70 °C |
| number of NC contacts for auxiliary contacts | 2 |
| number of NO contacts for auxiliary contacts | 1 |
| operational current at AC-15 — at 240 V rated value | 2 A |
| operational current at DC-13 — at 24 V rated value | 3 A |
| operational current at DC-13 — at 250 V rated value | 0.27 A |
Enclosure
| material of the enclosure | metal |
| material of the enclosure cover | Plastic |
| product component EMERGENCY STOP device | No |
| color — of the enclosure | black |
| color — of the enclosure top part | yellow |
| coating of the enclosure | painted |
Display
| product function status display | Yes |
Lamp
| color of the light source | red |

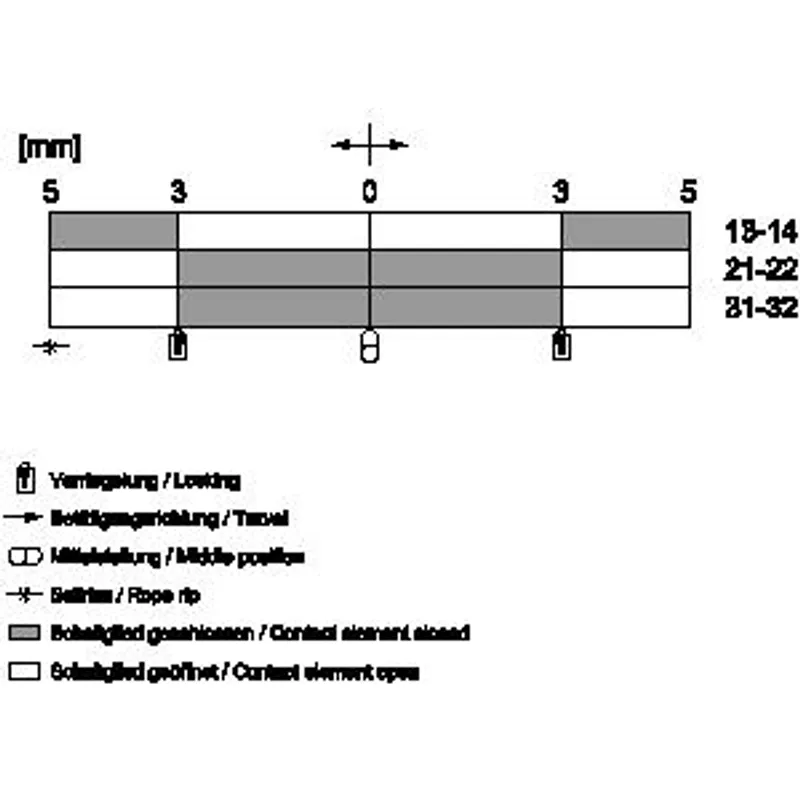

| circuit principle | Jump function |
| material of the contact | Silver |
| number of switching contacts safety-related | 2 |
| cable entry type | 2x M20 x 1,5 |

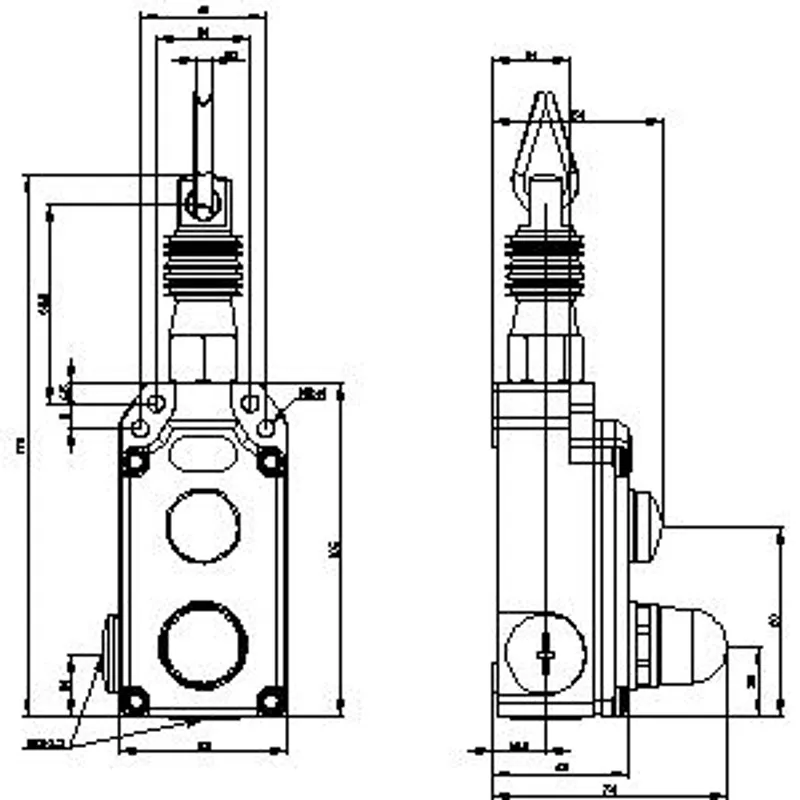

Installation/ mounting/ dimensions
| fastening method | screw fixing |
| height | 171 mm |
| width | 52 mm |
| depth | 74 mm |
Connections/ Terminals
| type of electrical connection | screw terminal |
| type of connectable conductor cross-sections — solid | 2x (0.5 ... 2.5 mm²) |
| type of connectable conductor cross-sections — finely stranded with core end processing | 2x (0.5 ... 2.5 mm²) |
| type of connectable conductor cross-sections — for AWG cables solid | 2x (20 ... 14) |
| type of connectable conductor cross-sections — for AWG cables stranded | 2x (20 ... 14) |
Supply voltage
| type of voltage of the supply voltage of the light source | DC |
| supply voltage 1 of the light source at DC rated value | 24 V |
| relative negative tolerance of the supply voltage | -15 % |
| relative positive tolerance of the supply voltage | 10 % |
Safety related data
| proportion of dangerous failures with high demand rate according to SN 31920 | 50 % |
| B10 value with high demand rate according to SN 31920 | 100 000 |
