Siemens

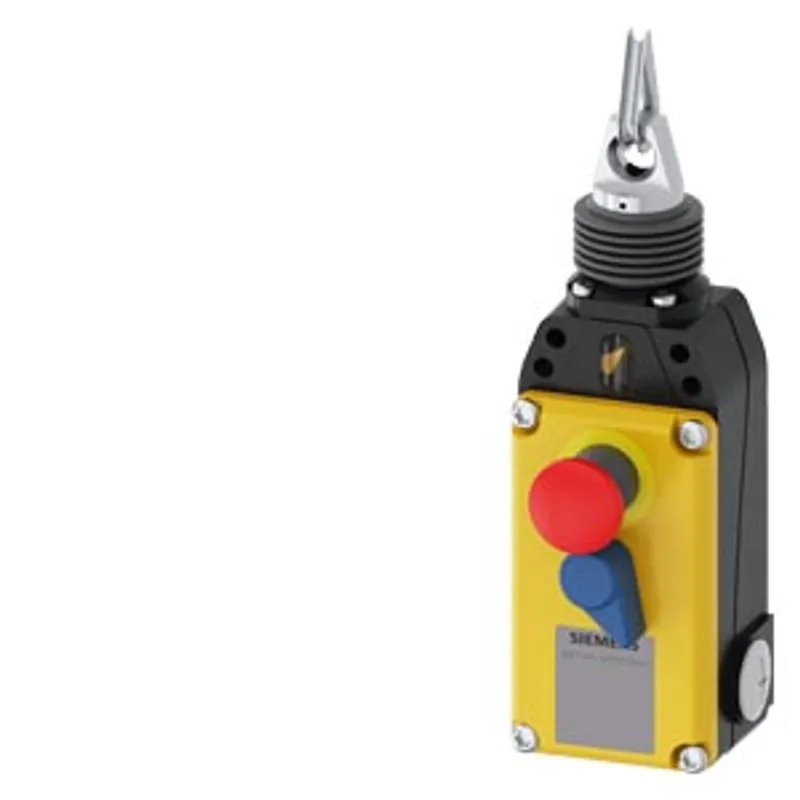

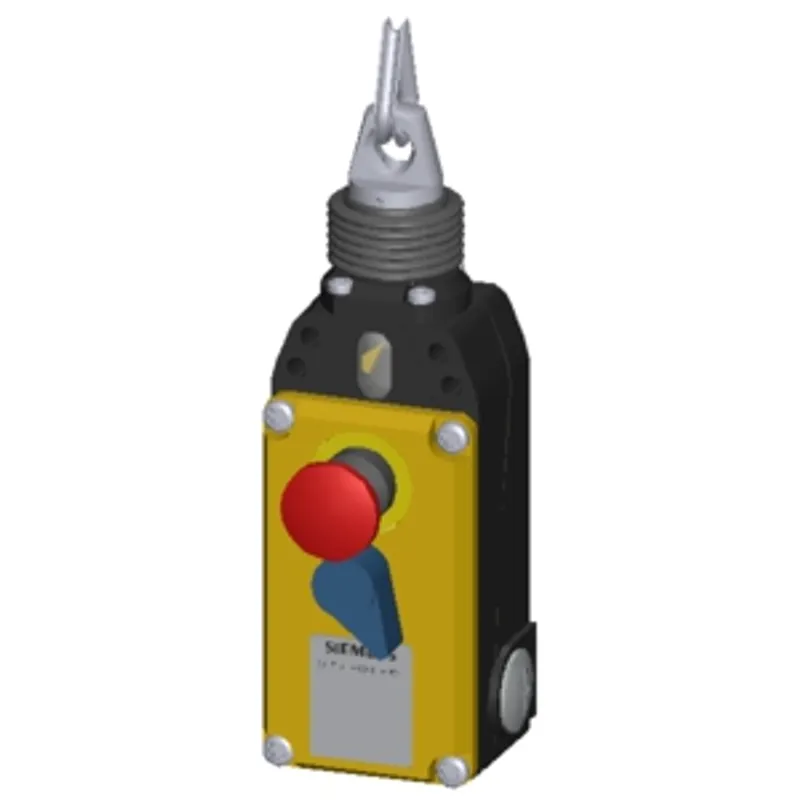

Siemens 3SE7141-1EG10-0CA1

Cable-operated switch with emergency stop metal enclosure IP67, yellow cover, 3 xM20 x1.5

MPN: 3SE7141-1EG10-0CA1
Category: SIRIUS 3SE71 cable-operated switches

Price and lead time confirmed within 1 business day

Request a Quote

1We check stock, condition and lead time
2You get a written quote by email
3Approve it and we ship — in-stock parts within 1 business day

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
100% positive eBay feedback
Ships via

Have spare Siemens parts? We buy surplus →

What is the Siemens 3SE7141-1EG10-0CA1?

cable-operated switch with emergency stop metal enclosure IP67, yellow cover, 3 xM20 x1.5; slow-action contacts 1 NO+3 NC; latching according to EN ISO 13850, with rotate-to-unlatch mechanism, for cable lengths up to 75 m

Specifications

General

product brand name	SIRIUS
product designation	cable-operated switch
product type designation	3SE7

General technical data

product function EMERGENCY STOP function	Yes
product component light source	No
insulation voltage rated value	250 V
degree of pollution	class 3
surge voltage resistance rated value	2.5 kV
protection class IP	IP67
mechanical service life (operating cycles) typical	100 000
thermal current	2 A
reference code according to IEC 81346-2	S
continuous current of the DIAZED fuse link gG	2 A
Substance Prohibitance (day/month/year)	07/01/2006
SVHC substance name	Lead CAS-No. 7439-92-1
Net Weight	0.782 kg

Ambient conditions

ambient temperature during operation	-25 ... +70 °C
number of NC contacts for auxiliary contacts	3
number of NO contacts for auxiliary contacts	1
operational current at AC-15 — at 240 V rated value	6 A
operational current at DC-13 — at 24 V rated value	2 A
operational current at DC-13 — at 250 V rated value	0.25 A

Enclosure

material of the enclosure	metal
material of the enclosure cover	Plastic
product component EMERGENCY STOP device	Yes
color — of the enclosure	black
color — of the enclosure top part	yellow
coating of the enclosure	painted

Display

product function status display	Yes

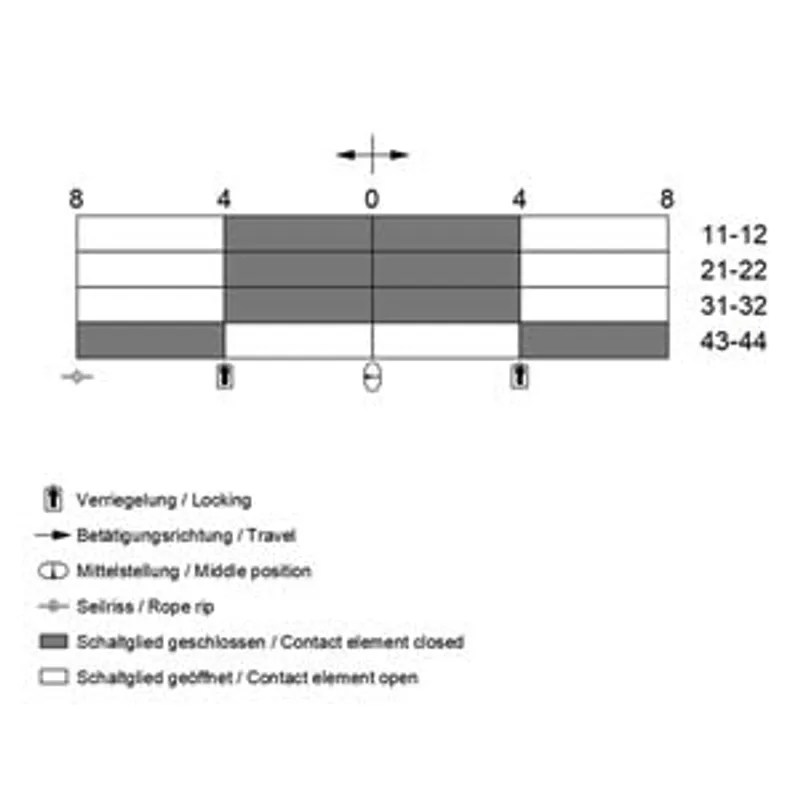

circuit principle	Slow-action function
material of the contact	Silver
number of switching contacts safety-related	3
cable entry type	3x M20 x 1,5

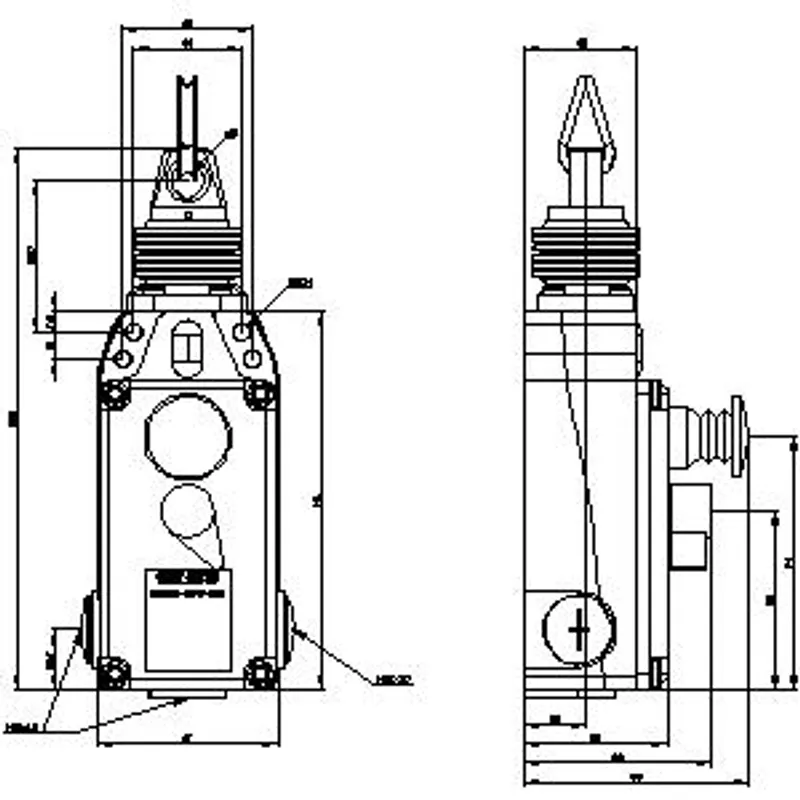

Installation/ mounting/ dimensions

fastening method	screw fixing
height	201 mm
width	67 mm
depth	83 mm

Connections/ Terminals

type of electrical connection	screw terminal
type of connectable conductor cross-sections — solid	2x (0.5 ... 2.5 mm²)
type of connectable conductor cross-sections — finely stranded with core end processing	2x (0.5 ... 2.5 mm²)
type of connectable conductor cross-sections — for AWG cables solid	2x (20 ... 14)
type of connectable conductor cross-sections — for AWG cables stranded	2x (20 ... 14)

Safety related data

proportion of dangerous failures with high demand rate according to SN 31920	50 %
B10 value with high demand rate according to SN 31920	100 000

Downloads & documentation

Official documents from Siemens, downloaded directly from the manufacturer.

Data sheets & manuals

Product data sheet 3SE7141-1EG10-0CA1PDF

3SE7141-1EG10-0CA1: frequently asked questions

When can 3SE7141-1EG10-0CA1 be shipped?

3SE7141-1EG10-0CA1 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up 3SE7141-1EG10-0CA1 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for 3SE7141-1EG10-0CA1 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 3SE7141-1EG10-0CA1, subject to availability and destination.
