Siemens 3SE7140-1BD00

Cable-operated switch Metal enclosure, 1x M20x1.5; 1 NO+1 NC, latching EN ISO 13850 and pushbutton release

MPN: 3SE7140-1BD00
Category: SIRIUS 3SE71 cable-operated switches

Price and lead time confirmed within 1 business day

Request a Quote

1We check stock, condition and lead time
2You get a written quote by email
3Approve it and we ship — in-stock parts within 1 business day

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
100% positive eBay feedback
Ships via

Have spare Siemens parts? We buy surplus →

What is the Siemens 3SE7140-1BD00?

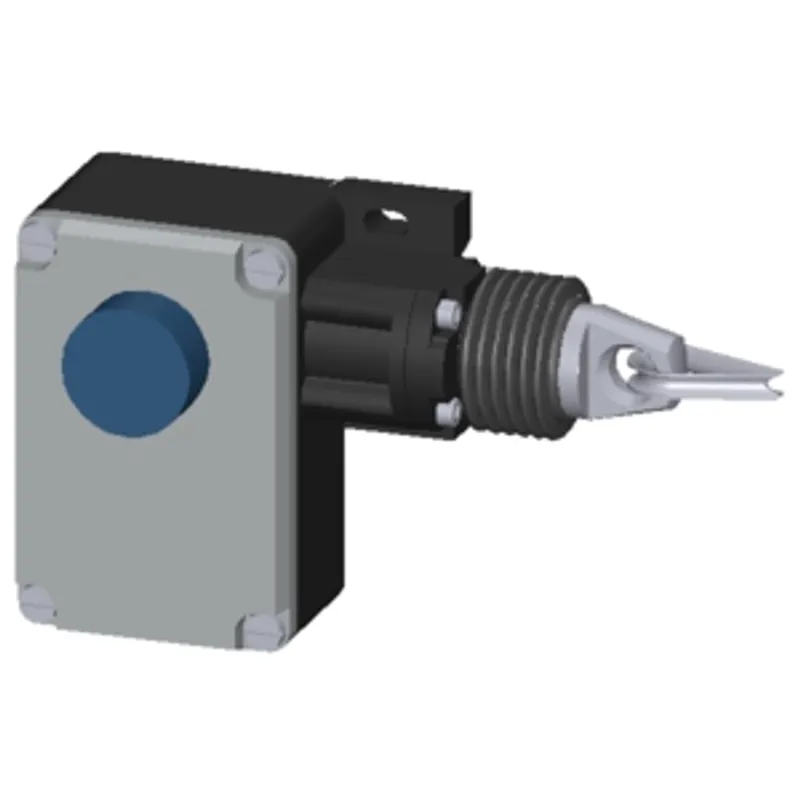

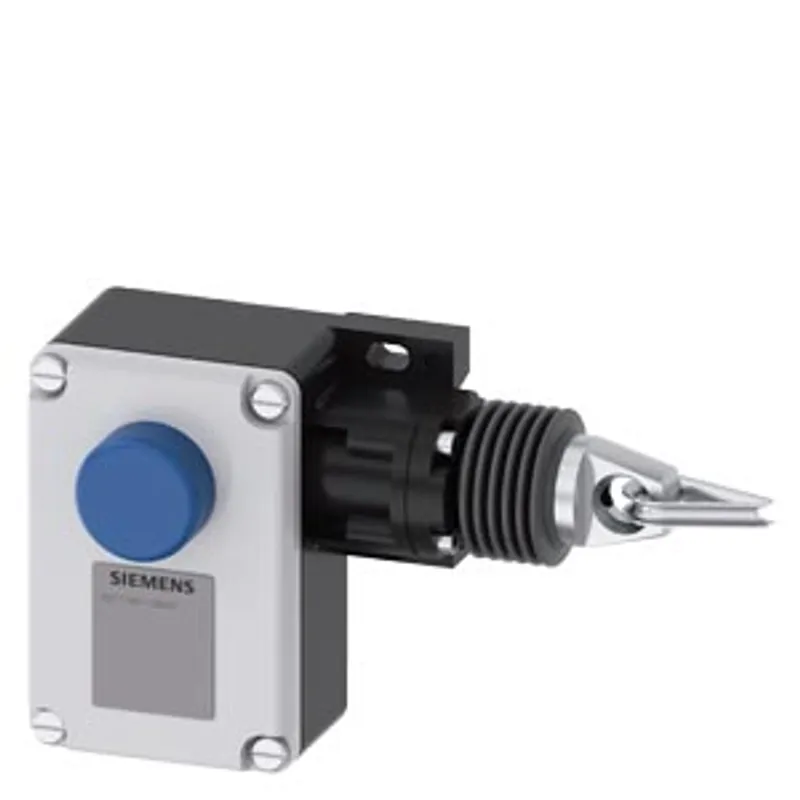

Cable-operated switch Metal enclosure, 1x M20x1.5; 1 NO+1 NC, latching EN ISO 13850 and pushbutton release, for wire lengths up to 50 m

Specifications

General

product brand name	SIRIUS
product designation	cable-operated switch
product type designation	3SE7

General technical data

product function EMERGENCY STOP function	Yes
product component light source	No
insulation voltage rated value	400 V
degree of pollution	class 3
surge voltage resistance rated value	6 kV
protection class IP	IP65
mechanical service life (operating cycles) typical	100 000
thermal current	6 A
reference code according to IEC 81346-2	S
continuous current of the DIAZED fuse link gG	6 A
Substance Prohibitance (day/month/year)	07/01/2006
Net Weight	0.789 kg

Ambient conditions

ambient temperature during operation	-25 ... +70 °C
number of NC contacts for auxiliary contacts	1
number of NO contacts for auxiliary contacts	1
operational current at AC-15 — at 240 V rated value	6 A
operational current at AC-15 — at 400 V rated value	6 A
operational current at DC-13 — at 24 V rated value	3 A
operational current at DC-13 — at 250 V rated value	0.27 A

Enclosure

material of the enclosure	metal
material of the enclosure cover	Plastic
product component EMERGENCY STOP device	No
color — of the enclosure	black
color — of the enclosure top part	grey
coating of the enclosure	painted

Display

product function status display	No

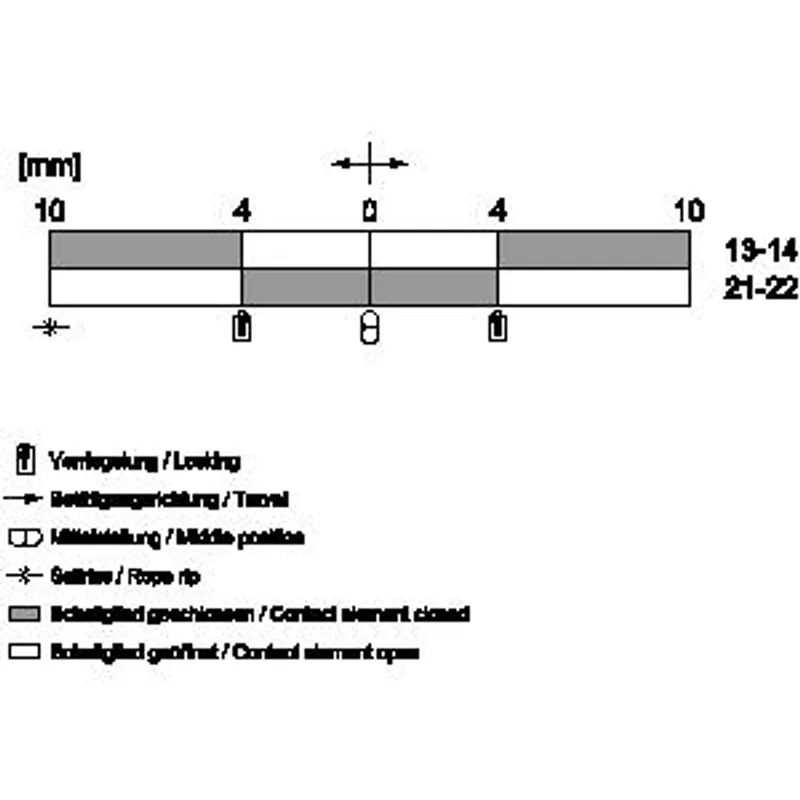

circuit principle	Jump function
material of the contact	Silver
number of switching contacts safety-related	1
cable entry type	1x M20 x 1,5

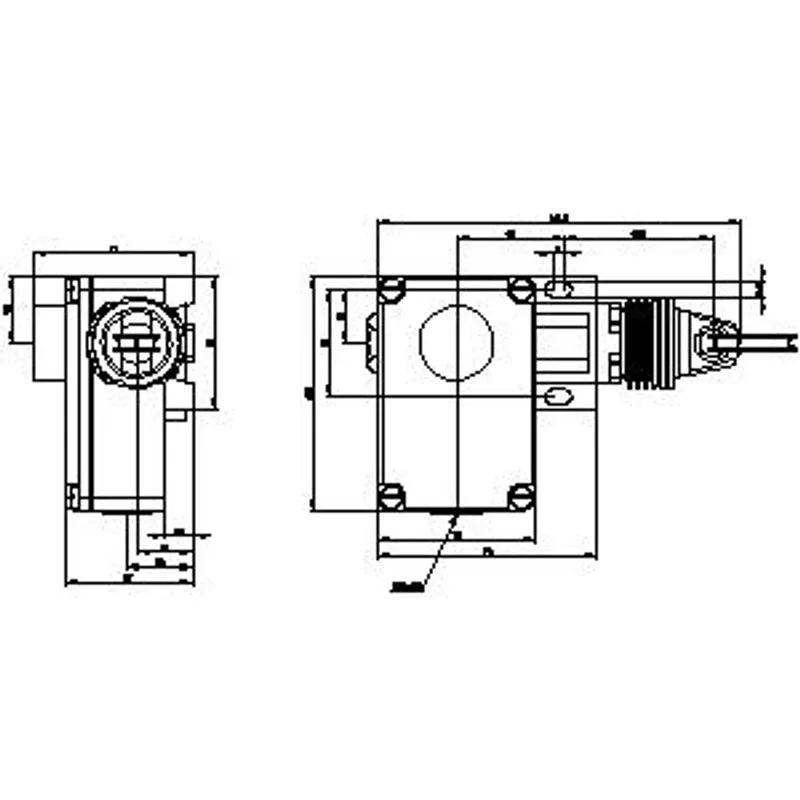

Installation/ mounting/ dimensions

fastening method	screw fixing
height	105 mm
width	167 mm
depth	71 mm

Connections/ Terminals

type of electrical connection	screw terminal
type of connectable conductor cross-sections — solid	2x (0.5 ... 2.5 mm²)
type of connectable conductor cross-sections — finely stranded with core end processing	2x (0.5 ... 2.5 mm²)
type of connectable conductor cross-sections — for AWG cables solid	2x (20 ... 14)
type of connectable conductor cross-sections — for AWG cables stranded	2x (20 ... 14)

Safety related data

proportion of dangerous failures with high demand rate according to SN 31920	50 %
B10 value with high demand rate according to SN 31920	100 000
