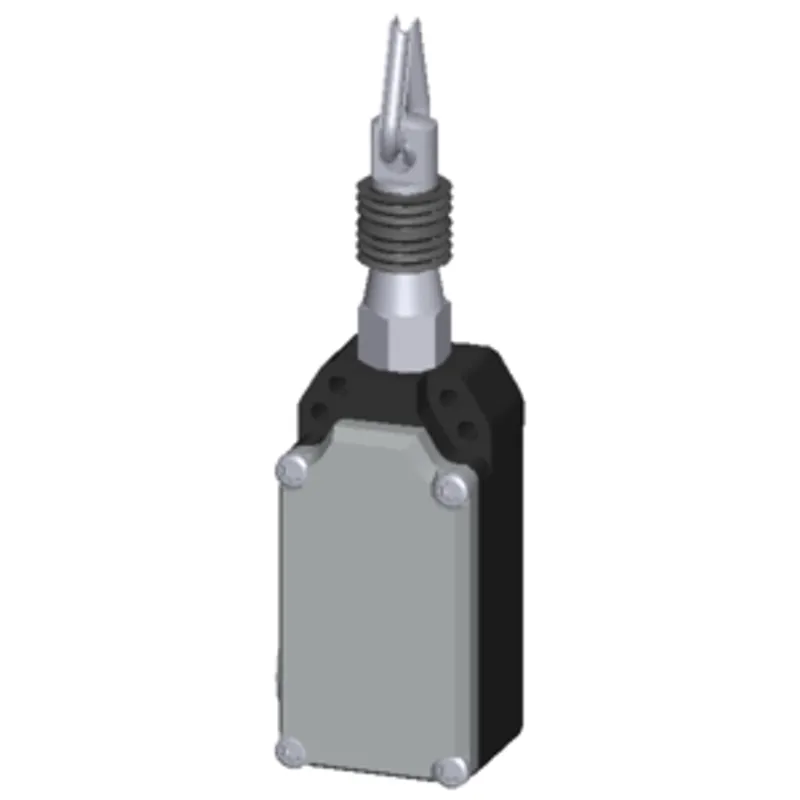

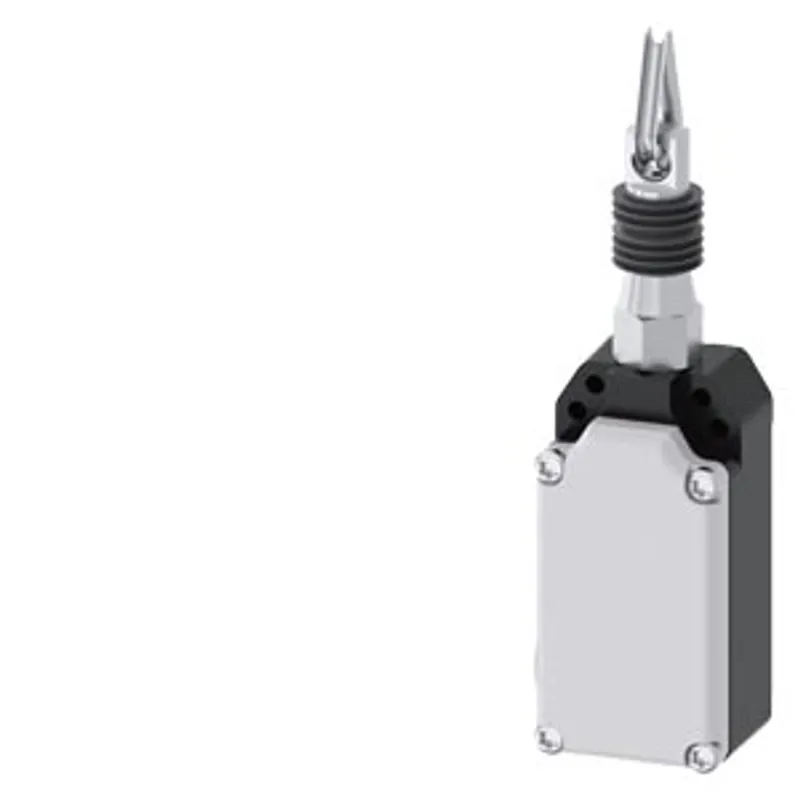

Siemens 3SE7120-2DD01-1AS7
Cable-operated switch for 5 m cable length, spring 100 N, metal enclosure, 2x M20 x1.5; 1 NO+1 NC
- MPN
- 3SE7120-2DD01-1AS7
Price and lead time confirmed within 1 business day
Request a Quote
- 1We check stock, condition and lead time
- 2You get a written quote by email
- 3Approve it and we ship — in-stock parts within 1 business day
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- 100% positive eBay feedback
- Ships via
What is the Siemens 3SE7120-2DD01-1AS7?
cable-operated switch for 5 m cable length, spring 100 N, metal enclosure, 2x M20 x1.5; 1 NO+1 NC, without latching, only Bowden cable function, maximum actuating force 160 N
Specifications
General
| product brand name | SIRIUS |
| product designation | cable-operated switch |
| product type designation | 3SE7 |
General technical data
| product function EMERGENCY STOP function | No |
| product component light source | No |
| insulation voltage rated value | 400 V |
| degree of pollution | class 3 |
| surge voltage resistance rated value | 6 kV |
| protection class IP | IP65 |
| mechanical service life (operating cycles) typical | 1 000 000 |
| thermal current | 6 A |
| reference code according to IEC 81346-2 | S |
| continuous current of the DIAZED fuse link gG | 6 A |
| Substance Prohibitance (day/month/year) | 07/01/2006 |
| Net Weight | 0.433 kg |
Ambient conditions
| ambient temperature during operation | -25 ... +70 °C |
| number of NC contacts for auxiliary contacts | 1 |
| number of NO contacts for auxiliary contacts | 1 |
| operational current at AC-15 — at 240 V rated value | 6 A |
| operational current at AC-15 — at 400 V rated value | 6 A |
Enclosure
| material of the enclosure | metal |
| material of the enclosure cover | Plastic |
| product component EMERGENCY STOP device | No |
| color — of the enclosure | black |
| color — of the enclosure top part | grey |
| coating of the enclosure | painted |
Display
| product function status display | No |

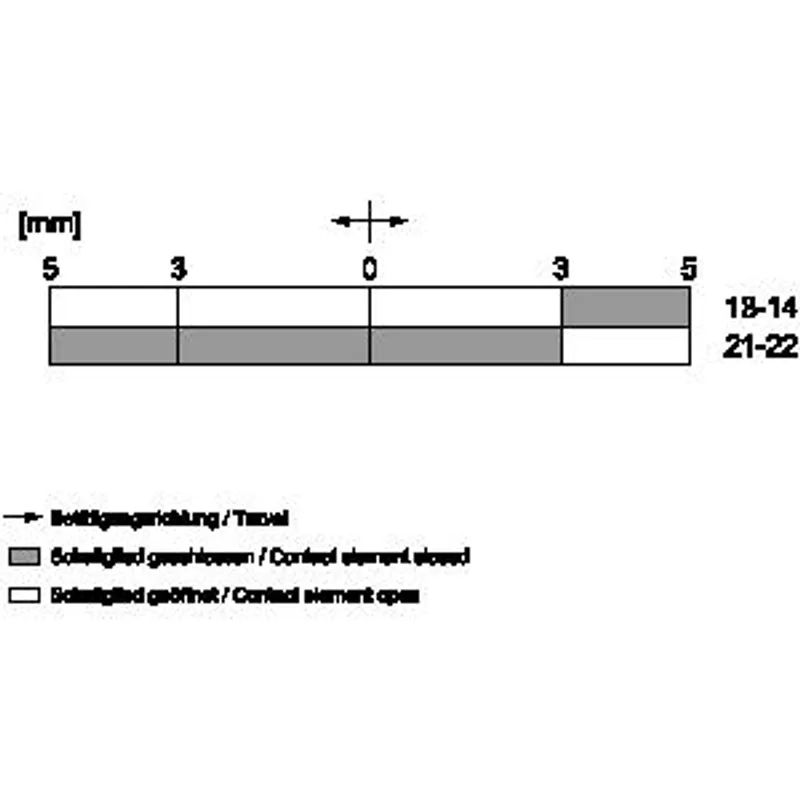

| circuit principle | Jump function |
| material of the contact | Silver |
| number of switching contacts safety-related | 1 |
| cable entry type | 2x M20 x 1,5 |

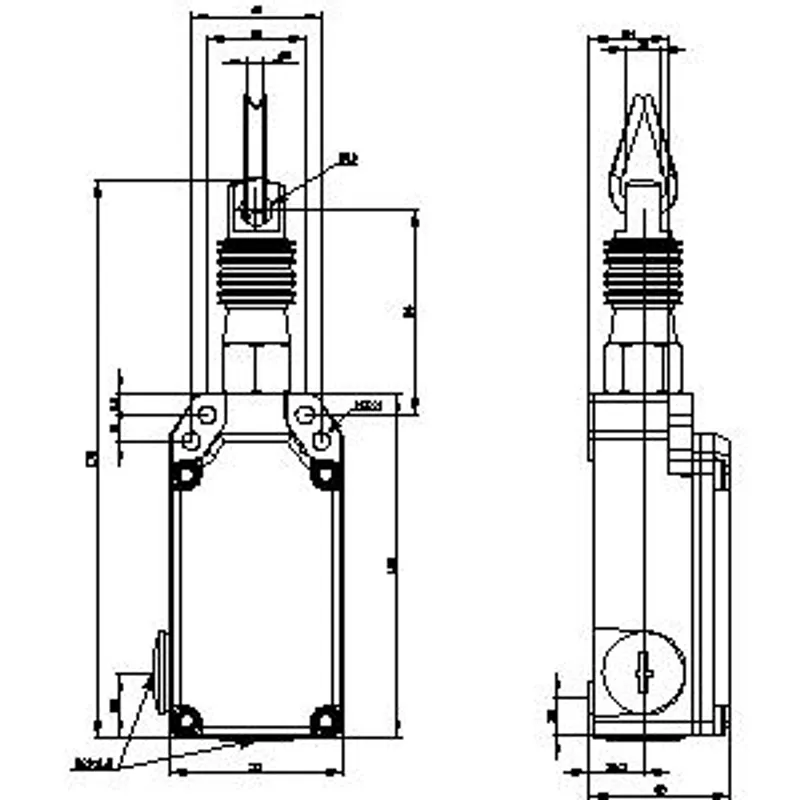

Installation/ mounting/ dimensions
| fastening method | screw fixing |
| height | 172 mm |
| width | 53 mm |
| depth | 43 mm |
Connections/ Terminals
| type of electrical connection | screw terminal |
| type of connectable conductor cross-sections — solid | 2x (0.5 ... 2.5 mm²) |
| type of connectable conductor cross-sections — finely stranded with core end processing | 2x (0.5 ... 2.5 mm²) |
| type of connectable conductor cross-sections — for AWG cables solid | 2x (20 ... 14) |
| type of connectable conductor cross-sections — for AWG cables stranded | 2x (20 ... 14) |
