Siemens 3SE2283-0GA53
Hinge switch Molded-plastic enclosure with aluminum hinge 1 NO/2 NC slow-action contacts for 40 mm profiles…
- MPN
- 3SE2283-0GA53
- Category
- with integrated hinge
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback

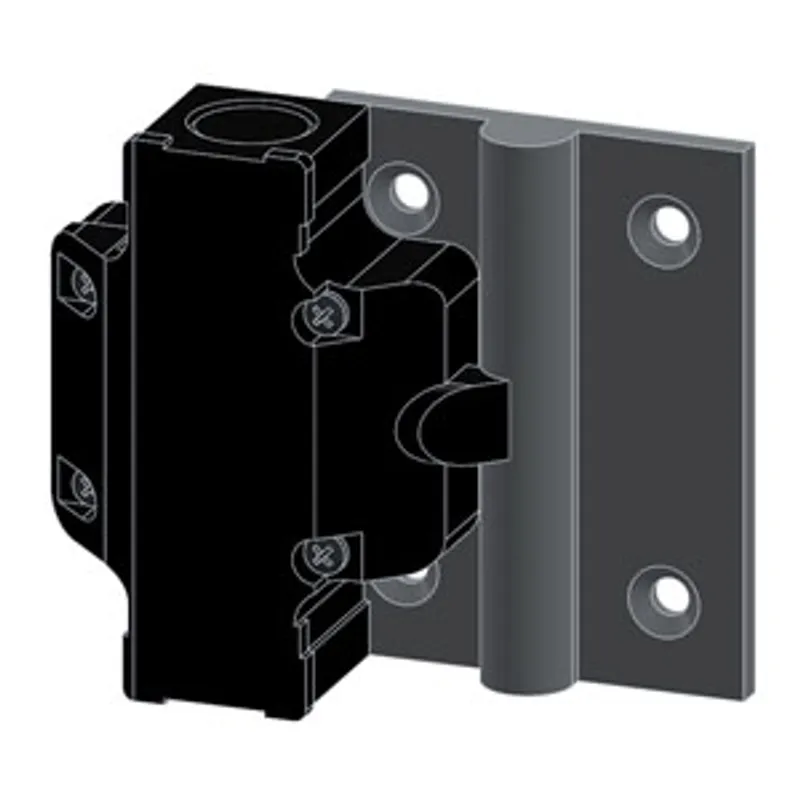

What is the Siemens 3SE2283-0GA53?

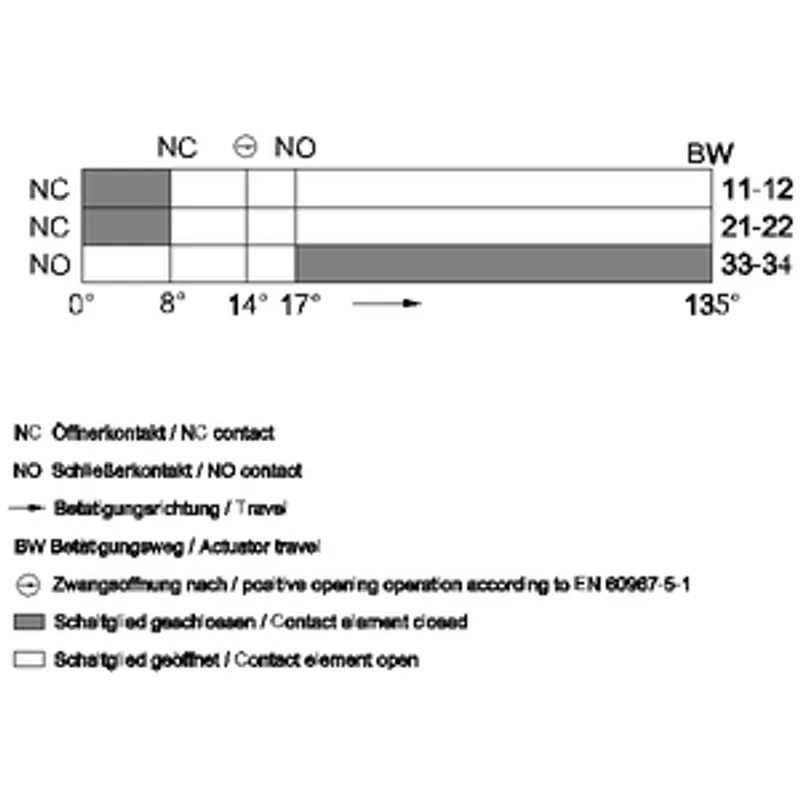

Hinge switch Molded-plastic enclosure with aluminum hinge 1 NO/2 NC slow-action contacts for 40 mm profiles Actuating angle 8° Supplied with additional hinge and fixing material
Specifications
General
| product brand name | SIRIUS |
| product designation | Safety hinge switches |
| product type designation | 3SE228 |
General technical data
| product function positive opening | Yes |
| insulation voltage rated value | 250 V |
| surge voltage resistance rated value | 4 kV |
| protection class IP | IP65 |
| shock resistance | 30g / 18 ms |
| vibration resistance | 10 ... 200 Hz: 20g |
| mechanical service life (operating cycles) typical | 1 000 000 |
| thermal current | 2.5 A |
| reference code according to IEC 81346-2 | B |
| active principle | mechanical |
| Substance Prohibitance (day/month/year) | 07/01/2006 |
| SVHC substance name | Lead CAS-No. 7439-92-1 |
| Net Weight | 0.426 kg |

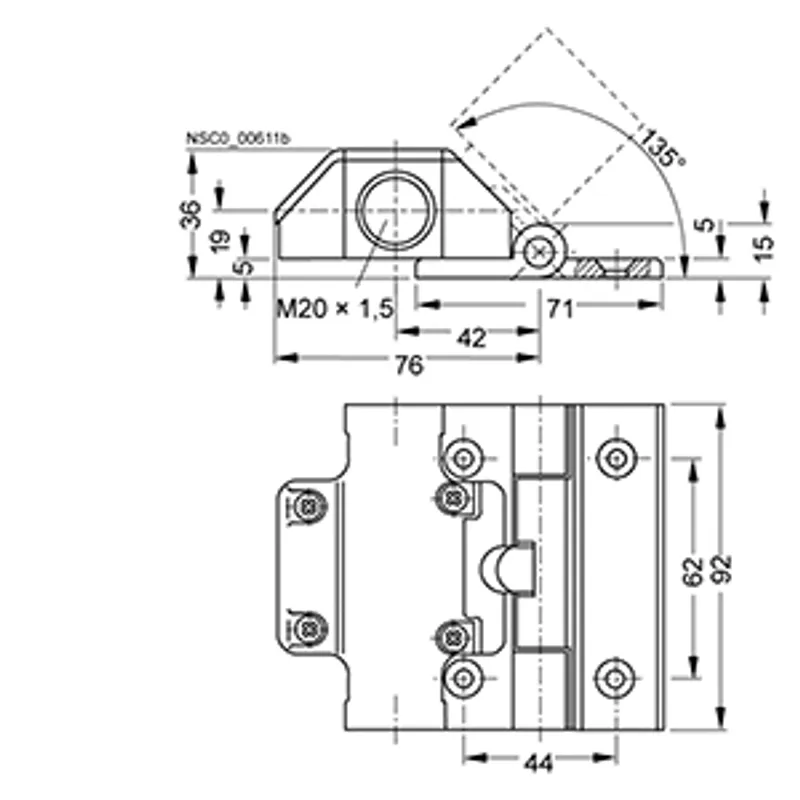

| length of the sensor | 92 mm |
| width of the sensor | 111.5 mm |
Ambient conditions
| ambient temperature — during operation | -25 ... +65 °C |
| explosion protection category for dust | none |
| design of the switching contact | mechanical |

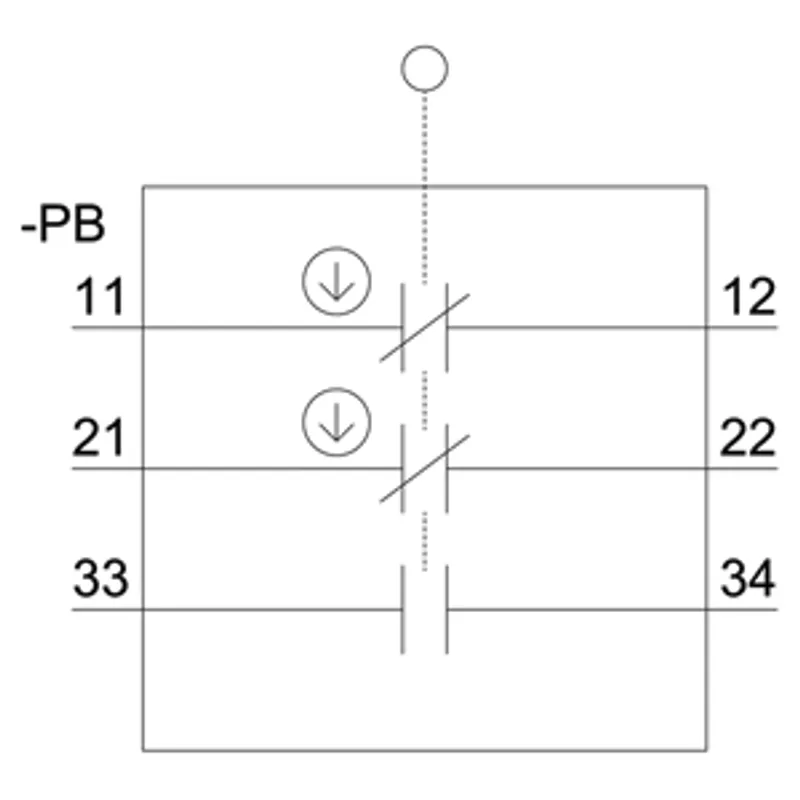

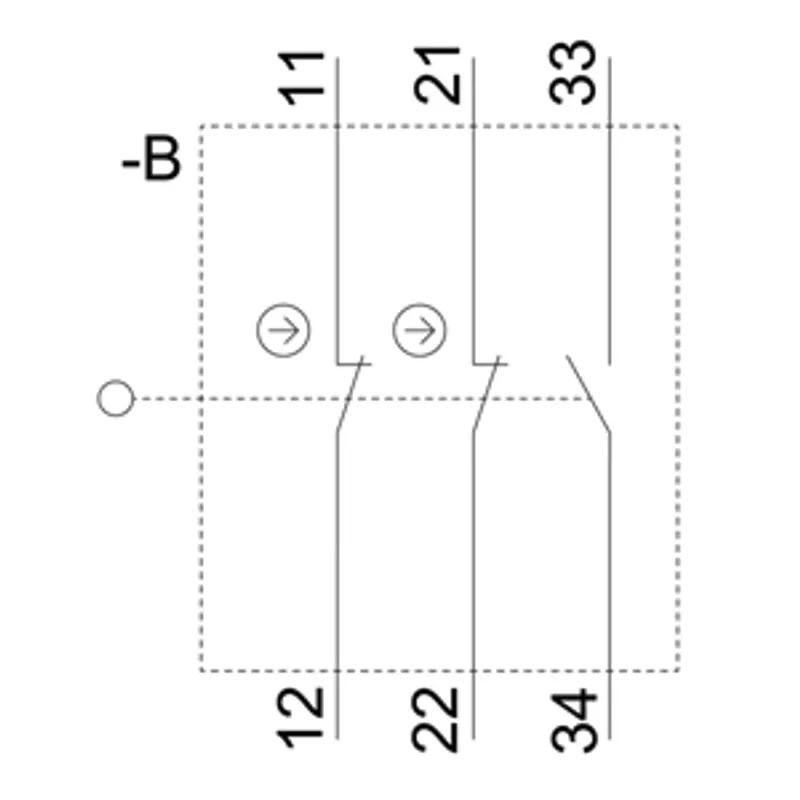

| number of NC contacts for auxiliary contacts | 2 |
| number of NO contacts for auxiliary contacts | 1 |
| operational current at AC-15 — at 125 V rated value | 4.2 A |
| operational current at AC-15 — at 230 V rated value | 2 A |
| operational current at DC-13 — at 24 V rated value | 1 A |
Enclosure
| design of the housing | special design |
| material of the enclosure | glass fiber reinforced thermoplast |
| coating of the enclosure | none |
| design of the housing according to standard | No |
Drive Head
| design of the actuating element | rotary actuator |
| design of the switching function | positive opening |
| circuit principle | slow-action contacts |
| number of switching contacts safety-related | 2 |
| cable entry type | 2x (M20 x 1.5) |
Installation/ mounting/ dimensions
| fastening method | screw fixing |
Connections/ Terminals
| type of electrical connection | screw terminal |
| type of connectable conductor cross-sections — finely stranded with core end processing | 1x (0,5 ... 1 mm²) |
| design of the interface for safety-related communication | without |
Communication/ Protocol
| design of the interface | without |
