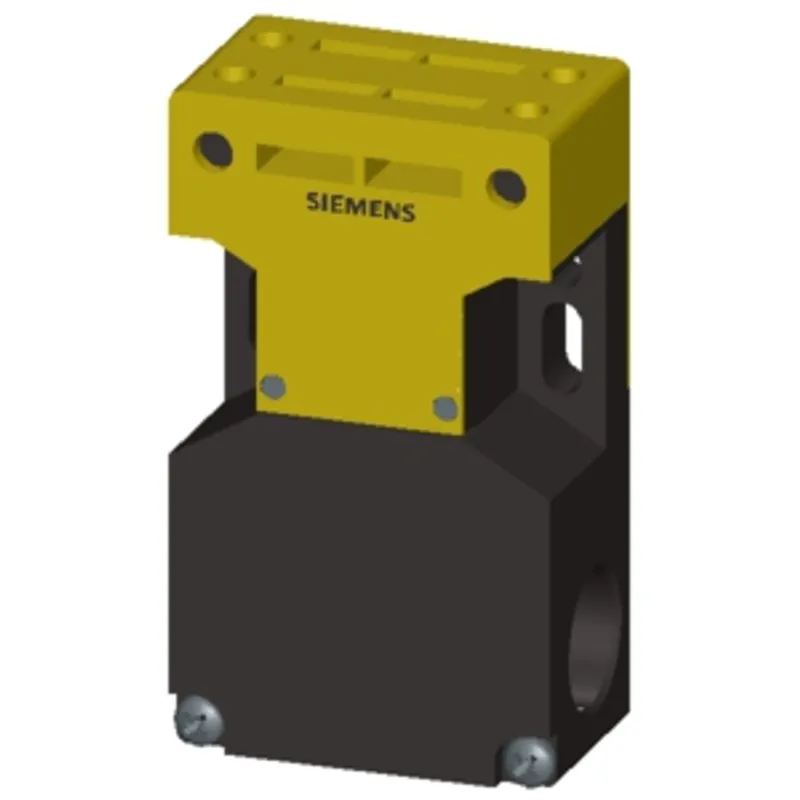

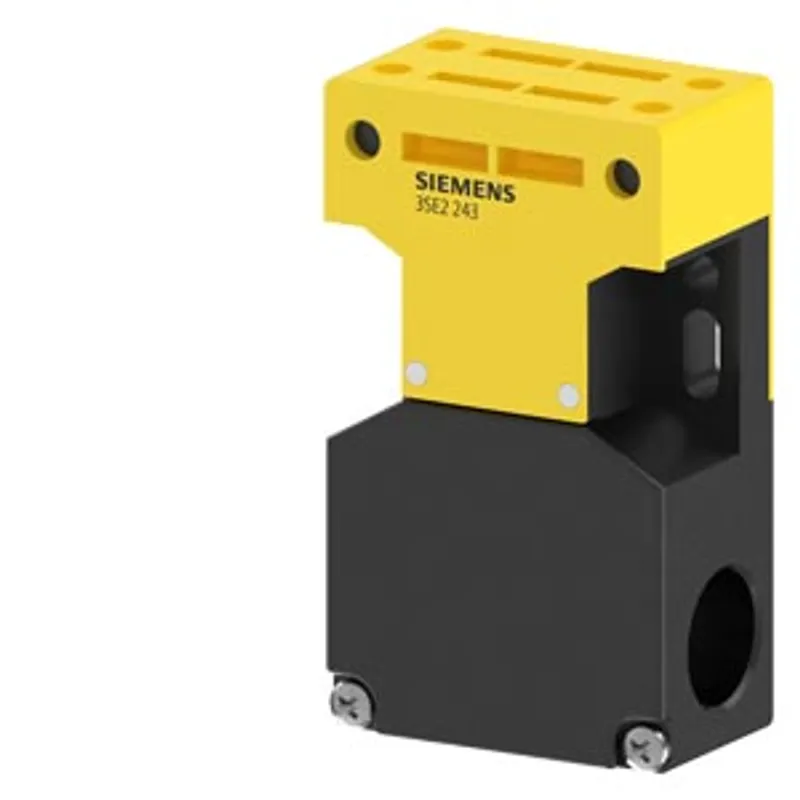

Siemens 3SE2243-0XX30
Safety position switch with separate actuator Molded-plastic enclosure lateral and face-end Slow-action…
- MPN
- 3SE2243-0XX30
- Category
- Enclosure width 52 mm
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the Siemens 3SE2243-0XX30?
Safety position switch with separate actuator Molded-plastic enclosure lateral and face-end Slow-action contacts 1 NO+2 NC, 3 x (M20 x 1.5) with automatic ejection Supplied without actuator
Specifications
General
| product brand name | SIRIUS |
| product designation | safety position switch |
| product type designation | 3SE22 |
General technical data
| insulation voltage rated value | 500 V |
| surge voltage resistance rated value | 6 kV |
| protection class IP | IP67 |
| mechanical service life (operating cycles) typical | 1 000 000 |
| thermal current | 10 A |
| reference code according to IEC 81346-2 | B |
| active principle | mechanical |
| Substance Prohibitance (day/month/year) | 07/01/2006 |
| SVHC substance name | Lead CAS-No. 7439-92-1 |
| Net Weight | 0.14 kg |

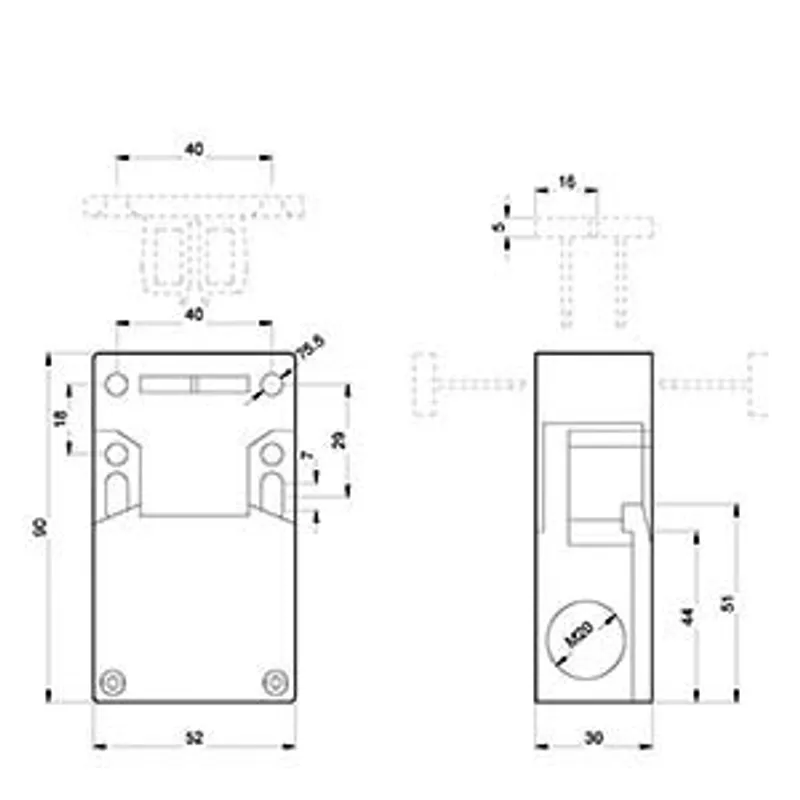

| length of the sensor | 90 mm |
| width of the sensor | 52 mm |
Ambient conditions
| ambient temperature — during operation | -30 ... +80 °C |
| ambient temperature — during storage | -30 ... +80 °C |
| explosion protection category for dust | none |
| design of the switching contact | mechanical |
| operating frequency rated value | 60 ... 50 Hz |
| number of NC contacts for auxiliary contacts | 2 |
| number of NO contacts for auxiliary contacts | 1 |
| operational current at AC-15 — at 230 V rated value | 4 A |
| operational current at DC-13 — at 24 V rated value | 4 A |
Enclosure
| design of the housing | wide |
| material of the enclosure | glass fiber reinforced thermoplast |
| coating of the enclosure | Other types |
| design of the housing according to standard | No |
Drive Head
| design of the actuating element | without |
| design of the switching function | positive opening |
| circuit principle | slow-action contacts |
| number of switching contacts safety-related | 2 |
| cable entry type | 3x (M20 x 1.5) |
Installation/ mounting/ dimensions
| mounting position | any |
| fastening method | screw fixing |
Connections/ Terminals
| type of electrical connection | screw terminal |
| type of connectable conductor cross-sections — solid | 2x (0.75 ... 2.5 mm²) |
| type of connectable conductor cross-sections — finely stranded with core end processing | 2x (0.75 ... 2.5 mm²) |
| design of the interface for safety-related communication | without |
Communication/ Protocol
| design of the interface | without |
