with integrated hinge Parts
Compare with integrated hinge
Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.
| MPN | Net Weight | number of NC contacts for auxiliary contacts | number of NO contacts for auxiliary contacts | number of switching contacts safety-related |
|---|---|---|---|---|

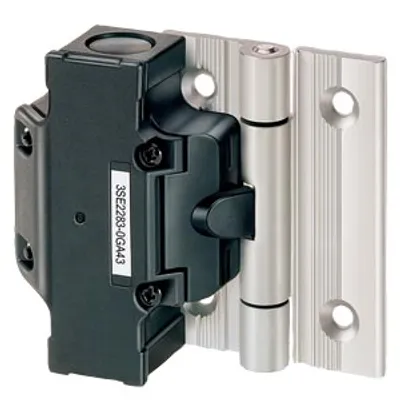

| 3SE2283-6GA53 | 422 g | 3 | 0 | 3 |
| 3SE2283-0GA43 | 0.435 kg | 2 | 1 | 2 |
| 3SE2283-0GA53 | 0.426 kg | 2 | 1 | 2 |
Common to all listed parts
| product designation | Safety hinge switches |
| product type designation | 3SE228 |
| product function positive opening | Yes |
| insulation voltage rated value | 250 V |
| surge voltage resistance rated value | 4 kV |
| protection class IP | IP65 |
| shock resistance | 30g / 18 ms |
| vibration resistance | 10 ... 200 Hz: 20g |
