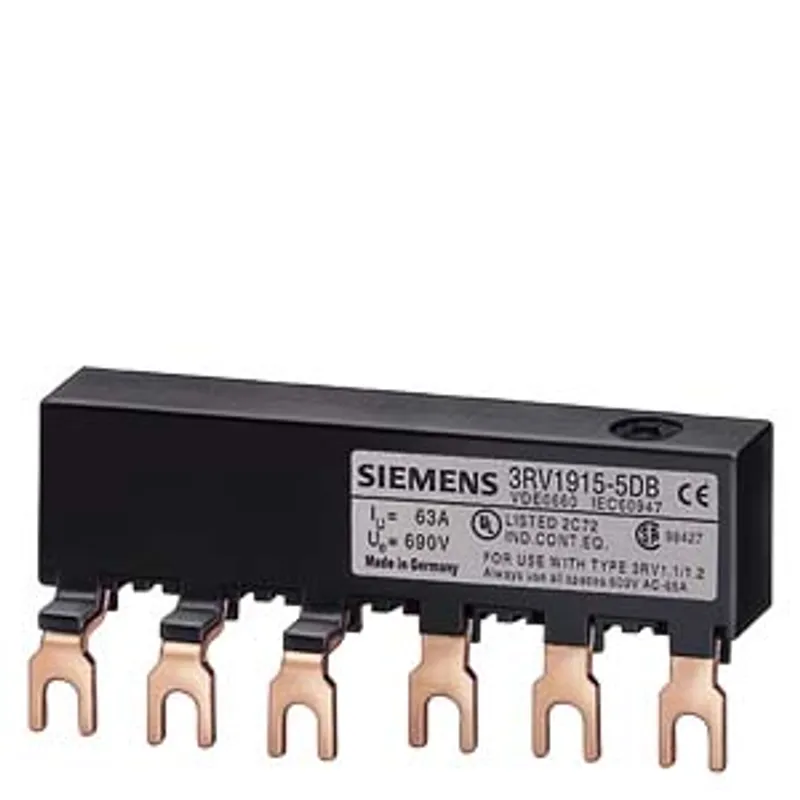

Siemens 3RV1915-5DB
Connecting piece for 3-phase busbar Modular spacing 45 mm
- MPN
- 3RV1915-5DB
- Category
- Busbar accessories
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the Siemens 3RV1915-5DB?
Connecting piece for 3-phase busbar Modular spacing 45 mm
Specifications
General
| product brand name | SIRIUS |
| product category | Infeed systems |
| product designation | Connecting piece |
| product type designation | 3RV19 |
| suitability for use | circuit-breakers 3RV2 |
General technical data
| size of the circuit-breaker | S00, S0 |
| protection class IP on the front according to IEC 60529 | IP20 |
| Substance Prohibitance (day/month/year) | 07/01/2006 |
| Net Weight | 0.045 kg |
| number of poles for main current circuit | 3 |
| operational current rated value | 63 A |
| protection class IP on the front according to IEC 60529 | IP20 |
| touch protection on the front according to IEC 60529 | finger-safe, for vertical contact from the front |
Connections/ Terminals
| type of electrical connection for main current circuit | screw-type terminals |
Approvals Certificates
| global warming potential [CO2 eq] / during manufacturing | 0.405 kg |
| global warming potential [CO2 eq] / during operation | 18.7 kg |
| global warming potential [CO2 eq] / after end of life | -0.0764 kg |
| global warming potential [CO2 eq] / total | 19.1 kg |
Downloads & documentation
Official documents from Siemens, downloaded directly from the manufacturer.
Data sheets & manuals
3RV1915-5DB: frequently asked questions
When can 3RV1915-5DB be shipped?
3RV1915-5DB is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up 3RV1915-5DB in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for 3RV1915-5DB and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 3RV1915-5DB, subject to availability and destination.
