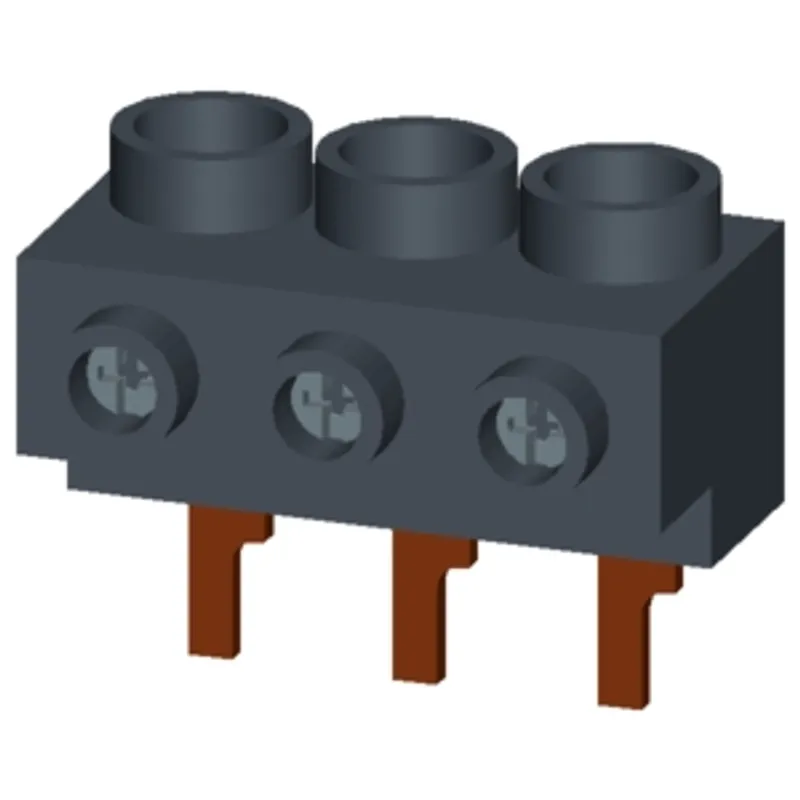

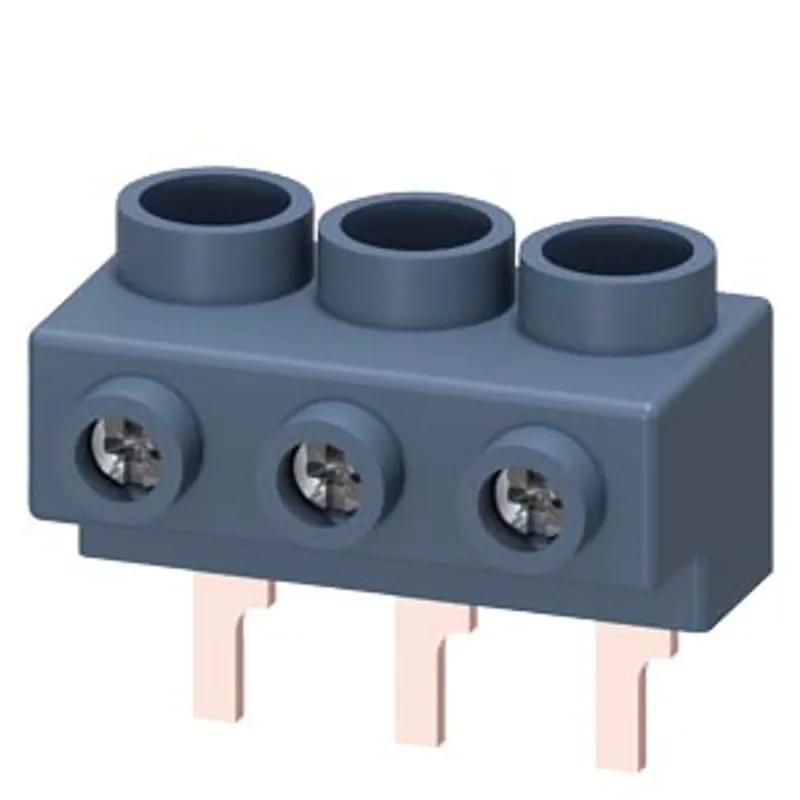

Siemens 3RV1915-5A

3-phase supply terminal for 3-phase busbar for size S0 and S00 connection from top Pin shape connections

MPN: 3RV1915-5A
Category: Busbar accessories

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Siemens parts? We buy surplus →

What is the Siemens 3RV1915-5A?

3-phase supply terminal for 3-phase busbar for size S0 and S00 connection from top Pin shape connections

Specifications

General technical data

certificate of suitability	CE / UL / CSA / CCC
size of the circuit-breaker	S00, S0
insulation voltage with degree of pollution 3 at AC rated value	690 V
protection class IP on the front according to IEC 60529	IP20
Substance Prohibitance (day/month/year)	07/01/2006
Net Weight	42 g
ampacity maximum	63 A

Ambient conditions

ambient temperature – during operation	-20 ... +60 °C
ambient temperature – during storage	-50 ... +80 °C
protection class IP on the front according to IEC 60529	IP20
touch protection on the front according to IEC 60529	finger-safe, for vertical contact from the front

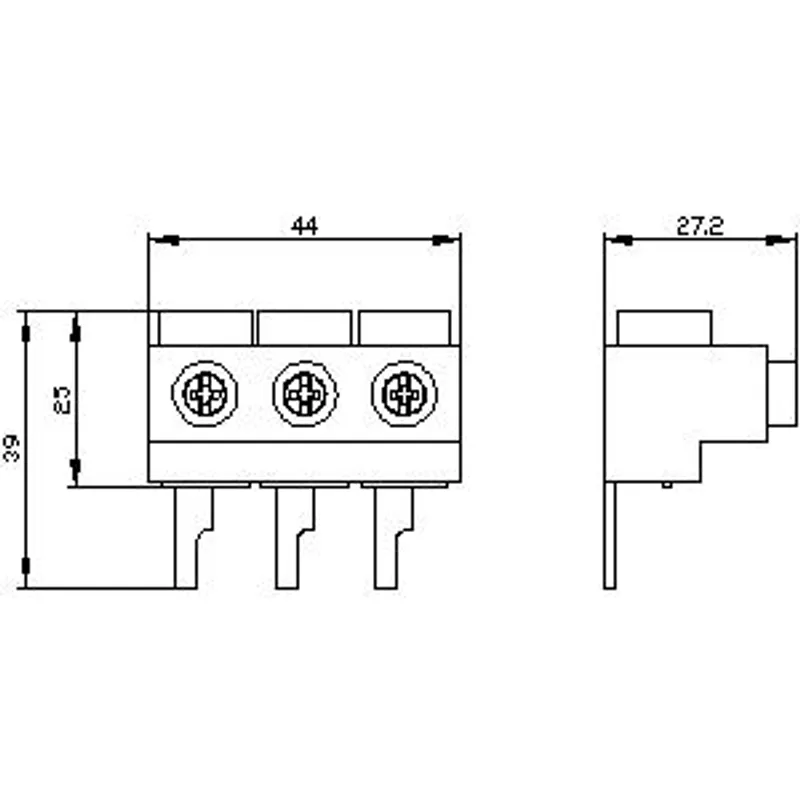

Installation/ mounting/ dimensions

height	24 mm
width	44 mm
depth	25 mm

Connections/ Terminals

type of electrical connection for main current circuit	screw-type terminals
for main contacts – — solid	1x (2.5 ... 25 mm²)
for main contacts – — stranded	1x (2.5 ... 25 mm²)
for main contacts – — finely stranded with core end processing	1x (4 ... 16 mm²)
for main contacts – for AWG cables for main contacts	1x (12 ... 4)
connectable conductor cross-section for main contacts – solid or stranded	2.5 ... 25 mm²
connectable conductor cross-section for main contacts – stranded	2.5 ... 25 mm²
connectable conductor cross-section for main contacts – finely stranded with core end processing	4 ... 16 mm²
AWG number as coded connectable conductor cross section for main contacts	12 ... 4
