Siemens 3RV1915-5A-Z X92 – 3-phase supply terminal for 3-phase busbar for size S0 and…

Name: Siemens 3RV1915-5A-Z X92 – 3-phase supply terminal for 3-phase busbar for size S0 and…
Brand: Siemens
SKU: 3RV1915-5A-Z X92

MPN: 3RV1915-5A-Z X92 · Brand: Siemens

Price on request

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)

30-day returns, no restocking fee on unused parts

Ships via

Quick facts

Availability	Confirmed on request
Category	Circuit Protection & Switching
Lifecycle	Active
Warranty	12-month (new) · 3-month (used/refurbished)
Weight	0.04 kg
Datasheet	Manufacturer datasheet ↗

Shipping & availability

When can 3RV1915-5A-Z X92 be shipped?

3RV1915-5A-Z X92 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up 3RV1915-5A-Z X92 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for 3RV1915-5A-Z X92 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 3RV1915-5A-Z X92, subject to availability and destination.

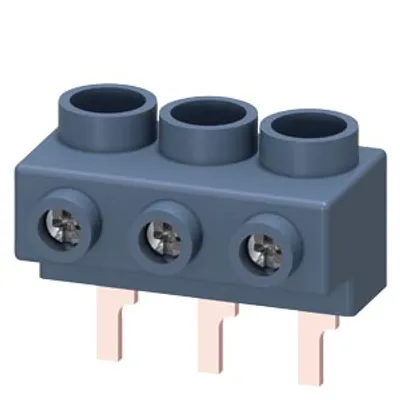

3-phase supply terminal for 3-phase busbar for size S0 and S00 connection from top Pin shape connections Multi-unit packaging Pack = 70 units

Specifications

General technical data

certificate of suitability	CE / UL / CSA / CCC
size of the circuit-breaker	S00, S0
insulation voltage with degree of pollution 3 at AC rated value	690 V
protection class IP on the front according to IEC 60529	IP20
Substance Prohibitance (day/month/year)	07/01/2006
Net Weight	42 g
ampacity maximum	63 A

Ambient conditions

ambient temperature – during operation	-20 ... +60 °C
ambient temperature – during storage	-50 ... +80 °C
protection class IP on the front according to IEC 60529	IP20
touch protection on the front according to IEC 60529	finger-safe, for vertical contact from the front

Installation/ mounting/ dimensions

height	24 mm
width	44 mm
depth	25 mm

Connections/ Terminals

type of electrical connection for main current circuit	screw-type terminals
for main contacts – — solid	1x (2.5 ... 25 mm²)
for main contacts – — stranded	1x (2.5 ... 25 mm²)
for main contacts – — finely stranded with core end processing	1x (4 ... 16 mm²)
for main contacts – for AWG cables for main contacts	1x (12 ... 4)
connectable conductor cross-section for main contacts – solid or stranded	2.5 ... 25 mm²
connectable conductor cross-section for main contacts – stranded	2.5 ... 25 mm²
connectable conductor cross-section for main contacts – finely stranded with core end processing	4 ... 16 mm²
AWG number as coded connectable conductor cross section for main contacts	12 ... 4
