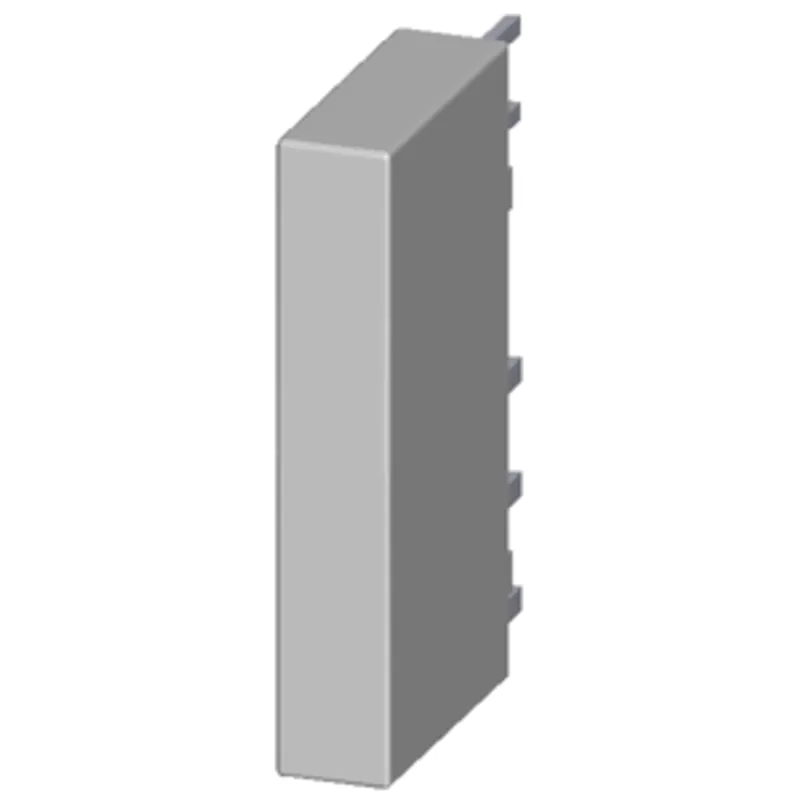

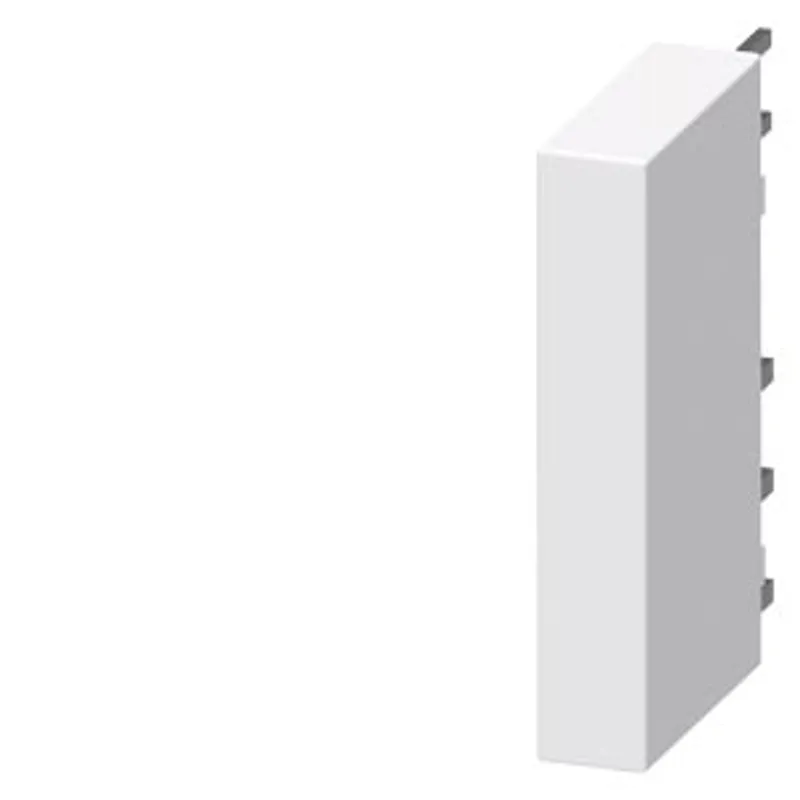

Siemens 3RQ4914-7BP02
Relay, 1 change-over contact, 60 V DC
- MPN
- 3RQ4914-7BP02
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the Siemens 3RQ4914-7BP02?
relay, 1 change-over contact, 60 V DC,
Specifications
General
| product brand name | SIRIUS |
| product designation | Replacement relay |
| design of the product | replacement relay for coupling relay with plug-in relay 115-230 V AC/DC (3RQ4118-. AE01,3RQ4118-. AF01) |
| product type designation | 3RQ4 |
General technical data
| display version LED | No |
| product component — relay output | Yes |
| flammability class of enclosure material | UL94 V-0 |
| switching behavior | monostable |
| reference code according to IEC 81346-2 | K |
| Substance Prohibitance (day/month/year) | 09/26/2024 |
| Net Weight | 5 g |
Switching Function
| design of the switching function positively driven | No |
Mechanical data
| product component plug-in socket | No |
Auxiliary circuit
| type of switching contact | Change-over contact |
| material of contact coating | other |
| material of switching contacts | AgSnO2 |
| material of the contact insert | Thermoplastic |
| number of NC contacts for auxiliary contacts | 0 |
| number of NO contacts for auxiliary contacts | 0 |
| number of CO contacts for auxiliary contacts | 1 |
Main circuit
| type of voltage | DC |
Connections/ Terminals
| product function removable terminal | No |
| type of electrical connection | spring-loaded terminals |
| type of electrical connection — for auxiliary and control circuit | spring-loaded terminals (push-in) |
Installation/ mounting/ dimensions
| height | 93 mm |
| width | 6.2 mm |
| depth | 84.5 mm |
Ambient conditions
| relative humidity during operation | 10 ... 95 % |
