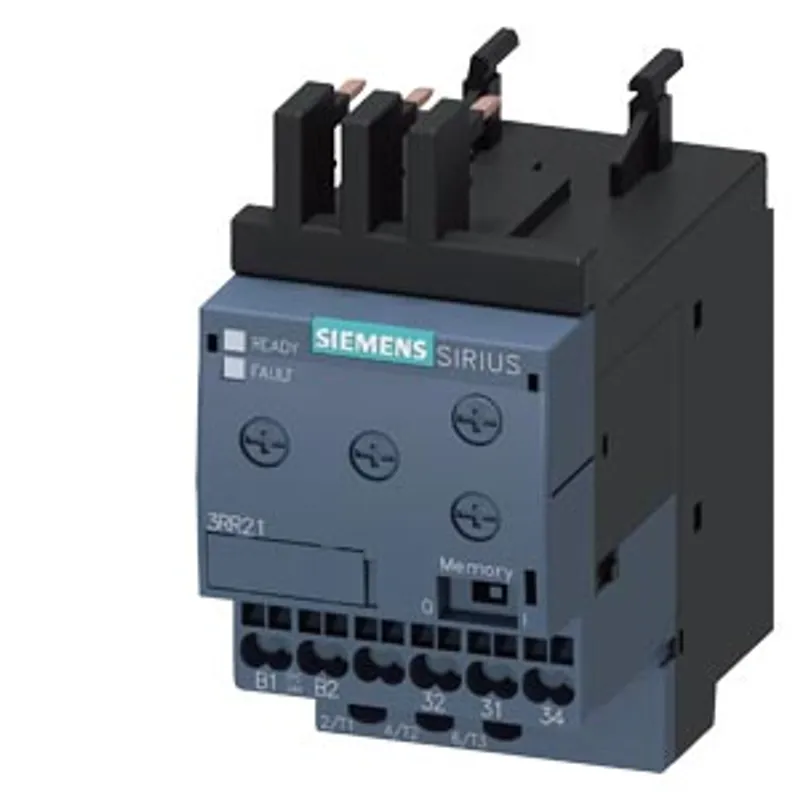

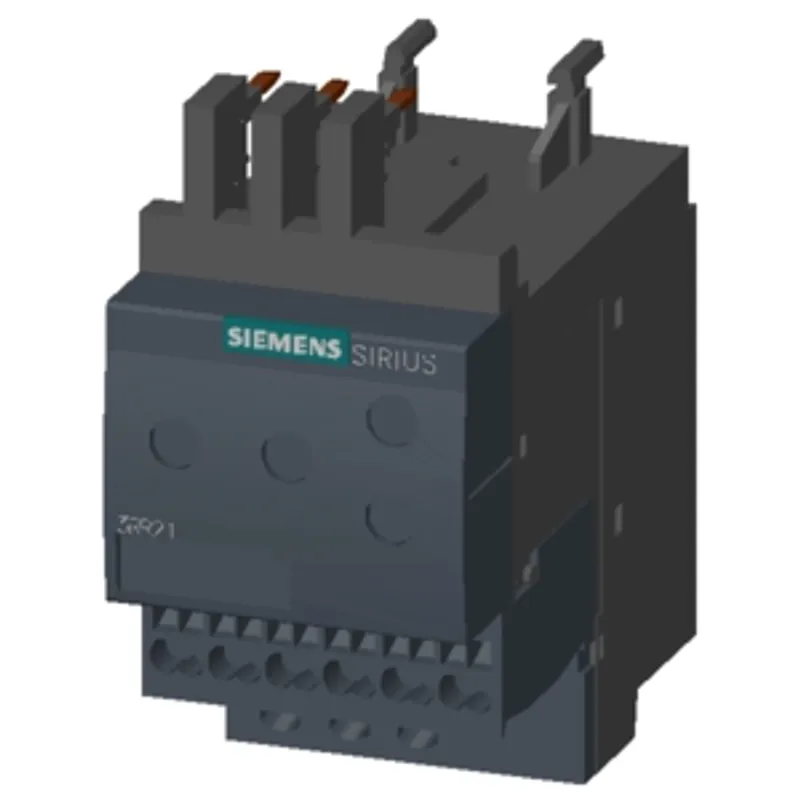

Siemens 3RR2141-2AW30

Monitoring relay, can be mounted to Contactor 3RT2, Size S00 basic

MPN: 3RR2141-2AW30
Category: Current and active current monitoring

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Siemens parts? We buy surplus →

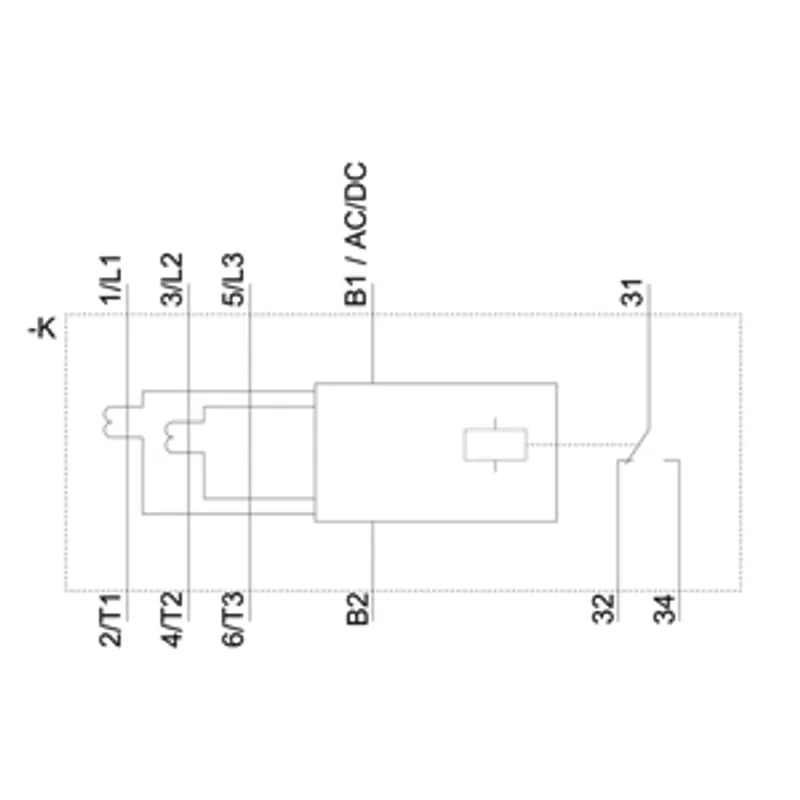

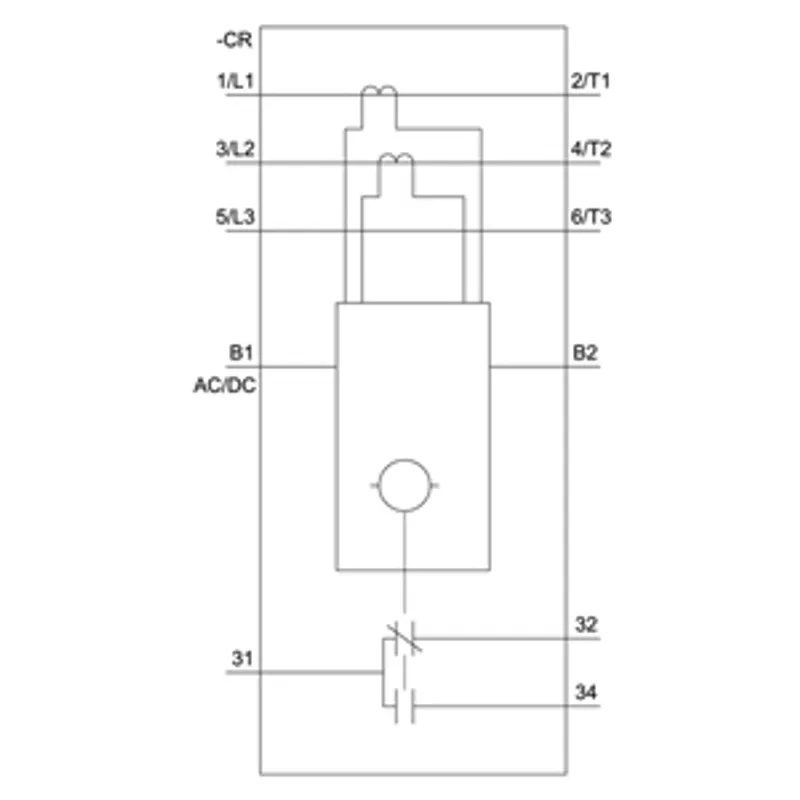

What is the Siemens 3RR2141-2AW30?

Monitoring relay, can be mounted to Contactor 3RT2, Size S00 basic, analog adjustment Apparent current monitoring 1.6-16 A, 20-400 Hz, 2-phase Supply 24-240 V AC/DC 1 change-over contact Monitoring for Current overshoot and undershoot Phase failure, Cable break with or without fault buffer ON delay 0-60 s Noise pulse suppression 0-30 s Switching hysteresis 6% spring-type connection system

Specifications

General

product brand name	SIRIUS
product designation	Monitoring relays
design of the product	analogically adjustable, 2-phase current monitoring
product type designation	3RR21

General technical data

size of contactor can be combined company-specific	S00
product function	current monitoring
operating apparent power rated value	4 V·A
insulation voltage for overvoltage category III according to IEC 60664 — with degree of pollution 3 rated value	690 V
type of voltage of the operating voltage for actuation	AC/DC
surge voltage resistance rated value	6 kV
consumed current — at 24 V	90 mA
consumed current — at 240 V	12 mA
protection class IP — on the front	IP20
protection class IP — of the terminal	IP20
shock resistance	15 g / 11 ms
vibration resistance	10 ... 55 Hz / 0.35 mm
mechanical service life (operating cycles) typical	10 000 000
electrical endurance (operating cycles) at AC-15 at 230 V typical	100 000
reference code according to IEC 81346-2	K
relative repeat accuracy	2 %
Substance Prohibitance (day/month/year)	10/01/2009
SVHC substance name	Lead CAS-No. 7439-92-1 Lead monoxide (lead oxide) CAS-No. 1317-36-8 2-methyl-1-(4-methylthiophenyl)-2-morpholinopropan-1-one CAS-No. 71868-10-5 Melamine CAS-No. 108-78-1 6,6'-di-tert-butyl-2,2'-methylenedi-p-cresol CAS-No. 119-47-1
Net Weight	0.219 kg

Control circuit/ Control

control supply voltage at AC — at 50 Hz rated value	24 ... 240 V
control supply voltage at AC — at 60 Hz rated value	24 ... 240 V
control supply voltage at DC rated value	24 ... 240 V

Supply voltage

type of voltage of the supply voltage	AC/DC
supply voltage 1 at AC — at 50 Hz	24 ... 240 V
supply voltage 1 at AC — at 60 Hz	24 ... 240 V
supply voltage 1 at DC	24 ... 240 V
supply voltage frequency 1	50 ... 60 Hz

Measuring circuit

type of current for monitoring	AC
adjustable current response value current — 1	1.6 ... 16 A
adjustable current response value current — 2	1.6 ... 16 A
adjustable response delay time — when starting	0 ... 60 s
adjustable response delay time — with lower or upper limit violation	0 ... 30 s

Precision

temperature drift per °C

0.1 %/°C

Short-circuit protection

design of the fuse link for short-circuit protection of the auxiliary switch required

fuse gG: 4 A

Communication/ Protocol

protocol is supported IO-Link protocol	No
type of voltage supply via input/output link master	No

Auxiliary circuit

number of CO contacts — for auxiliary contacts	1
number of CO contacts — delayed switching	1
operational current of auxiliary contacts at AC-15 — at 24 V	3 A
operational current of auxiliary contacts at AC-15 — at 230 V	3 A
operational current of auxiliary contacts at AC-15 — at 400 V	3 A
operational current of auxiliary contacts at DC-13 — at 24 V	1 A
operational current of auxiliary contacts at DC-13 — at 125 V	0.2 A
operational current of auxiliary contacts at DC-13 — at 250 V	0.1 A
contact rating of auxiliary contacts according to UL	B300 / R300

Main circuit

operating power rated value	2.5 W
ampacity of the semiconductor output in SIO mode	20 mA
operational current at 17 V minimum	5 mA

Electromagnetic compatibility

EMC emitted interference according to IEC 60947-1	ambience A (industrial sector)
EMC immunity according to IEC 60947-1	ambience A (industrial sector)

Safety related data

product function suitable for safety function	No
protection class IP on the front according to IEC 60529	IP20

Connections/ Terminals

product component removable terminal for main circuit	No
product component removable terminal for auxiliary and control circuit	Yes
type of electrical connection	spring-type terminals
type of electrical connection — for main current circuit	spring-loaded terminals
type of electrical connection — for auxiliary and control circuit	spring-loaded terminals
type of connectable conductor cross-sections for main contacts — solid	1x (0.5 ... 4 mm²)
type of connectable conductor cross-sections for main contacts — finely stranded with core end processing	1x (0.5 ... 2.5 mm²)
type of connectable conductor cross-sections for main contacts — finely stranded without core end processing	1x (0.5 ... 2.5 mm²)
connectable conductor cross-section for main contacts — solid or stranded	0.5 ... 4 mm²
connectable conductor cross-section for main contacts — finely stranded with core end processing	2.5 mm²
connectable conductor cross-section for main contacts — finely stranded without core end processing	0.5 ... 2.5 mm²
type of connectable conductor cross-sections — for auxiliary contacts — solid	1x (0.5 ... 4 mm²), 2x (0.5 ... 2.5 mm²)
type of connectable conductor cross-sections — for auxiliary contacts — finely stranded with core end processing	2x (0.25 ... 1.5 mm²)
type of connectable conductor cross-sections — for auxiliary contacts — finely stranded without core end processing	2x (0.25 ... 1.5 mm²)
type of connectable conductor cross-sections — for AWG cables for auxiliary contacts	2x (24 ... 16)
AWG number as coded connectable conductor cross section for main contacts	20 ... 12
tightening torque with screw-type terminals	0.8 ... 1.2 N·m

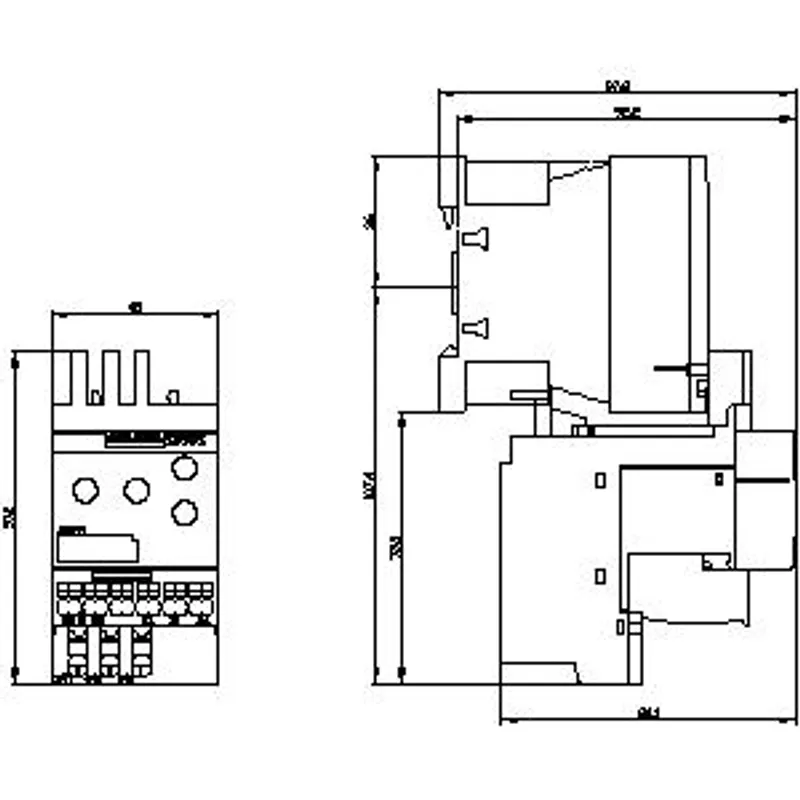

Installation/ mounting/ dimensions

mounting position	any
fastening method	direct mounting
height	90 mm
width	45 mm
depth	80 mm
required spacing — with side-by-side mounting — forwards	0 mm
required spacing — with side-by-side mounting — backwards	0 mm
required spacing — with side-by-side mounting — upwards	0 mm
required spacing — with side-by-side mounting — downwards	0 mm
required spacing — with side-by-side mounting — at the side	0 mm
required spacing — for grounded parts — forwards	6 mm
required spacing — for grounded parts — backwards	0 mm
required spacing — for grounded parts — upwards	0 mm
required spacing — for grounded parts — at the side	6 mm
required spacing — for grounded parts — downwards	0 mm
required spacing — for live parts — forwards	6 mm
required spacing — for live parts — backwards	0 mm
required spacing — for live parts — upwards	0 mm
required spacing — for live parts — downwards	0 mm
required spacing — for live parts — at the side	6 mm

Ambient conditions

installation altitude at height above sea level maximum	2 000 m
ambient temperature — during operation	-25 ... +60 °C
ambient temperature — during storage	-40 ... +80 °C
