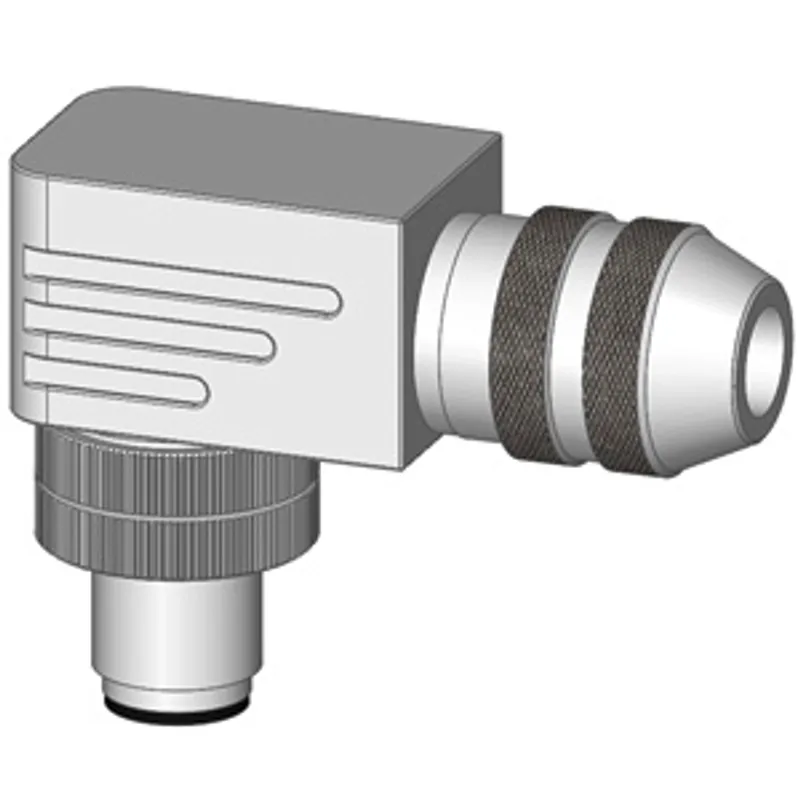

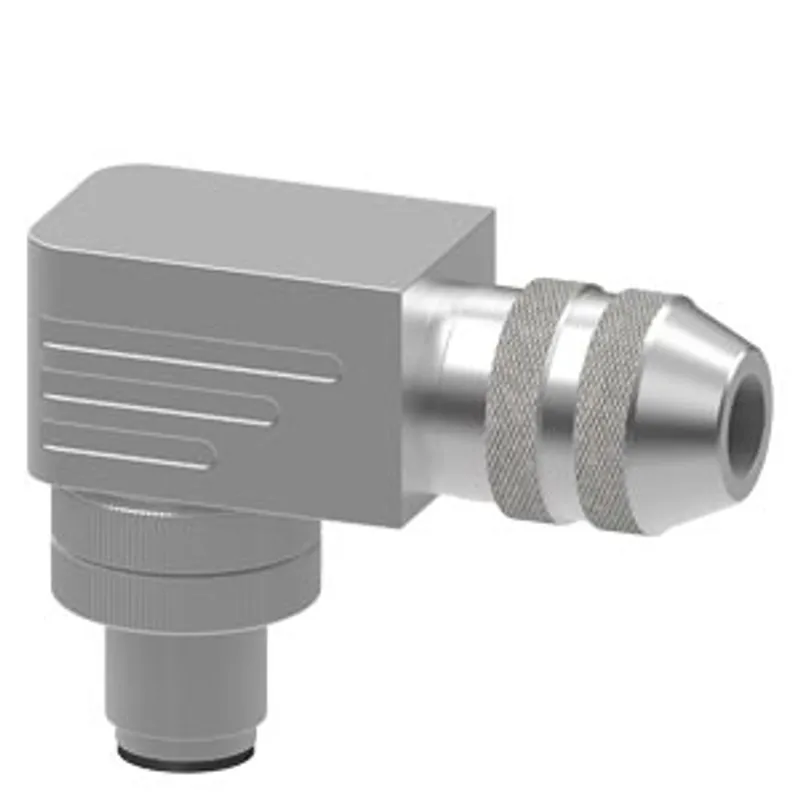

Siemens 3RK1902-2DA00
Connector for PROFINET 4-core, shielded
- MPN
- 3RK1902-2DA00
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the Siemens 3RK1902-2DA00?
Connector for PROFINET 4-core, shielded
Specifications
General technical data
| ampacity per pin maximum | 4 A |
| operating voltage maximum | 250 V |
| flow resistance maximum | 3 Ω·m |
Mechanical data
| type of connection technology | Screw terminals |
| connector type | Pin |
| connector coding of the M12 circular connector | D |
| type of cable outlet | angled |
| number of poles | 4 |
| connectable conductor cross-section for flexible conductor maximum | 0.75 mm² |
| diameter of inlet opening | 6 ... 8 mm |
| material — of the contact | Brass |
| material — of contact coating | Gold |
| material — of connector fixed part | Polyamide |
| material — of the enclosure | Zinc diecast, nickel-plated |

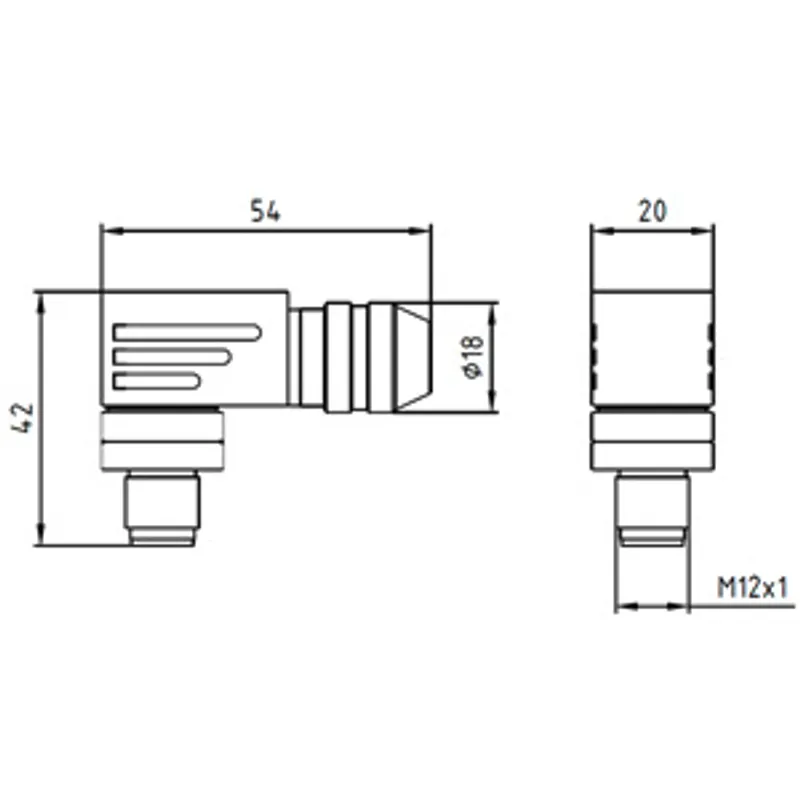

| depth | 20 mm |
| height | 54 mm |
| width | 43 mm |
| type of strain relief | Pressure screw, pinch ring |
| mechanical service life (mating cycles) | 100 |
| type of plug interlock | M12 x 1 thread |
Connections/ Terminals
| type of connection technology | Screw terminals |
| ampacity per pin maximum | 4 A |
Ambient conditions
| ambient temperature — during storage | -25 ... +85 °C |
| ambient temperature — during operation | -25 ... +85 °C |
| protection class IP | IP67 |
| chemical resistance — to mineral oil | conditional, must be checked relative to the application |
| chemical resistance — to water | conditional, must be checked relative to the application |
| chemical resistance — to grease | conditional, must be checked relative to the application |
Certificates/ approvals
| certificate of suitability — CSA approval | No |
| certificate of suitability — RoHS conformity | Yes |
| certificate of suitability — UL approval | No |
| certificate of suitability — CCC | No |
| certificate of suitability — IEC approval | No |
| certificate of suitability — cUL approval | No |
| certificate of suitability — C-Tick | No |
Downloads & documentation
Official documents from Siemens, downloaded directly from the manufacturer.
Data sheets & manuals
3RK1902-2DA00: frequently asked questions
When can 3RK1902-2DA00 be shipped?
3RK1902-2DA00 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up 3RK1902-2DA00 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for 3RK1902-2DA00 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 3RK1902-2DA00, subject to availability and destination.
