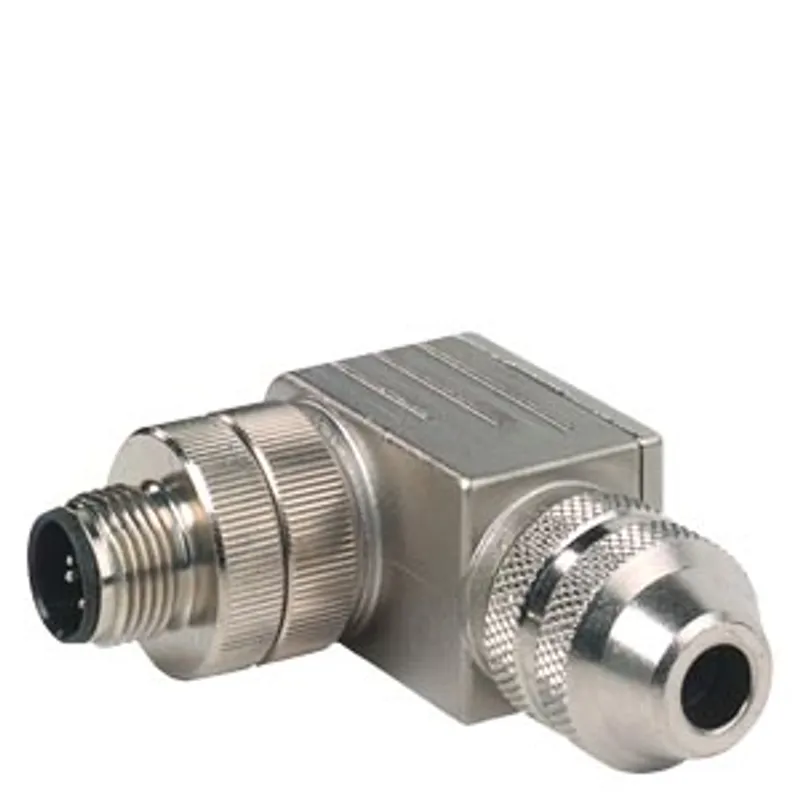

Siemens 3RK1902-1BA00
M12 plug, PROFIBUS angled, 5-pole, B-encoded screw terminal no terminating resistor integrated
- MPN
- 3RK1902-1BA00
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the Siemens 3RK1902-1BA00?
M12 plug, PROFIBUS angled, 5-pole, B-encoded screw terminal no terminating resistor integrated
Specifications
General technical data
| ampacity per pin maximum | 4 A |
| operating voltage maximum | 125 V |
| flow resistance maximum | 3 Ω·m |
| surge voltage resistance rated value | 0.8 kV |
Mechanical data
| type of connection technology | Screw terminals |
| connector type | Pin |
| connector coding of the M12 circular connector | B |
| type of cable outlet | angled |
| number of poles | 5 |
| connectable conductor cross-section for flexible conductor maximum | 0.75 mm² |
| diameter of inlet opening | 6 ... 8 mm |
| material — of the contact | Brass |
| material — of contact coating | Gold |
| material — of connector fixed part | Polyamide |
| material — of the enclosure | Zinc diecast, nickel-plated |
| depth | 20 mm |
| height | 54 mm |
| width | 43 mm |
| type of strain relief | Pressure screw, pinch ring |
| mechanical service life (mating cycles) | 100 |
| type of plug interlock | M12 x 1 thread |
Connections/ Terminals
| type of connection technology | Screw terminals |
| ampacity per pin maximum | 4 A |
Ambient conditions
| ambient temperature — during storage | -25 ... +85 °C |
| ambient temperature — during operation | -25 ... +85 °C |
| protection class IP | IP67 |
| chemical resistance — to mineral oil | conditional, must be checked relative to the application |
| chemical resistance — to water | conditional, must be checked relative to the application |
| chemical resistance — to grease | conditional, must be checked relative to the application |
| degree of pollution | 3 |
Certificates/ approvals
| certificate of suitability — CSA approval | No |
| certificate of suitability — RoHS conformity | Yes |
| certificate of suitability — UL approval | No |
| certificate of suitability — CCC | No |
| certificate of suitability — IEC approval | No |
| certificate of suitability — cUL approval | No |
| certificate of suitability — C-Tick | No |
