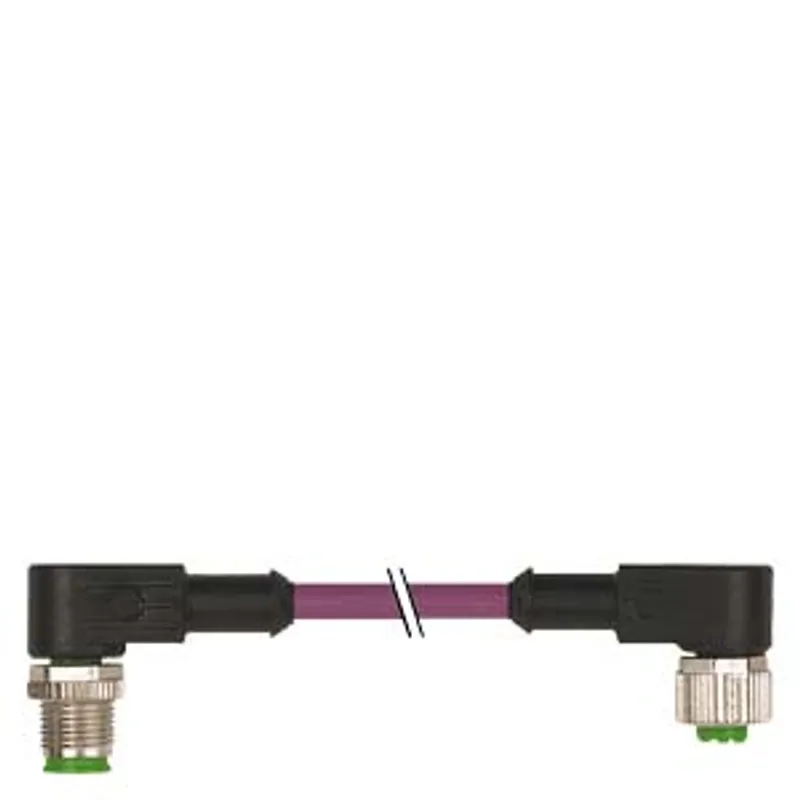

Siemens 3RK1902-1NC10
Bus cable for PROFIBUS assembled on both ends 2 x M12 angled 2-core, shielded Length 10 m angled
- MPN
- 3RK1902-1NC10
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the Siemens 3RK1902-1NC10?
Bus cable for PROFIBUS assembled on both ends 2 x M12 angled 2-core, shielded Length 10 m angled
Specifications
General technical data
| product description | M12 plug, angled on M12 socket, angled |
| wire length | 10 m |
| cable designation | BUS: 1P24-19/2,55 02YS(ST)C11Y |
General technical data
| ampacity per pin maximum | 4 A |
| operating voltage — at DC maximum | 60 V |
| operating voltage — at AC maximum | 60 V |
| surge voltage resistance rated value | 1.5 kV |
| impedance — at 9.6 kHz | 300 Ω |
| impedance — at 38.4 kHz | 185 Ω |
| impedance — at 3 MHz … 20 MHz | 150 Ω |
| symmetrical tolerance of wave impedance — at 38.4 kHz | 20 Ω |
| symmetrical tolerance of wave impedance — at 3 MHz … 20 MHz | 15 Ω |
| attenuation factor per length — at 9.6 kHz maximum | 3 dB/km |
| attenuation factor per length — at 38.4 kHz maximum | 5 dB/km |
| attenuation factor per length — at 4 MHz maximum | 26 dB/km |
| attenuation factor per length — at 16 MHz maximum | 52 dB/km |
Mechanical data
| connector type | Plug/socket |
| connector coding of the M12 circular connector | B |
| number of electrical cores | 2 |
| type of cable outlet | angled |
| number of poles | 2 |
| color — of cable sheath | Violet |
| color — of the insulation of data wires | Red, green |
| material — of cable sheath | Polyurethane |
| material — of the wire insulation | Polyethylene |
| material — of the enclosure | Thermoplastic polyurethane |
| design of the shield | Shielding braid of tinned copper wire |
| type of strain relief | molded |
| bending radius — with single bend minimum permissible | 58.5 mm |
| bending radius — with multiple bends minimum permissible | 78 mm |
| number of bending cycles | 5 000 000 |
| mechanical service life (mating cycles) | 100 |
| outer diameter — of inner conductor | 0.64 mm |
| outer diameter — of the cable | 7.8 mm |
| symmetrical tolerance of the outer diameter of the cable | 0.2 mm |
| conductor cross section rated value | 0.25 mm² |
| type of plug interlock | M12 x 1 thread |
| cable end components | populated on both sides |
Ambient conditions
| chemical resistance — to mineral oil | conditional, must be checked relative to the application |
| chemical resistance — to water | conditional, must be checked relative to the application |
| chemical resistance — to grease | conditional, must be checked relative to the application |
| degree of pollution | 3 |
Certificates/ approvals
| certificate of suitability — CSA approval | Yes |
| certificate of suitability — RoHS conformity | Yes |
| certificate of suitability — UL approval | Yes |
| certificate of suitability — CCC | No |
| certificate of suitability — IEC approval | Yes |
| certificate of suitability — cUL approval | No |
| certificate of suitability — C-Tick | No |
