Siemens 3RB2956-2TH2
Current transformer 20...200 A for 3RB22/23/24 Size S6 Contactor mounting/stand-alone installation Main…
- MPN
- 3RB2956-2TH2
- Category
- Circuit Protection & Switching
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback

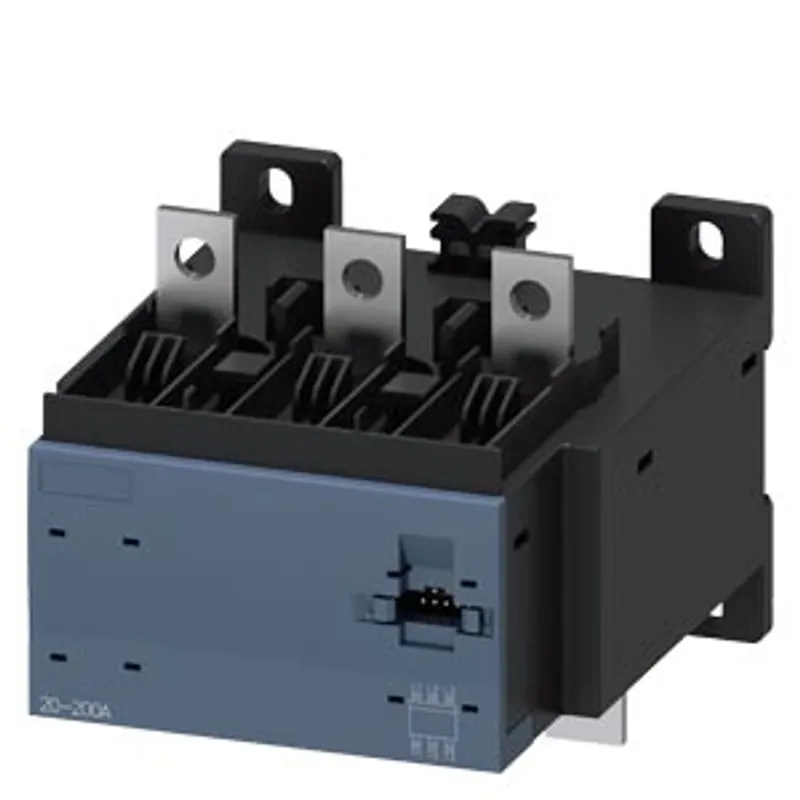

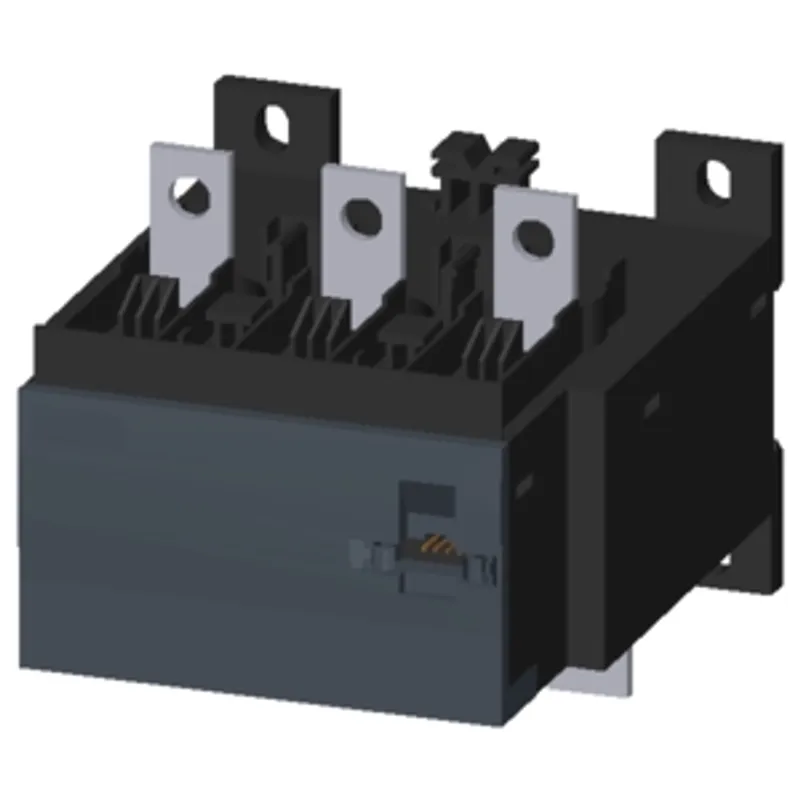

What is the Siemens 3RB2956-2TH2?
Current transformer 20...200 A for 3RB22/23/24 Size S6 Contactor mounting/stand-alone installation Main circuit: busbar connection Auxiliary circuit: --
Specifications
General
| product brand name | SIRIUS |
| product designation | Current measuring module |
| product type designation | 3RB29 |
General technical data
| Substance Prohibitance (day/month/year) | 07/01/2006 |
| SVHC substance name | Lead monoxide (lead oxide) CAS-No. 1317-36-8 2-methyl-1-(4-methylthiophenyl)-2-morpholinopropan-1-one CAS-No. 71868-10-5 Melamine CAS-No. 108-78-1 |
| Net Weight | 0.881 kg |
Main circuit
| adjustable current response value current of the current-dependent overload release | 20 ... 200 A |
| operating voltage — at AC-3e rated value maximum | 1 000 V |
| operational current rated value | 200 A |
| operational current at AC-3e at 400 V rated value | 200 A |
Installation/ mounting/ dimensions
| fastening method | Contactor mounting/stand-alone installation |
Connections/ Terminals
| type of electrical connection — for main current circuit | screw-type terminals |
| protection class IP on the front according to IEC 60529 | IP00; IP20 with box terminal/cover |
| touch protection on the front according to IEC 60529 | finger-safe, for vertical contact from the front with box terminal/cover |
Downloads & documentation
Official documents from Siemens, downloaded directly from the manufacturer.
Data sheets & manuals
3RB2956-2TH2: frequently asked questions
When can 3RB2956-2TH2 be shipped?
3RB2956-2TH2 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up 3RB2956-2TH2 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for 3RB2956-2TH2 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 3RB2956-2TH2, subject to availability and destination.
