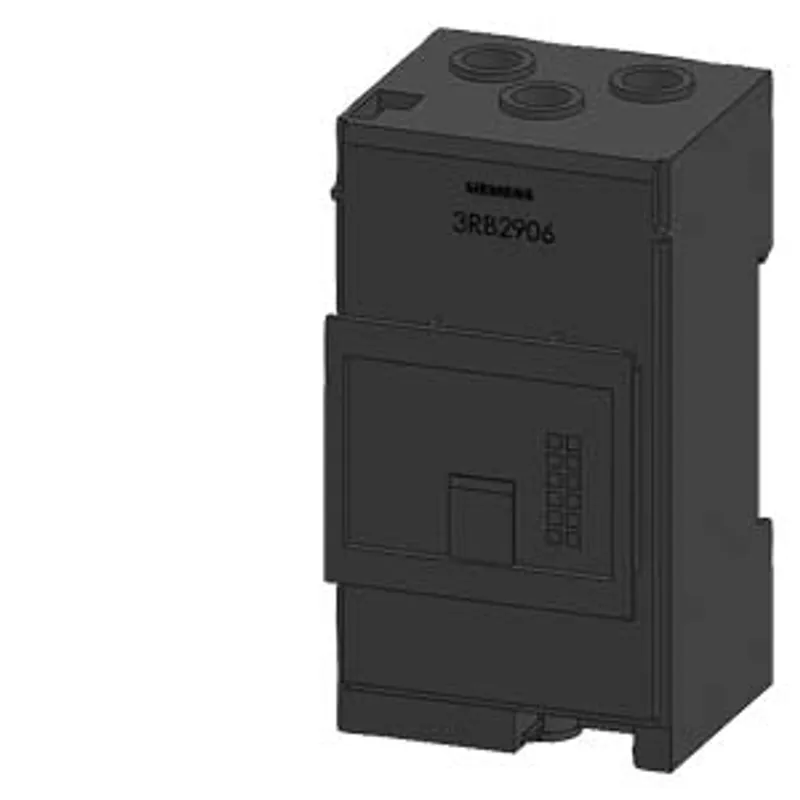

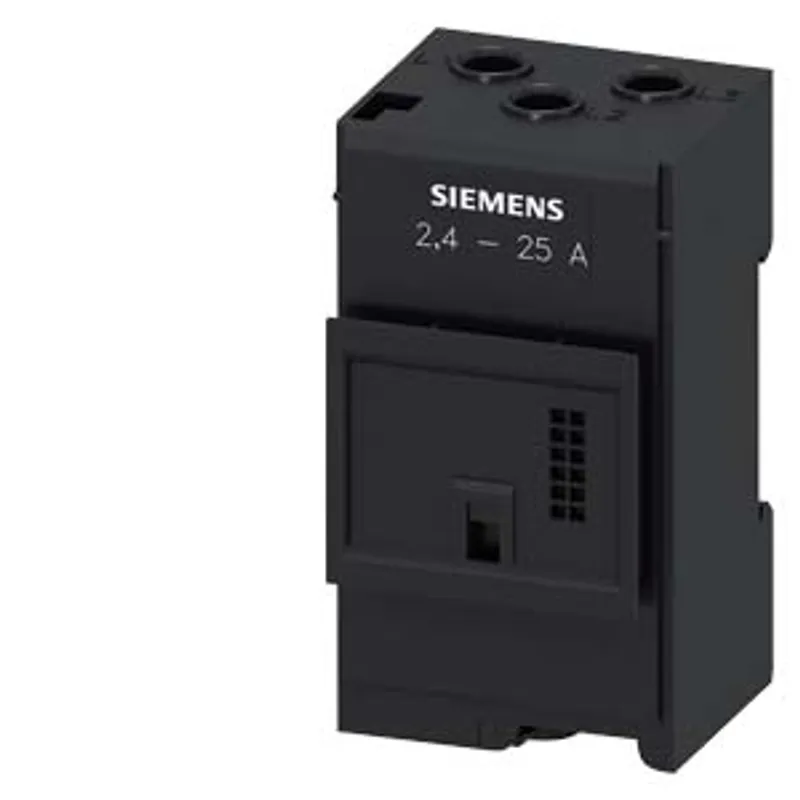

Siemens 3RB2906-2DG1
Current transformer 2.4...25 A for 3RB22/23/24 Size S00/S0 Stand-alone installation Main circuit…
- MPN
- 3RB2906-2DG1
- Category
- Circuit Protection & Switching
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the Siemens 3RB2906-2DG1?
Current transformer 2.4...25 A for 3RB22/23/24 Size S00/S0 Stand-alone installation Main circuit: straight-through transformer Auxiliary circuit: --
Specifications
General
| product brand name | SIRIUS |
| product designation | Current measuring module |
| product type designation | 3RB29 |
General technical data
| Substance Prohibitance (day/month/year) | 05/28/2009 |
| SVHC substance name | Lead CAS-No. 7439-92-1 Lead monoxide (lead oxide) CAS-No. 1317-36-8 |
| Net Weight | 157.28 g |
Main circuit
| adjustable current response value current of the current-dependent overload release | 2.4 ... 25 A |
| operating voltage — at AC-3e rated value maximum | 690 V |
| operational current rated value | 25 A |
| operational current at AC-3e at 400 V rated value | 25 A |

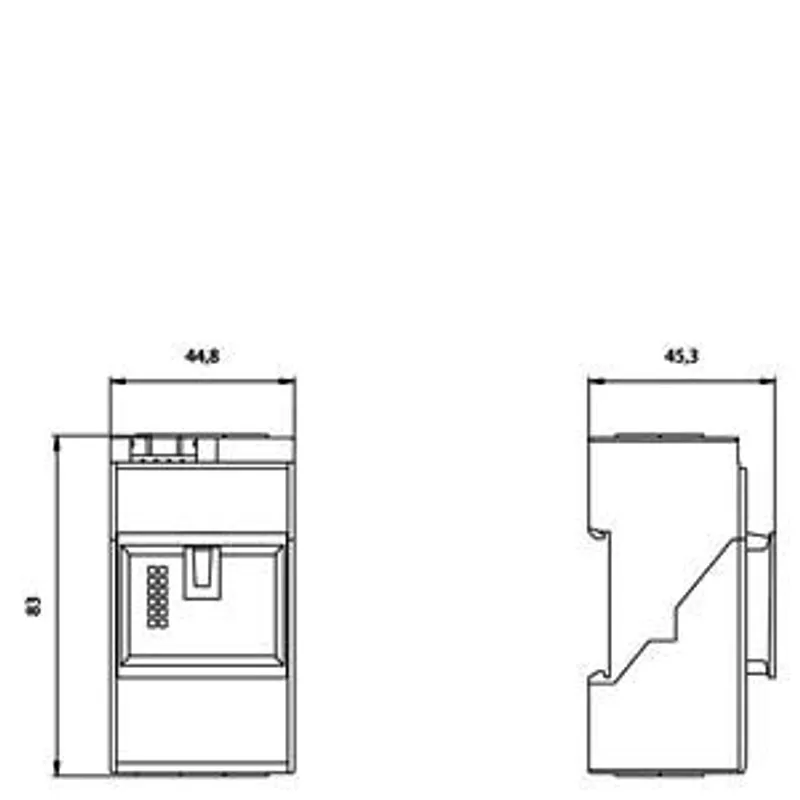

Installation/ mounting/ dimensions
| fastening method | stand-alone installation |
Connections/ Terminals

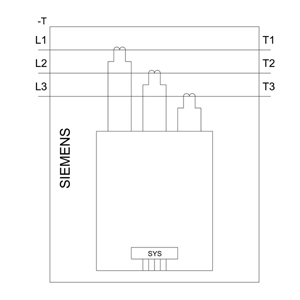

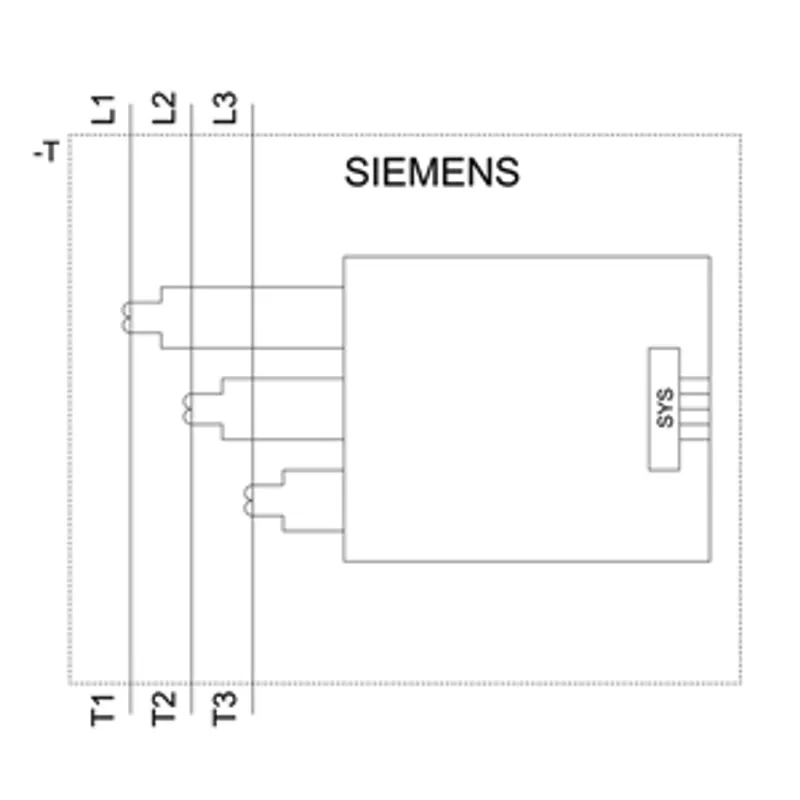

| type of electrical connection — for main current circuit | straight-through transformers |
| protection class IP on the front according to IEC 60529 | IP20 |
| touch protection on the front according to IEC 60529 | finger-safe, for vertical contact from the front |
Downloads & documentation
Official documents from Siemens, downloaded directly from the manufacturer.
Data sheets & manuals
3RB2906-2DG1: frequently asked questions
When can 3RB2906-2DG1 be shipped?
3RB2906-2DG1 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up 3RB2906-2DG1 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for 3RB2906-2DG1 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 3RB2906-2DG1, subject to availability and destination.
