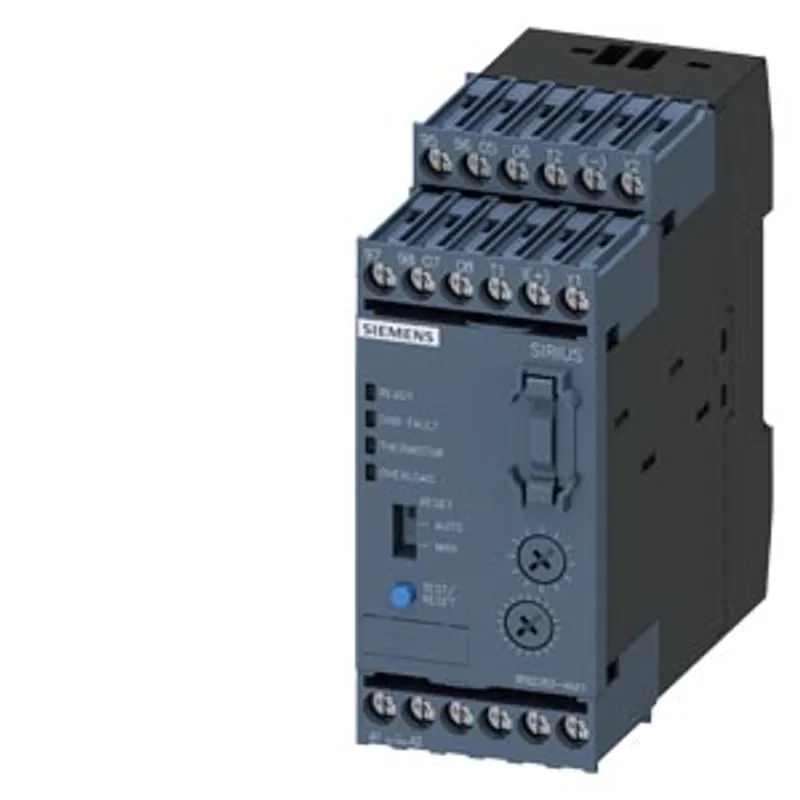

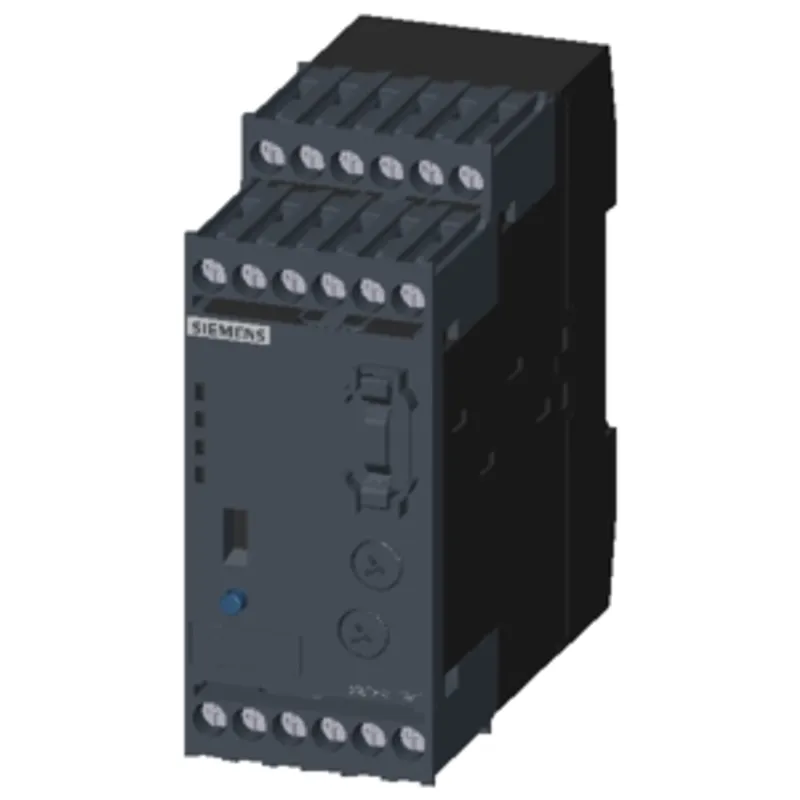

Siemens 3RB2383-4AA1
Evaluation unit for full motor protection (bistable) Size S00...S12
- MPN
- 3RB2383-4AA1
- Category
- Circuit Protection & Switching
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the Siemens 3RB2383-4AA1?
Evaluation unit for full motor protection (bistable) Size S00...S12, class 5...30 Stand-alone installation Main circuit: -- Auxiliary circuit: Screw terminal Manual-Automatic-Reset
Specifications
General
| product brand name | SIRIUS |
| product designation | solid-state overload relay |
| product type designation | 3RB23 |
General technical data
| size of overload relay | S00 ... S12 |
| size of contactor can be combined company-specific | S00 ... S12 |
| power loss [W] for rated value of the current at AC in hot operating state | 0.5 W |
| power loss [W] for rated value of the current at AC in hot operating state — per pole | 0.17 W |
| insulation voltage with degree of pollution 3 at AC rated value | 300 V |
| surge voltage resistance rated value | 4 kV |
| reference code according to IEC 81346-2 | F |
| Substance Prohibitance (day/month/year) | 07/01/2006 |
| SVHC substance name | Lead CAS-No. 7439-92-1 Lead monoxide (lead oxide) CAS-No. 1317-36-8 2-methyl-1-(4-methylthiophenyl)-2-morpholinopropan-1-one CAS-No. 71868-10-5 Melamine CAS-No. 108-78-1 |
| Net Weight | 0.233 kg |
Ambient conditions
| installation altitude at height above sea level maximum | 2 000 m |
| ambient temperature — during operation | -25 ... +60 °C |
| ambient temperature — during storage | -40 ... +80 °C |
| ambient temperature — during transport | -40 ... +80 °C |
| relative humidity during operation | 100 % |
Main circuit
| number of poles for main current circuit | 3 |
| adjustable current response value current of the current-dependent overload release | 0.3 ... 630 A |
| operational current rated value | 630 A |
| control supply voltage at AC — at 50 Hz rated value | 24 ... 240 V |
| control supply voltage at AC — at 60 Hz rated value | 24 ... 240 V |

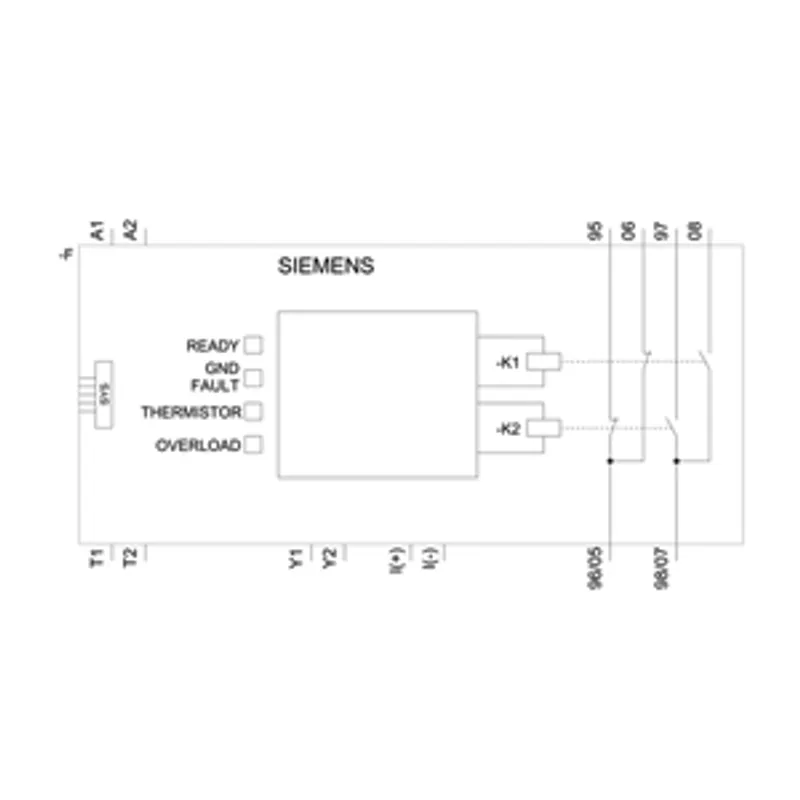

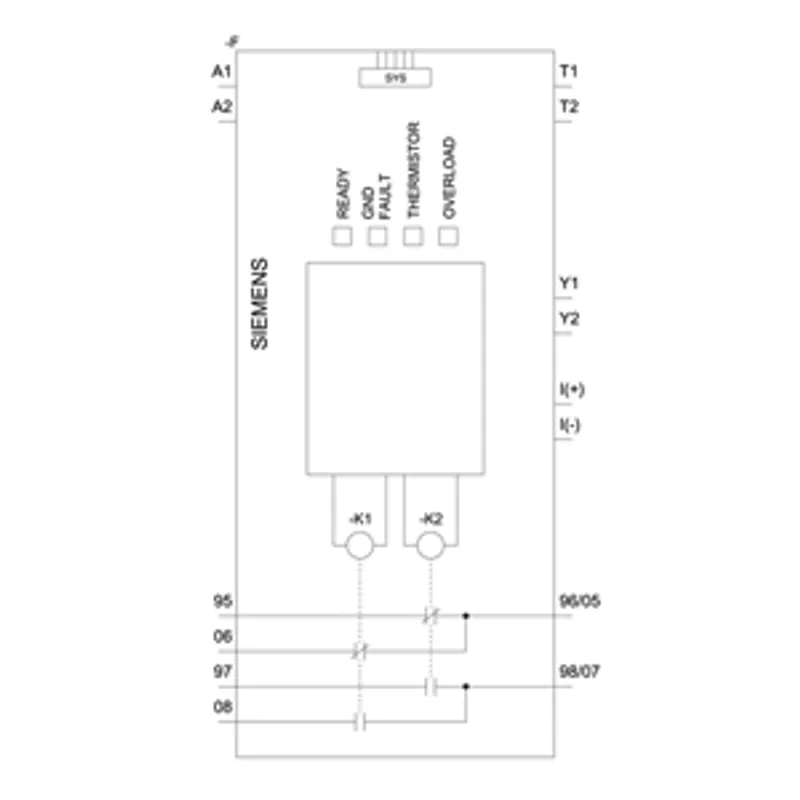

Auxiliary circuit
| number of NC contacts for auxiliary contacts | 2 |
| number of NO contacts for auxiliary contacts | 2 |
| operational current of auxiliary contacts at AC-15 — at 24 V | 6 A |
| operational current of auxiliary contacts at AC-15 — at 110 V | 6 A |
| operational current of auxiliary contacts at AC-15 — at 120 V | 6 A |
| operational current of auxiliary contacts at AC-15 — at 125 V | 6 A |
| operational current of auxiliary contacts at AC-15 — at 230 V | 3 A |
| operational current of auxiliary contacts at DC-13 — at 24 V | 2 A |
| operational current of auxiliary contacts at DC-13 — at 60 V | 0.55 A |
| operational current of auxiliary contacts at DC-13 — at 110 V | 0.3 A |
| operational current of auxiliary contacts at DC-13 — at 125 V | 0.3 A |
| operational current of auxiliary contacts at DC-13 — at 220 V | 0.2 A |
Protective and monitoring functions
| trip class | CLASS 5, 10, 20 and 30 adjustable |
Short-circuit protection
| design of the fuse link — for short-circuit protection of the auxiliary switch required | fuse gL/gG: 6 A |

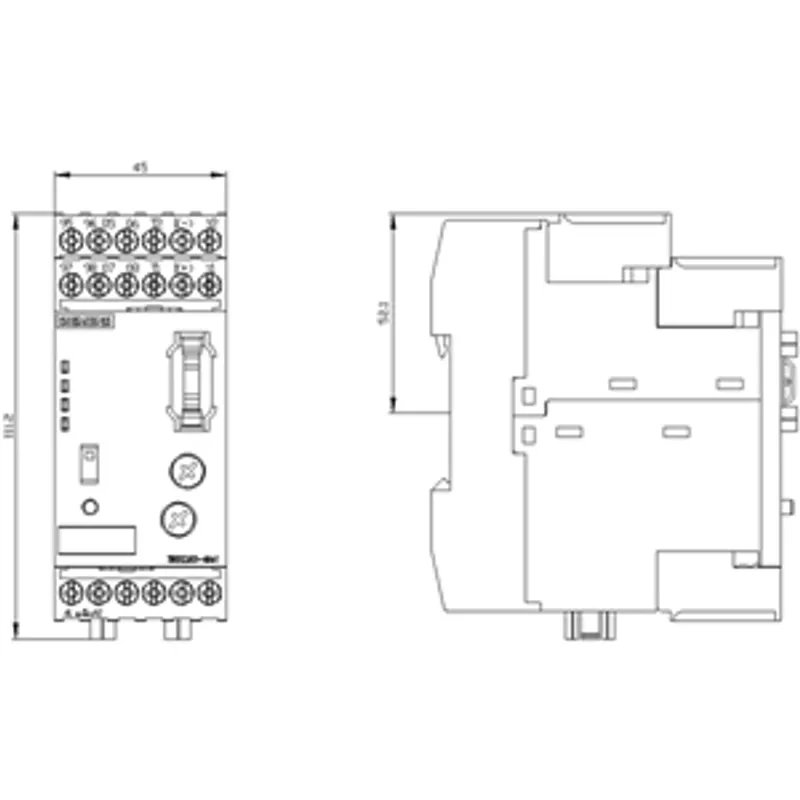

Installation/ mounting/ dimensions
| mounting position | any |
| fastening method | stand-alone installation |
| height | 111 mm |
| width | 45 mm |
| depth | 95 mm |
| required spacing — with side-by-side mounting — forwards | 0 mm |
| required spacing — with side-by-side mounting — backwards | 0 mm |
| required spacing — with side-by-side mounting — upwards | 0 mm |
| required spacing — with side-by-side mounting — downwards | 0 mm |
| required spacing — with side-by-side mounting — at the side | 0 mm |
| required spacing — for grounded parts — forwards | 0 mm |
| required spacing — for grounded parts — backwards | 0 mm |
| required spacing — for grounded parts — upwards | 0 mm |
| required spacing — for grounded parts — at the side | 6 mm |
| required spacing — for grounded parts — downwards | 0 mm |
| required spacing — for live parts — forwards | 0 mm |
| required spacing — for live parts — backwards | 0 mm |
| required spacing — for live parts — upwards | 0 mm |
| required spacing — for live parts — downwards | 0 mm |
| required spacing — for live parts — at the side | 6 mm |
Connections/ Terminals
| product component removable terminal for auxiliary and control circuit | Yes |
| type of electrical connection — for auxiliary and control circuit | screw-type terminals |
| type of connectable conductor cross-sections — for auxiliary contacts — finely stranded with core end processing | 0.5 ... 2.5 mm², 2x (0.5 ... 1.5 mm²) |
| type of connectable conductor cross-sections — for AWG cables for auxiliary contacts | 2x (24 ... 16) |
| protection class IP on the front according to IEC 60529 | IP20 |
| touch protection on the front according to IEC 60529 | finger-safe, for vertical contact from the front |
