Siemens 1FG1502-9QF63-4DC1-Z D11+G23+H3A+K12+N23+Q93+R72

SIMOTICS S-1FG1 synchronous servo geared motor bevel gearbox B39 motor type HD 600V AH80 Mmax=94 absolute…

MPN
1FG1502-9QF63-4DC1-Z D11+G23+H3A+K12+N23+Q93+R72
Price and lead time confirmed within 1 business day
Request a Quote
  1. 1We check stock, condition and lead time
  2. 2You get a written quote by email
  3. 3Approve it and we ship — in-stock parts within 1 business day

A real person replies, typically within 1 business day — see our privacy policy.

  • 12-month warranty (new) · 3-month (used/refurbished)
  • 30-day returns, no restocking fee on unused parts
  • 100% positive eBay feedback
  • Ships via

Have spare Siemens parts? We buy surplus →

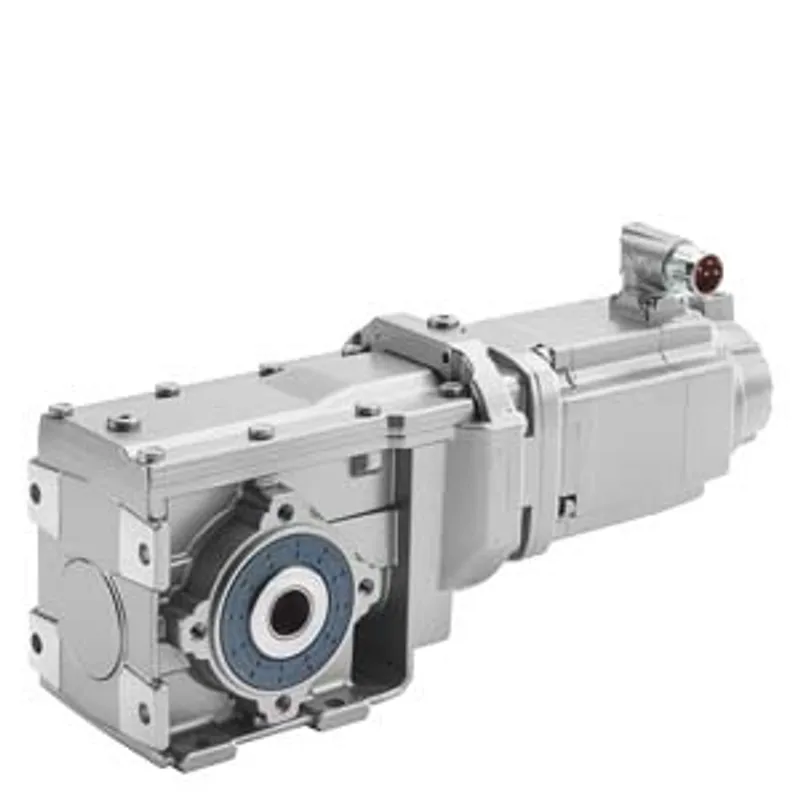

What is the Siemens 1FG1502-9QF63-4DC1-Z D11+G23+H3A+K12+N23+Q93+R72?

SIMOTICS S-1FG1 synchronous servo geared motor bevel gearbox B39 motor type HD 600V AH80 Mmax=94 absolute encoder single-turn 20-bit with DRIVE-CLiQ interface (encoder AS20DQI) plug-on version transfer ratio: 4.74 N1max=4500 rpm; N2max = 949 rpm, M2max = 200 Nm D11=mounting position M1-A G23=standard holding brake H3A=hollow sh./shrink-on sl. HS35 K12=oil CLP ISO PAO VG220 N23=seal longer service life Q93=plug position on the left R72=encoder for temp. -30 °C/+40 °C customer-specific motor: CIGO10114463

1FG1502-9QF63-4DC1-Z D11+G23+H3A+K12+N23+Q93+R72: frequently asked questions

When can 1FG1502-9QF63-4DC1-Z D11+G23+H3A+K12+N23+Q93+R72 be shipped?

1FG1502-9QF63-4DC1-Z D11+G23+H3A+K12+N23+Q93+R72 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up 1FG1502-9QF63-4DC1-Z D11+G23+H3A+K12+N23+Q93+R72 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for 1FG1502-9QF63-4DC1-Z D11+G23+H3A+K12+N23+Q93+R72 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 1FG1502-9QF63-4DC1-Z D11+G23+H3A+K12+N23+Q93+R72, subject to availability and destination.
