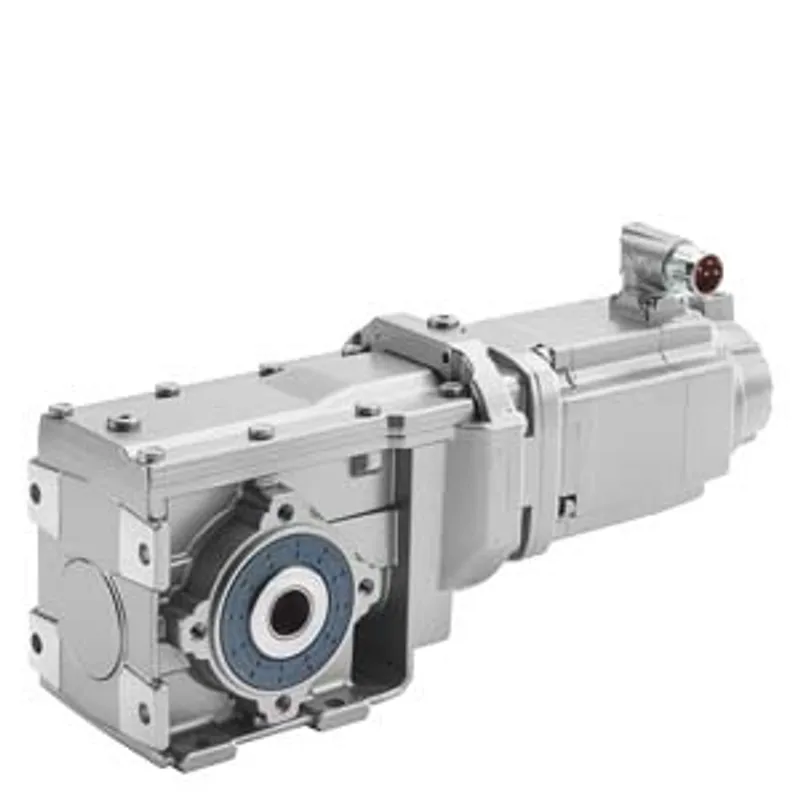

Siemens 1FG1501-8QD23-2HM1-Z D23+E10+G23+G97+K07+N23+Q91+W90+Y84 – SIMOTICS S-1FG1 geared motor Bevel gearbox B29 Motor type…
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Lifecycle | Active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
| Weight | 12.5 kg |
Shipping & availability
When can 1FG1501-8QD23-2HM1-Z D23+E10+G23+G97+K07+N23+Q91+W90+Y84 be shipped?
1FG1501-8QD23-2HM1-Z D23+E10+G23+G97+K07+N23+Q91+W90+Y84 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up 1FG1501-8QD23-2HM1-Z D23+E10+G23+G97+K07+N23+Q91+W90+Y84 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for 1FG1501-8QD23-2HM1-Z D23+E10+G23+G97+K07+N23+Q91+W90+Y84 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 1FG1501-8QD23-2HM1-Z D23+E10+G23+G97+K07+N23+Q91+W90+Y84, subject to availability and destination.
SIMOTICS S-1FG1 geared motor Bevel gearbox B29 Motor type CT 600V AH48 Mmax=10.5 Absolute encoder single-turn Encoder AS20DQI with Drive-CLiQ Enclosure fl.; transmission i=11.46 N1max=4500 rpm, N2max=393 rpm M2max=114Nm; D23: Installation position M3-B E10: Rotation Y axis 50° G23: Sealing longer service life K07: Oil CLP ISO PG VG220 N23: Standard holding brake Q91: Connector position on right Y84: Rating plate customer specifications G97: Final stage glued on W90: Hollow shaft d=25 mm with shrink disk Customer-specific motor according to SMR-87-2017, Po(*)
More Siemens parts
Available on requestSiemens 1FG1408-..G52-2... – SIMOTICS S-1FG1 synchronous servo geared motor parallel…

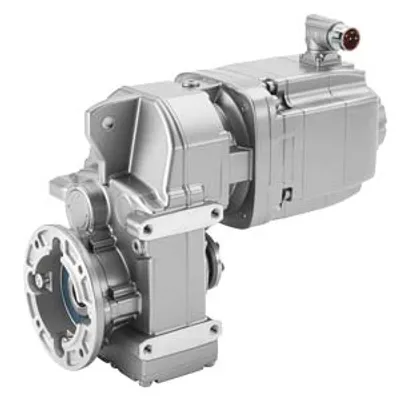

Available on requestSiemens 1FG1408-..G53-2... – SIMOTICS S-1FG1 synchronous servo geared motor parallel…
