Siemens 1FG1502-5QF63-4DC1-Z D11+G23+K12+N23+Q93+R72
SIMOTICS S-1FG1 synchronous servo geared motor bevel gearbox B39 motor type HD 600V AH80 Mmax=94 hollow shaft…
- MPN
- 1FG1502-5QF63-4DC1-Z D11+G23+K12+N23+Q93+R72
Request a Quote
- 1We check stock, condition and lead time
- 2You get a written quote by email
- 3Approve it and we ship — in-stock parts within 1 business day
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- 100% positive eBay feedback
- Ships via

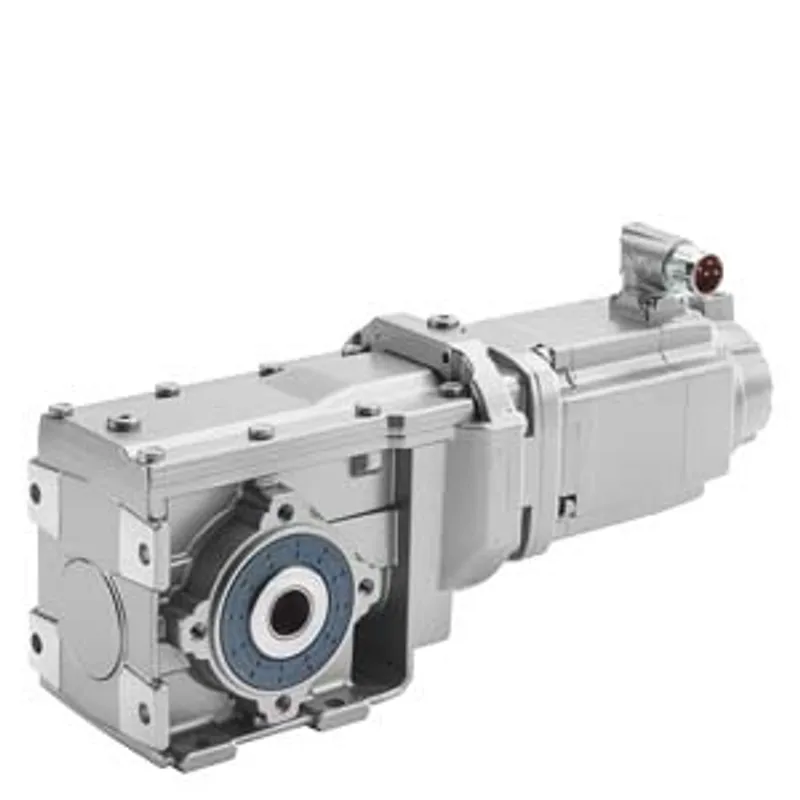

What is the Siemens 1FG1502-5QF63-4DC1-Z D11+G23+K12+N23+Q93+R72?
SIMOTICS S-1FG1 synchronous servo geared motor bevel gearbox B39 motor type HD 600V AH80 Mmax=94 hollow shaft with keyway standard H30; absolute encoder single-turn 20-bit DRIVE-CLiQ interface (encoder AS20DQI) plug-on version transfer ratio: 4.74 N1max=4500 rpm N2max=949 rpm, M2max = 200 Nm; mounting position M1-A D11=seal longer service life; K12=oil CLP ISO PAO VG220 N23=standard holding brake Q93=connector position on the left R72=encoder -30 °C/+40 °C suitable customer-specific motor acc. to CIGO10114463
1FG1502-5QF63-4DC1-Z D11+G23+K12+N23+Q93+R72: frequently asked questions
When can 1FG1502-5QF63-4DC1-Z D11+G23+K12+N23+Q93+R72 be shipped?
1FG1502-5QF63-4DC1-Z D11+G23+K12+N23+Q93+R72 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up 1FG1502-5QF63-4DC1-Z D11+G23+K12+N23+Q93+R72 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for 1FG1502-5QF63-4DC1-Z D11+G23+K12+N23+Q93+R72 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 1FG1502-5QF63-4DC1-Z D11+G23+K12+N23+Q93+R72, subject to availability and destination.
