Schneider Electric
VW3A3619Communication module Ethernet Powerlink, Altivar, 10/100Mbps, 2 x RJ45 connectors
Schneider Electric VW3A3720
Communication module EtherNet IP Modbus TCP, 10 or 100Mbps, 2 x RJ45 connectors
- MPN
- VW3A3720
- EAN
- 3606480702549
- Category
- Altivar Process ATV600
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback

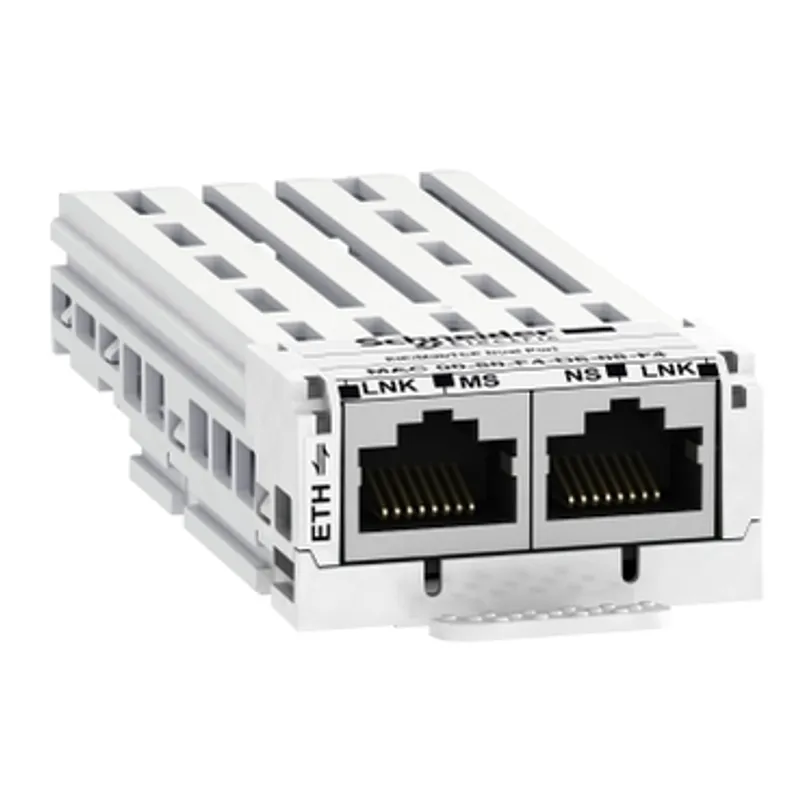

What is the Schneider Electric VW3A3720?
This Ethernet/IP, ModbusTCP communication module enables integration of your drive in your process control network. It is simple to install and remove from Altivar drives thanks to its modular withdrawable design. It is compatible with Altivar Process ATV600 and Altivar process Modular. It has 2 x RJ45 connector.
Specifications
Specifications
| Range of product | Altivar |
| Product or component type | Communication module |
| Range compatibility | Altivar Process ATV600, Altivar Process Modular |
| Communication port protocol | Modbus TCP, EtherNet/IP |
| Electrical connection | 2 connectors RJ45, Ethernet IP/Modbus TCP |
| Transmission rate | 10/100 Mbps |
| Exchange mode | Half duplex and full duplex |
| Communication service | SNMP agent for Ethernet IP, Modbus TCP server for Ethernet IP/Modbus TCP, Ethernet/IP adapter for Ethernet IP, RSTP support for Ethernet IP, FTP for Ethernet IP, ODVA AC drive and CiA 402 profile for Ethernet IP/Modbus TCP, Auto-MDIX for Ethernet IP/Modbus TCP, 32 parameters IN - 32 parameters OUT implicit messaging for Ethernet IP/Modbus TCP, FDR for Ethernet IP/Modbus TCP |
| Communication network type | IPv6 (internet protocol) |
| Topology | Daisy chain |
| Time synchronisation protocol | SNTP |
| Web server | Embedded HTTP server |
| Web services | Save/restore drive configuration, Drive setting and diagnostic, Energy monitoring, Widgets (ID, control, data table, diagnostic, charts), Upgrade drive firmware, Customizable home page, Drive monitor, Pump function setting and monitoring, Ethernet setting and diagnostic |
| Display type | 1 LED for MS (Module Status), 1 LED for NS (Network Status), 1 LED for TX/RX (Transmit/Receive port 1), 1 LED for TX/RX (Transmit/Receive port 2) |
| Bus profile | CIP AC Drive, CiA 402 |
| Net weight | 0.2 kg |
| Product certifications | ODVA, Achilles: level 2 |
Packaging
| Package 1 | 1 PCE, 18.800 cm × 13.000 cm × 6.700 cm (L × W × H), 159.000 g |
| Package 2 | 16 S03, 40.000 cm × 30.000 cm × 30.000 cm (L × W × H), 3.290 kg |
Downloads & documentation
Official documents from Schneider Electric, downloaded directly from the manufacturer.
Data sheets & manuals
VW3A3720: frequently asked questions
When can VW3A3720 be shipped?
VW3A3720 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up VW3A3720 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for VW3A3720 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for VW3A3720, subject to availability and destination.
