Schneider Electric VW3A3307

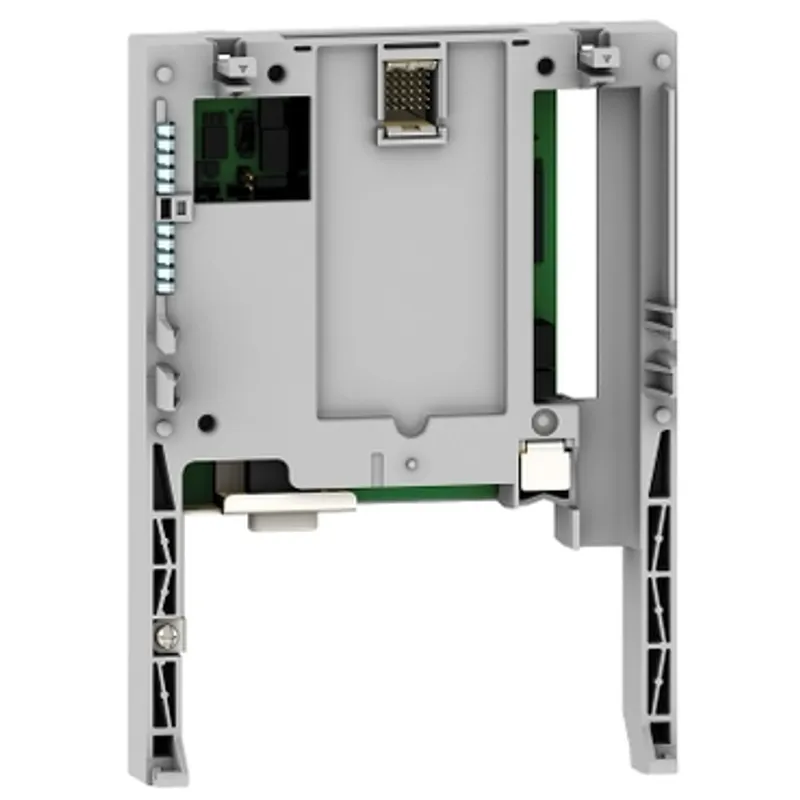

Profibus DP communication card, Altivar, 9 way female SUB D connector
- MPN
- VW3A3307
- EAN
- 3389118067165
- Category
- Altivar 71
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the Schneider Electric VW3A3307?
This PROFIBUS DP V0 communication card is an option for variable speed drives of Altivar range. It is equipped with a 9-way female SUB-D connector. It is compatible with Altivar 61 and Altivar 71. It enables integration of your variable speed drive in your process control network. It weighs 300g.
Specifications
Specifications
| Product or component type | Communication card |
| Range compatibility | Altivar 71, Altivar 61Q, Altivar 61, Altivar 71Q |
| Communication port protocol | Profibus DP |
| Connector type | 9-way female SUB-D connector |
| Transmission rate | 1.5 Mbps, 12 Mbps, 9600 bps, 3 Mbps, 500 kbps, 19.2 kbps, 187.5 kbps, 6 Mbps, 93.75 kbps |
| Number of addresses | 1…126 |
| Communication service | CiA 402 profile, I/O profile, I/O data, Communication monitoring can be inhibited, adjustable, PPO type 5 |
| Display type | 1 LED for DX (data exchange), 1 LED for ST (status), Graphic display terminal for control word received, Graphic display terminal for I/O data, Graphic display terminal for reference received |
| Net weight | 0.3 kg |
Packaging
| Package 1 | 1 PCE, 23.000 cm × 17.000 cm × 7.200 cm (L × W × H), 281.000 g |
| Package 2 | 7 S03, 40.000 cm × 30.000 cm × 30.000 cm (L × W × H), 2.512 kg |
| Package 3 | 56 P06, 80.000 cm × 60.000 cm × 75.000 cm (L × W × H), 30.388 kg |
