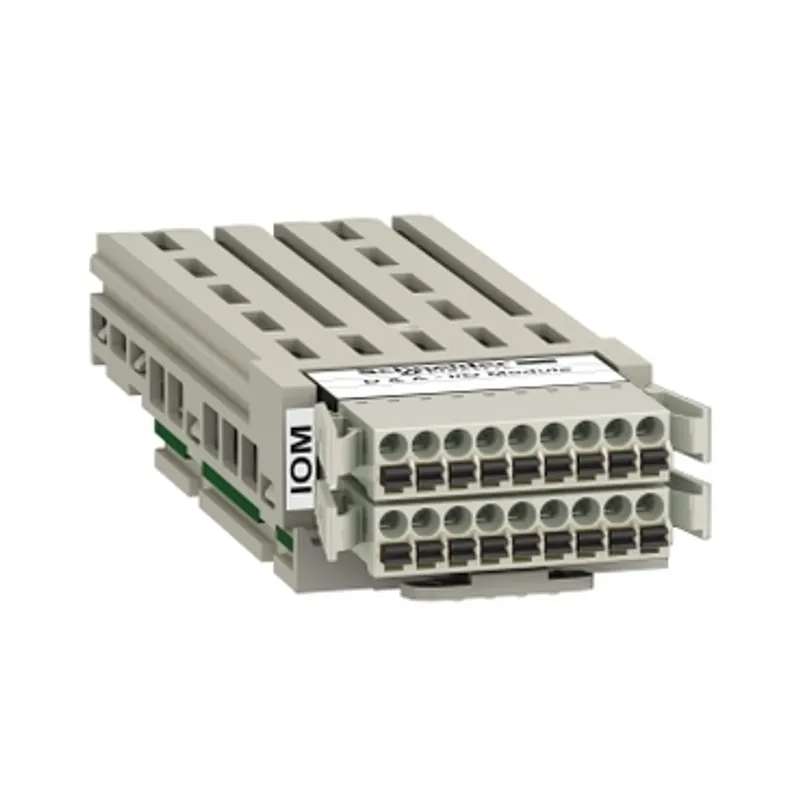

Schneider Electric VW3A3203
Additional Input Output module, Altivar, 24V DC, 1 removable spring connector
- MPN
- VW3A3203
- EAN
- 3606480702525
- Category
- Altivar Process ATV600
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the Schneider Electric VW3A3203?
This I/O expansion module enables your drive to meet the needs of application that manage additional or specific sensors. It is simple to install and remove from Altivar drives thanks to its modular withdrawable design. It is compatible with Altivar Process ATV600, Altivar Process ATV900 and Altivar Machine ATV340. It is also compatible with Altivar Easy 610. It has one removable spring terminal block 1.5 mm² / AWG 16.
Specifications
Specifications
| Product or component type | Additional I/O module |
| Range compatibility | Altivar Process ATV600, Altivar Machine ATV340, Altivar Process ATV900, Easy Altivar 610 |
| Input/output type | 2 analog input configurable voltage, current or probe, 6 discrete input, 2 discrete output |
| Analogue input number | 2 |
| Analogue input type | AI4, AI5 configurable current: 0...20 mA/4...20 mA, sampling time: 0…1 ms, resolution: 14 bits, AI4, AI5 configurable voltage: - 10...10 V DC, 24 V max, impedance: 20 kOhm, sampling time: 0…1 ms, resolution: 14 bits, AI4, AI5 configurable PTC, Pt 100, Pt 1000, sampling time: 0…1 ms, resolution: 14 bits |
| Discrete output number | 2 |
| Discrete output type | (DQ11, DQ12) assignable logic, sampling time: 1 ms |
| Discrete output logic | (DQ11, DQ12) negative, (DQ11, DQ12) positive |
| Discrete input number | 6 |
| Discrete input type | (DI11...DI16) programmable, impedance: 250 Ohm, sampling time: 1 ms |
| Discrete input logic | Negative (DI11...DI16), Positive (DI11...DI16) |
| Discrete input current | 2.5 mA |
| Discrete output voltage | 24 V DC (voltage limits: <= 30 V) assignable logic |
| Maximum output current | 100 mA, assignable logic |
| Discrete input voltage | 24 V DC (voltage limits: <= 30 V) for programmable |
| Electrical connection | Removable spring terminal block, 1.5 mm² / AWG 16 |
| Protection type | Reverse polarity protection: digital input, Short-circuit protection: output |
| Net weight | 0.5 kg |
Packaging
| Package 1 | 1 PCE, 19.000 cm × 13.000 cm × 6.500 cm (L × W × H), 161.000 g |
| Package 2 | 16 S03, 40.000 cm × 30.000 cm × 30.000 cm (L × W × H), 3.368 kg |
