Schneider Electric VW3A3204
Additional output module, Altivar, relay output, 24 to 30V DC, 1 screw terminal
- MPN
- VW3A3204
- EAN
- 3606480702532
- Category
- Altivar Process ATV600
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the Schneider Electric VW3A3204?

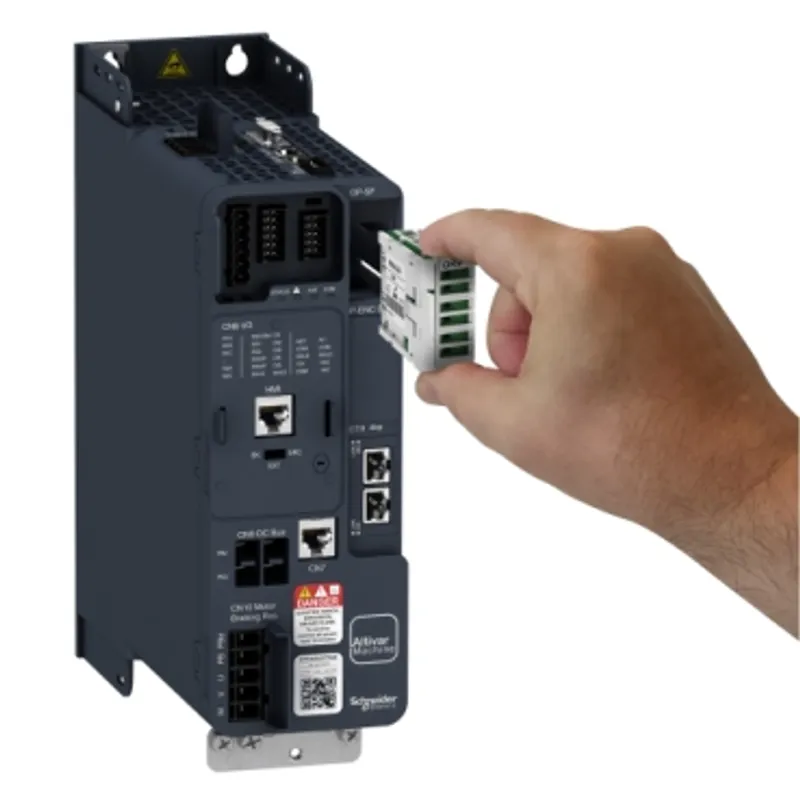

This extended module enables your drive to meet the needs of application that manage additional or specific sensors. It is simple to install and remove from Altivar drives thanks to its modular withdrawable design. It is compatible with Altivar Process ATV600, Altivar Process ATV900 and Altivar Machine ATV340. It is also compatible with Altivar Easy 610. It has one screw terminal block 1.5 mm² / AWG 16.
Specifications
Specifications
| Product or component type | Additional output module |
| Range compatibility | Altivar Machine ATV340, Easy Altivar 610, Altivar Process ATV900, Altivar Process ATV600 |
| Input/output type | 3 relay output |
| Discrete output number | 3 |
| Discrete output type | (R4, R5, R6) relay normally open, sampling time: 1 ms |
| Electrical durability | 100000 cycles |
| Minimum switching current | 5 mA at 24 V DC |
| Maximum switching current | 2 A at 250 V AC on inductive load, cos phi = 0.4 and L/R = 5 ms, 2 A at 30 V DC on inductive load, cos phi = 0.4 and L/R = 5 ms, 5 A at 250 V AC on resistive load, cos phi = 1 and L/R = 5 ms, 5 A at 30 V DC on resistive load, cos phi = 1 and L/R = 5 ms |
| Electrical connection | Screw terminal block, 1.5 mm² / AWG 16, 0.5 N.m |
| Net weight | 0.4 kg |
Packaging
| Package 1 | 1 PCE, 19.0 cm × 13.0 cm × 6.5 cm (L × W × H), 152.0 g |
| Package 2 | 16 S03, 40.0 cm × 30.0 cm × 30.0 cm (L × W × H), 3.114 kg |
