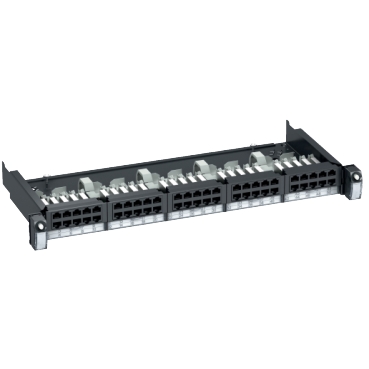

Actassi 19-C Telecom Panel Sliding 19" 1U, 50 port
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | Actassi for AsiaPacific |
| Lifecycle | active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
| Weight | 2.8 kg |
Shipping & availability
When can VDIG141501 be shipped?
VDIG141501 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up VDIG141501 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for VDIG141501 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for VDIG141501, subject to availability and destination.
This 19 inch rack can support 50 Telecom connector in 1U height. It is equipped with one quick fix function on both sides to allow a simple fixation into the rack. It has also a sliding function to have access to Telecom IDC termination by the front of the panel. Telecom connection connectors can be terminated inside the rack. Labels are provided to identify each ports and are protected by transparent label holders. 2 dedicated labels are provided on each side to identify the panel inside the rack. Labels are provided and protected by transparent label holders. Advanced rear cable management is included to fix each cable in a easy and safe operation. It provides 2 earthing connection points for both shielded cables and for the rack at the rear.
Specifications
Specifications
| range of product | Actassi |
| Product or component type | 19” telecom panel |
| Provided equipment | Rear cable manager 1, Quick fix 19" mounting 2, Label holder 4 |
| Colour | Dark grey |
| Connections - terminals | LSA punch down blocks on PCB |
| Number of port | 50 port in 2 horizontal rows |
| Number of rack unit | 1U |
| Material | DC01 metal sheet 1.2 mm, PA66 GF20 plastic part, PA (polyamide) 6 plastic part, PC (polycarbonate) plastic part |
| Width | 490 mm |
| Depth | 230 mm |
| Height | 45 mm |
| Net weight | 2.8 kg |
| Ambient air temperature for operation | -10…55 °C |
| Standards | IEC 60297, NF C 20-150 |
| Unit Type of Package 1 | PCE |
| Number of Units in Package 1 | 1 |
| Package 1 Height | 6.000 cm |
| Package 1 Width | 27.000 cm |
| Package 1 Length | 55.000 cm |
| Package 1 Weight | 2.717 kg |
| Unit Type of Package 2 | S04 |
| Number of Units in Package 2 | 6 |
| Package 2 Height | 30.000 cm |
| Package 2 Width | 40.000 cm |
| Package 2 Length | 60.000 cm |
| Package 2 Weight | 17.140 kg |
| Unit Type of Package 3 | P12 |
| Number of Units in Package 3 | 24 |
| Package 3 Height | 45.000 cm |
| Package 3 Width | 80.000 cm |
| Package 3 Length | 120.000 cm |
| Package 3 Weight | 80.560 kg |
| Warranty (in months) | 18 |
