Actassi 19-C Fixed Shelf 19" 1U 250mm Deep maximum 15kg
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | Actassi for Europe |
| Lifecycle | active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
| Weight | 1.47 kg |
Shipping & availability
When can VDIG188011 be shipped?
VDIG188011 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up VDIG188011 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for VDIG188011 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for VDIG188011, subject to availability and destination.

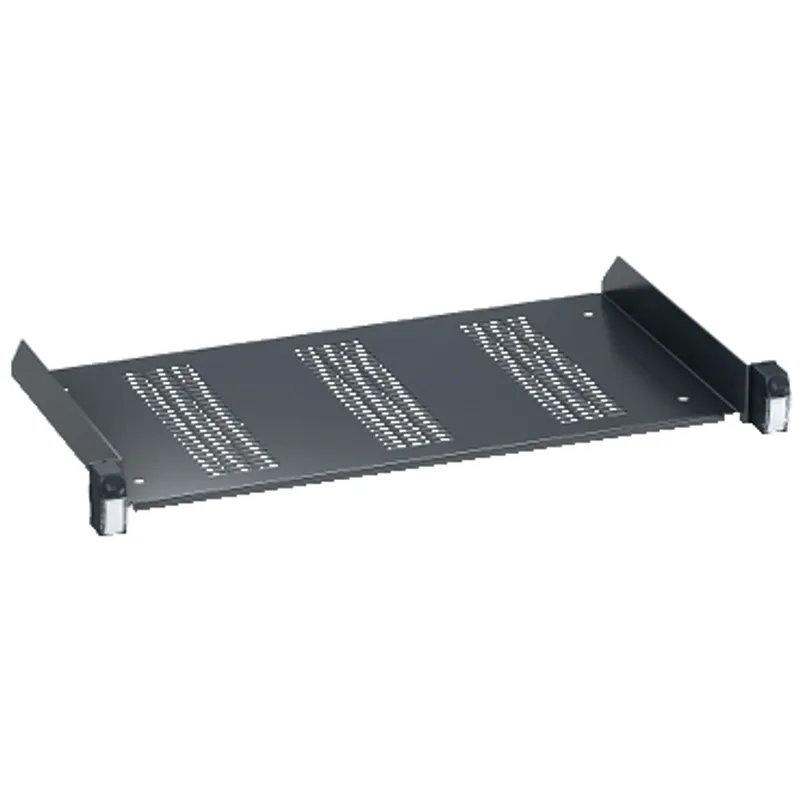

This metal shelf in 1U height, depth 250mm, for maximum weight 15 Kg. It is equipped with 1 Quick Fix function on both sides to allow a simple, quick fixing position.
Specifications
Specifications
| range | Actassi |
| product | 19" shelf |
| Provided equipment | 2 quick fix 19" mountings |
| rack unit | 1U |
| maximum load | 15 kg |
| Material | 1.2 mm DC01 |
| colour | Dark grey |
| Width | 490 mm |
| Height | 45 mm |
| Depth | 250 mm |
| Standards | NF C 20-150, IEC 60297 |
| temperature range | -10…55 °C |
| Unit Type of Package 1 | PCE |
| Number of Units in Package 1 | 1 |
| Package 1 Height | 5.400 cm |
| Package 1 Width | 34.800 cm |
| Package 1 Length | 54.400 cm |
| Package 1 Weight | 1.471 kg |
| Unit Type of Package 2 | S04 |
| Number of Units in Package 2 | 5 |
| Package 2 Height | 30.000 cm |
| Package 2 Width | 40.000 cm |
| Package 2 Length | 60.000 cm |
| Package 2 Weight | 8.172 kg |
| Unit Type of Package 3 | P06 |
| Number of Units in Package 3 | 20 |
| Package 3 Height | 75.000 cm |
| Package 3 Width | 60.000 cm |
| Package 3 Length | 80.000 cm |
| Package 3 Weight | 41.500 kg |
| Warranty (in months) | 18 |
