Schneider Electric VDIG118241U60

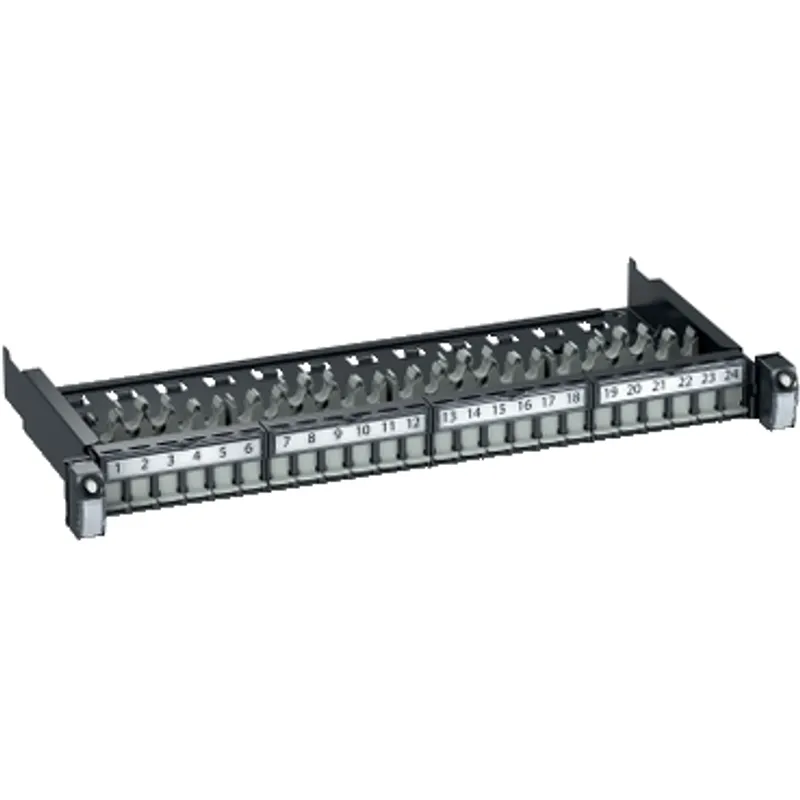

Actassi 19-C Patch Panel Sliding Evo 19" 1U 24pt S-One UTP Cat6

MPN: VDIG118241U60
Category: Actassi for Europe

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Schneider Electric parts? We buy surplus →

What is the Schneider Electric VDIG118241U60?

This equipped sliding 19 inch copper panels contain a front configuration of 24 S-One Cat6 non-shielded connectors in 1U height. It is equipped with one Quick Fix function on both sides to allow a simple, quick fixing position and sliding feature. Plus pre-equipped with 24 light grey shutters, 4 label holders and 1 rear cable organizer. The panel is in metal material with thickness 1.2mm and dark grey RAL 7016. It provides simple clicking connectors for mounting and automatic earthing with the pre-eqipped bus bar. The panel dimensions- Height 45mm, Width 490mm, Depth 230mm.

Specifications

range of product	Actassi
Product or component type	Equipped sliding 19" data panel
Device presentation	Loaded
Provided equipment	Individual port identification label, 1 rear cable organizer, 4 label holders, 24 RJ45 connectors, 2 quick fix 19" mountings
Colour	Dark grey (RAL 7016)
Additional information	Automatic grounding
Variant	Evolution
Number of port	24 port of UTP
Communication network category	6
Mounting support	19" rack
Number of rack unit	1U
Type of connector	S-One
Material	DC01 metal sheet 1.2 mm, PA6 plastic part, PA66 GF20 plastic part
Width	490 mm
Depth	240 mm
Height	47 mm
Net weight	2.9 kg
Ambient air temperature for operation	-10…55 °C
Standards	IEC 60297, ISO/IEC 11801:ed. 2.2, 2011, NF C 20-150

Packaging

Package 1	1 PCE, 54.800 cm × 27.000 cm × 5.600 cm (L × W × H), 2.428 kg
Package 2	6 S04, 60.000 cm × 40.000 cm × 30.000 cm (L × W × H), 14.990 kg
