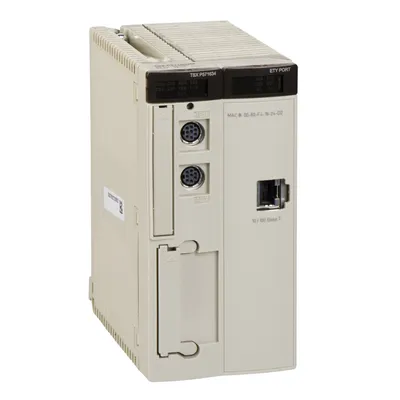

Schneider Electric TSXP573623AMC – double-format PL7 processor - Transparent Ready - 1360 mA

Name: Schneider Electric TSXP573623AMC – double-format PL7 processor - Transparent Ready - 1360 mA
Brand: Schneider Electric
SKU: TSXP573623AMC

MPN: TSXP573623AMC · Brand: Schneider Electric

Price on request

Discontinued by Schneider Electric — we can still source the original TSXP573623AMC (new, used or refurbished, subject to availability). Request a quote below.

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)

30-day returns, no restocking fee on unused parts

Ships via

Quick facts

Availability	Confirmed on request
Category	Modicon Premium
Lifecycle	Discontinued
Warranty	12-month (new) · 3-month (used/refurbished)
UPC / EAN	3595863957020
Recommended replacement	BMEP583020
Datasheet	Manufacturer datasheet ↗

Shipping & availability

Can I still buy the TSXP573623AMC now that it is discontinued?

Yes. Schneider Electric has discontinued the TSXP573623AMC, but sourcing discontinued parts is what PartnerPLC specialises in — new old stock, used and refurbished units. Request a quote and we'll confirm availability, condition and lead time. If you are planning an upgrade instead, Schneider Electric names the BMEP583020 as its successor — we can quote both.

When can TSXP573623AMC be shipped?

TSXP573623AMC is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up TSXP573623AMC in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for TSXP573623AMC and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for TSXP573623AMC, subject to availability and destination.

Schneider Electric TSXP573623AMC — double-format PL7 processor - Transparent Ready - 1360 mA (Modicon Premium). Discontinued by Schneider Electric; the manufacturer's successor is BMEP583020. PartnerPLC sources discontinued and surplus Schneider Electric automation parts — request a quote for price, condition and lead time.

Specifications

Main

Range of product	Modicon Premium Automation platform
Product or component type	Double-format PL7 processor
Software designation	PL7 Junior/Pro

Complementary

Concept	Transparent Ready
Number of racks	16 4/6/8 slots; 8 12 slots
Number of slots	96; 128; 64
Discrete I/O processor capacity	1024 I/O
Analogue I/O processor capacity	128 I/O
Number of application specific channel	32
Number of process control channel	15 up to 45 simple loops
Integrated connection type	Ethernet TCP/IP RJ45 connector (10/100 Mbit/s); Non isolated serial link 2 female mini DIN connector (19.2/115 kbit/s)
Communication module processor capacity	2 fieldbus modules (1 if CANopen used); 8 AS-Interface bus modules; 1 CANopen; 2 network module
Memory description	Internal RAM (with PCMCIA card) 80 Kwords data; Internal RAM (without PCMCIA card) 64 Kwords program and data; PCMCIA card 2688 Kwords additional data storage; PCMCIA card 384 Kwords program
Maximum size of object areas	16384 %Mi located internal bits; 30.5 %MWi internal words located internal data; 32 %KWi constant words located internal data
Application structure	1 fast task; 1 master task; 64 event tasks
Execution time per instruction	2.6 µs floating points with PCMCIA card; 0.12 µs Boolean without PCMCIA card; 0.17 µs Boolean with PCMCIA card; 0.17 µs word or fixed-point arithmetic without PCMCIA card; 0.33 µs word or fixed-point arithmetic with PCMCIA card; 2.5 µs floating points without PCMCIA card
Number of instructions per ms	3.08 Kinst/ms 65 % Boolean + 35 % fixed arithmetic with PCMCIA card; 4.49 Kinst/ms 100 % Boolean with PCMCIA card; 4.7 Kinst/ms 65 % Boolean + 35 % fixed arithmetic without PCMCIA card; 6.57 Kinst/ms 100 % Boolean without PCMCIA card
System overhead	0.29 ms for fast task; 1.15 ms for master task
Marking	CE
Local signalling	1 LED (green) for Ethernet TCP/IP port ready (RUN); 1 LED (green) for processor running (RUN); 1 LED (red) for collision detection (COL); 1 LED (red) for Ethernet TCP/IP port fault (ERR); 1 LED (red) for I/O module or configuration fault (I/O); 1 LED (red) for processor or system fault (ERR); 1 LED (yellow) for activity on the terminal port (TER); 1 LED (yellow) for Ethernet link diagnostics (STS); 1 LED (yellow) for reception activity (RX); 1 LED (yellow) for transmission activity (TX)
Current consumption	1360 mA at 5 V DC
Module format	Double

Environment

Standards	92/31/EEC; 73/23/EEC; 93/68/EEC; CSA C22.2 No 213 Class I Division 2 Group B; CSA C22.2 No 213 Class I Division 2 Group A; CSA C22.2 No 213 Class I Division 2 Group D; CSA C22.2 No 142; CSA C22.2 No 213 Class I Division 2 Group C; IEC 61131-2; UL 508; 89/336/EEC
Product certifications	LR; RINA; ABS; BV; RMRS; GL; DNV
Ambient air temperature for operation	0…60 °C
Ambient air temperature for storage	-25…70 °C
Relative humidity	10…95 % without condensation for operation; 5…95 % without condensation for storage
Operating altitude	0...2000 m
Protective treatment	Conformal coating Humiseal 1A33; TC
IP degree of protection	IP20
Pollution degree	2
