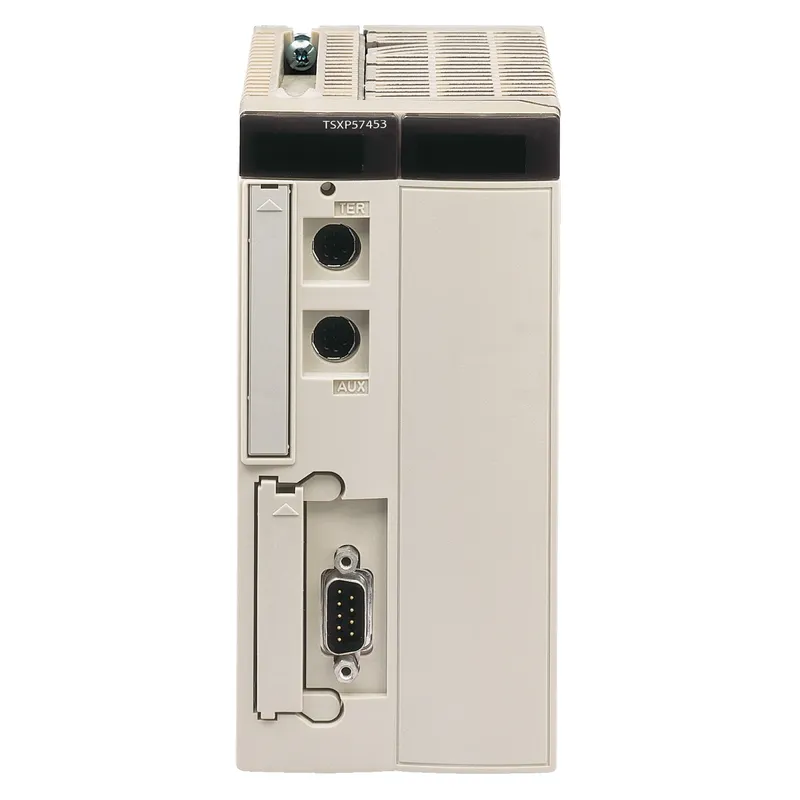

Schneider Electric TSXP57453AM – double-format PL7 processor - 1080 mA
Discontinued by Schneider Electric — we can still source the original TSXP57453AM (new, used or refurbished, subject to availability). Request a quote below.
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | Modicon Premium |
| Lifecycle | Discontinued |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
| Country of origin | FR |
| UPC / EAN | 3595863914382 |
| Recommended replacement | BMEP583020 |
| Datasheet | Manufacturer datasheet ↗ |
Shipping & availability
Can I still buy the TSXP57453AM now that it is discontinued?
Yes. Schneider Electric has discontinued the TSXP57453AM, but sourcing discontinued parts is what PartnerPLC specialises in — new old stock, used and refurbished units. Request a quote and we'll confirm availability, condition and lead time. If you are planning an upgrade instead, Schneider Electric names the BMEP583020 as its successor — we can quote both.
When can TSXP57453AM be shipped?
TSXP57453AM is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up TSXP57453AM in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for TSXP57453AM and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for TSXP57453AM, subject to availability and destination.
Schneider Electric TSXP57453AM — double-format PL7 processor - 1080 mA (Modicon Premium). Discontinued by Schneider Electric; the manufacturer's successor is BMEP583020. PartnerPLC sources discontinued and surplus Schneider Electric automation parts — request a quote for price, condition and lead time.
Specifications
Main
| Range of product | Modicon Premium Automation platform |
| Product or component type | Double-format PL7 processor |
| Software designation | PL7 Junior/Pro |
Complementary
| Number of racks | 16 4/6/8 slots; 8 12 slots |
| Number of slots | 96; 64; 128 |
| Discrete I/O processor capacity | 2040 I/O |
| Analogue I/O processor capacity | 256 I/O |
| Number of application specific channel | 64 |
| Number of process control channel | 20 up to 60 simple loops |
| Integrated connection type | Fipio manager (127 agents) SUB-D 9 connector; Non isolated serial link 2 female mini DIN connector (19.2/115 kbit/s) |
| Communication module processor capacity | 2 fieldbus modules (1 if CANopen used); 8 AS-Interface bus modules; 1 CANopen; 4 network module |
| Memory description | Internal RAM (with PCMCIA card) 176 Kwords data; Internal RAM (without PCMCIA card) 96 Kwords program and data; PCMCIA card 2048 Kwords additional data storage; PCMCIA card 992 Kwords program |
| Maximum size of object areas | 30.5 %MWi internal words located internal data; 32 %KWi constant words located internal data; 32768 %Mi located internal bits |
| Application structure | 64 event tasks; 1 fast task; 1 master task |
| Execution time per instruction | 0.06 µs Boolean with PCMCIA card; 0.06 µs Boolean without PCMCIA card; 0.08 µs word or fixed-point arithmetic with PCMCIA card; 0.08 µs word or fixed-point arithmetic without PCMCIA card; 1.7 µs floating points with PCMCIA card; 1.7 µs floating points without PCMCIA card |
| Number of instructions per ms | 13.82 Kinst/ms 100 % Boolean with PCMCIA card; 13.82 Kinst/ms 100 % Boolean without PCMCIA card; 8.8 Kinst/ms 65 % Boolean + 35 % fixed arithmetic with PCMCIA card; 8.8 Kinst/ms 65 % Boolean + 35 % fixed arithmetic without PCMCIA card |
| System overhead | 0.22 ms for fast task; 1.15 ms for master task |
| Marking | CE |
| Local signalling | 1 LED (green) for processor running (RUN); 1 LED (red) for activity on Fipio bus (FIP); 1 LED (red) for I/O module or configuration fault (I/O); 1 LED (red) for processor or system fault (ERR); 1 LED (yellow) for activity on the terminal port (TER) |
| Current consumption | 1080 mA at 5 V DC |
| Module format | Double |
| Net weight | 0.56 kg |
Environment
| Standards | 73/23/EEC; 93/68/EEC; CSA C22.2 No 142; 92/31/EEC; CSA C22.2 No 213 Class I Division 2 Group A; UL 508; IEC 61131-2; CSA C22.2 No 213 Class I Division 2 Group C; 89/336/EEC; CSA C22.2 No 213 Class I Division 2 Group B; CSA C22.2 No 213 Class I Division 2 Group D |
| Product certifications | BV; ABS; RINA; RMRS; DNV; GL; LR |
| Ambient air temperature for operation | 0…60 °C |
| Ambient air temperature for storage | -25…70 °C |
| Relative humidity | 10…95 % without condensation for operation; 5…95 % without condensation for storage |
| Operating altitude | 0...2000 m |
| Protective treatment | TC |
| IP degree of protection | IP20 |
| Pollution degree | 2 |
Downloads & documentation
Official documents from Schneider Electric, downloaded directly from the manufacturer.
Data sheets & manuals
| Product data sheet TSXP57453AM |
