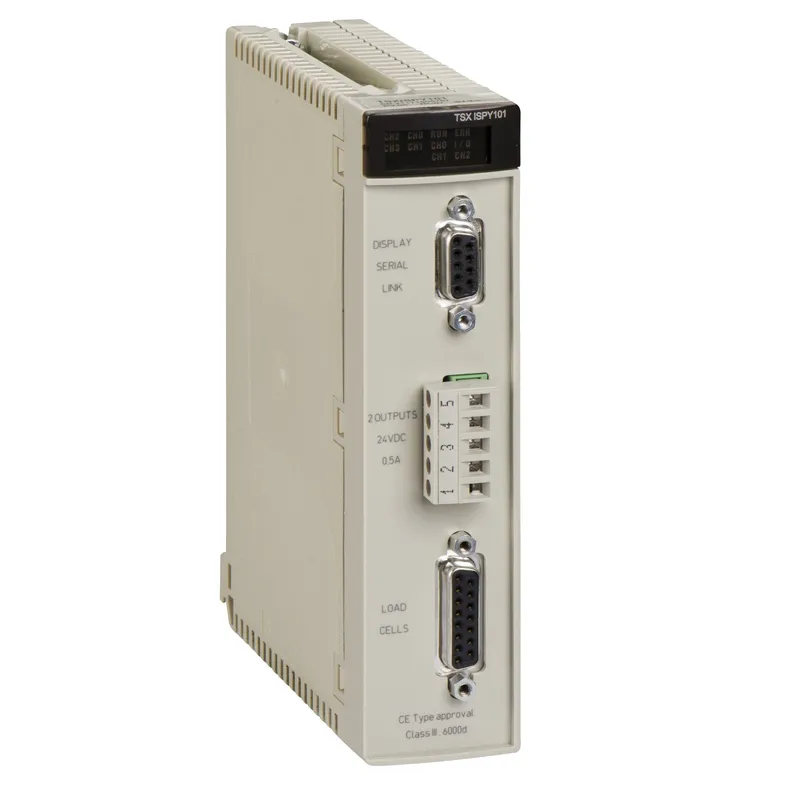

Schneider Electric TSXISPY101EX – ISP Plus weighing module - 50 measurements per second - 10 V DC

Name: Schneider Electric TSXISPY101EX – ISP Plus weighing module - 50 measurements per second - 10 V DC
Brand: Schneider Electric
SKU: TSXISPY101EX

MPN: TSXISPY101EX · Brand: Schneider Electric

Price on request

Discontinued by Schneider Electric — we can still source the original TSXISPY101EX (new, used or refurbished, subject to availability). Request a quote below.

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)

30-day returns, no restocking fee on unused parts

Ships via

Quick facts

Availability	Confirmed on request
Category	Modicon Premium
Lifecycle	Discontinued
Warranty	12-month (new) · 3-month (used/refurbished)
UPC / EAN	3595862014281
Datasheet	Manufacturer datasheet ↗

Shipping & availability

Can I still buy the TSXISPY101EX now that it is discontinued?

Yes. Schneider Electric has discontinued the TSXISPY101EX, but sourcing discontinued parts is what PartnerPLC specialises in — new old stock, used and refurbished units. Request a quote and we'll confirm availability, condition and lead time.

When can TSXISPY101EX be shipped?

TSXISPY101EX is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up TSXISPY101EX in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for TSXISPY101EX and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for TSXISPY101EX, subject to availability and destination.

Schneider Electric TSXISPY101EX — ISP Plus weighing module - 50 measurements per second - 10 V DC (Modicon Premium). Discontinued by Schneider Electric. PartnerPLC sources discontinued and surplus Schneider Electric automation parts — request a quote for price, condition and lead time.

Specifications

Main

Range of product	Modicon Premium Automation platform
Product or component type	ISP Plus weighing module

Complementary

Product destination	In conjunction with products for zone 21 or 22
Number of measurement input	1
Resolution	1048576 points
Analogue input resolution	20 bits
Measuring rate	50 measurements per second
Input impedance	> 1 MOhm
Input compatibility	Load cell 1…8 350 Ohm yes <300 m
Sensor power supply	10 V DC
Output compatibility	Discrete reflex 2 positive
Discrete output voltage	24 V DC
Discrete output current	500 mA
Response time on output	1 ms
Transmission rate	9.6 kbit/s RS485 non isolated <= 30 m discrete reflex weight indicator
Voltage division	1 µV
Electrical connection	1 connector screw terminal block for connecting 2 discrete reflex; 1 female connector SUB-D 15 for the indicator input; 1 female connector SUB-D 9 for RS485 serial link to the weight indicator
Marking	II2 G/D-EEx ib IIB T6; II2 G/D-EEx ib IIC T6; CE
Current consumption	145 mA at 24 V rack; 150 mA at 5 V DC
Module format	Standard
Net weight	0.42 kg

Environment

Ambient air temperature for operation	0…60 °C
Ambient air temperature for storage	-25…70 °C
Relative humidity	10…95 % without condensation for operation; 5…95 % without condensation for storage
Operating altitude	0...2000 m
Standards	EN 50020; Directive ATEX 94/9/EC; EN 50014; EN 50281-1-1; EN 50284; EN 50039
Dust zone	Outside zone
Product certifications	LCIE 03ATEX6399X
