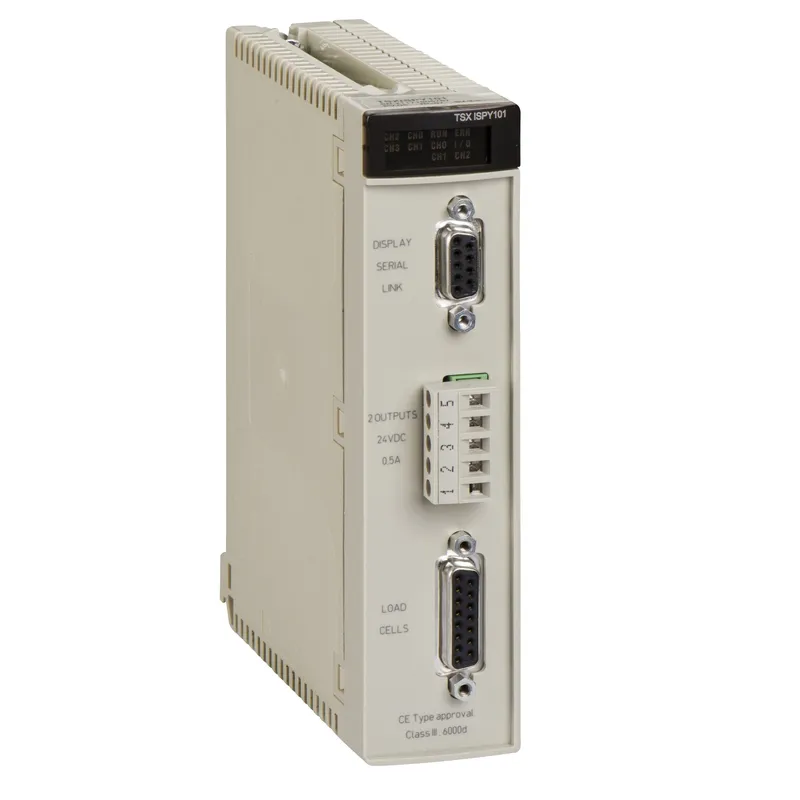

Schneider Electric TSXISPY100 – ISP Plus weighing module - 50 measurements per second - 10 V DC

Name: Schneider Electric TSXISPY100 – ISP Plus weighing module - 50 measurements per second - 10 V DC
Brand: Schneider Electric
SKU: TSXISPY100

MPN: TSXISPY100 · Brand: Schneider Electric

Price on request

Discontinued by Schneider Electric — we can still source the original TSXISPY100 (new, used or refurbished, subject to availability). Request a quote below.

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)

30-day returns, no restocking fee on unused parts

Ships via

Quick facts

Availability	Confirmed on request
Category	Modicon Premium
Lifecycle	Discontinued
Warranty	12-month (new) · 3-month (used/refurbished)
UPC / EAN	3389110760880
Datasheet	Manufacturer datasheet ↗

Shipping & availability

Can I still buy the TSXISPY100 now that it is discontinued?

Yes. Schneider Electric has discontinued the TSXISPY100, but sourcing discontinued parts is what PartnerPLC specialises in — new old stock, used and refurbished units. Request a quote and we'll confirm availability, condition and lead time.

When can TSXISPY100 be shipped?

TSXISPY100 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up TSXISPY100 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for TSXISPY100 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for TSXISPY100, subject to availability and destination.

Schneider Electric TSXISPY100 — ISP Plus weighing module - 50 measurements per second - 10 V DC (Modicon Premium). Discontinued by Schneider Electric. PartnerPLC sources discontinued and surplus Schneider Electric automation parts — request a quote for price, condition and lead time.

Specifications

Main

Range of product	Modicon Premium Automation platform
Product or component type	ISP Plus weighing module

Complementary

Number of measurement input	1
Resolution	1048576 points
Analogue input resolution	20 bits
Measuring rate	50 measurements per second
Input impedance	> 1 MOhm
Input compatibility	Load cell 1…8 350 Ohm yes <300 m
Sensor power supply	10 V DC
Output compatibility	Discrete reflex 2 positive
Discrete output voltage	24 V DC
Discrete output current	500 mA
Response time on output	1 ms
Transmission rate	9.6 kbit/s RS485 non isolated <= 30 m discrete reflex weight indicator
Voltage division	1 µV
Electrical connection	1 connector screw terminal block for connecting 2 discrete reflex; 1 female connector SUB-D 15 for the indicator input; 1 female connector SUB-D 9 for RS485 serial link to the weight indicator
Marking	CE
Current consumption	145 mA at 24 V rack; 150 mA at 5 V DC
Module format	Standard
Net weight	0.42 kg

Environment

Ambient air temperature for operation	0…60 °C
Ambient air temperature for storage	-25…70 °C
Relative humidity	10…95 % without condensation for operation; 5…95 % without condensation for storage
Operating altitude	0...2000 m
Product certifications	SDM No 97.06
