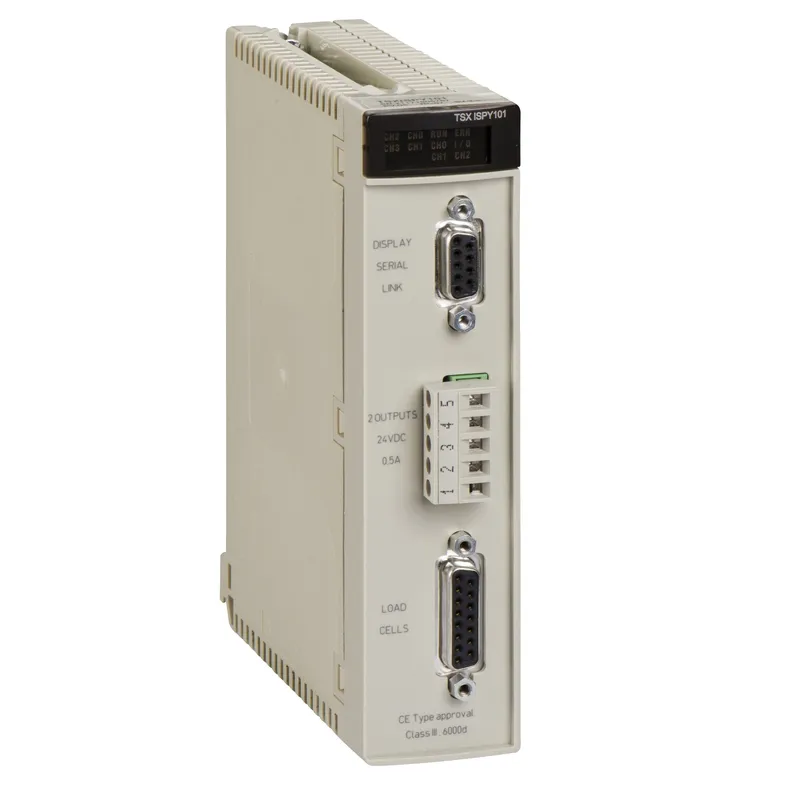

Schneider Electric TSXISPY101
ISP Plus weighing module, Modicon Premium, 20 bits resolution, 150mA at 5VDC, 50 measurements per second
- MPN
- TSXISPY101
- EAN
- 3595862046909
- Category
- Modicon Premium
Price and lead time confirmed within 1 business day
Discontinued by Schneider Electric — we can still source the original TSXISPY101 (new, used or refurbished, subject to availability). Request a quote below.
Request a Quote
- 1We check stock, condition and lead time
- 2You get a written quote by email
- 3Approve it and we ship — in-stock parts within 1 business day
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- 100% positive eBay feedback
- Ships via
What is the Schneider Electric TSXISPY101?
Schneider Electric TSXISPY101 — ISP Plus weighing module, Modicon Premium, 20 bits resolution, 150mA at 5VDC, 50 measurements per second. Discontinued by Schneider Electric; the manufacturer's successor is PMESWT0100. PartnerPLC sources discontinued and surplus Schneider Electric automation parts — request a quote for price, condition and lead time.
Specifications
Main
| Range of product | Modicon Premium Automation platform |
| Product or component type | ISP Plus weighing module |
Complementary
| Number of measurement input | 1 |
| Resolution | 1048576 points |
| Analogue input resolution | 20 bits |
| Measuring rate | 50 measurements per second |
| Input impedance | > 1 MOhm |
| Input compatibility | Load cell 1…8 350 Ohm yes <300 m |
| Sensor power supply | 10 V DC |
| Output compatibility | Discrete reflex 2 positive |
| Discrete output voltage | 24 V DC |
| Discrete output current | 500 mA |
| Response time on output | 1 ms |
| Transmission rate | 9.6 kbit/s RS485 non isolated <= 30 m discrete reflex weight indicator |
| Voltage division | 1 µV |
| Electrical connection | 1 connector screw terminal block for connecting 2 discrete reflex; 1 female connector SUB-D 15 for the indicator input; 1 female connector SUB-D 9 for RS485 serial link to the weight indicator |
| Marking | CE |
| Current consumption | 145 mA at 24 V rack; 150 mA at 5 V DC |
| Module format | Standard |
| Net weight | 0.42 kg |
Environment
| Ambient air temperature for operation | 0…60 °C |
| Ambient air temperature for storage | -25…70 °C |
| Relative humidity | 10…95 % without condensation for operation; 5…95 % without condensation for storage |
| Operating altitude | 0...2000 m |
| Product certifications | SDM No 97.06 |
No matching specifications
Downloads & documentation
Official documents from Schneider Electric, downloaded directly from the manufacturer.
Data sheets & manuals
TSXISPY101: frequently asked questions
Can I still buy the TSXISPY101 now that it is discontinued?
Yes. Schneider Electric has discontinued the TSXISPY101, but sourcing discontinued parts is what PartnerPLC specialises in — new old stock, used and refurbished units. Request a quote and we'll confirm availability, condition and lead time. If you are planning an upgrade instead, Schneider Electric names the PMESWT0100 as its successor — we can quote both.
When can TSXISPY101 be shipped?
TSXISPY101 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up TSXISPY101 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for TSXISPY101 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for TSXISPY101, subject to availability and destination.
