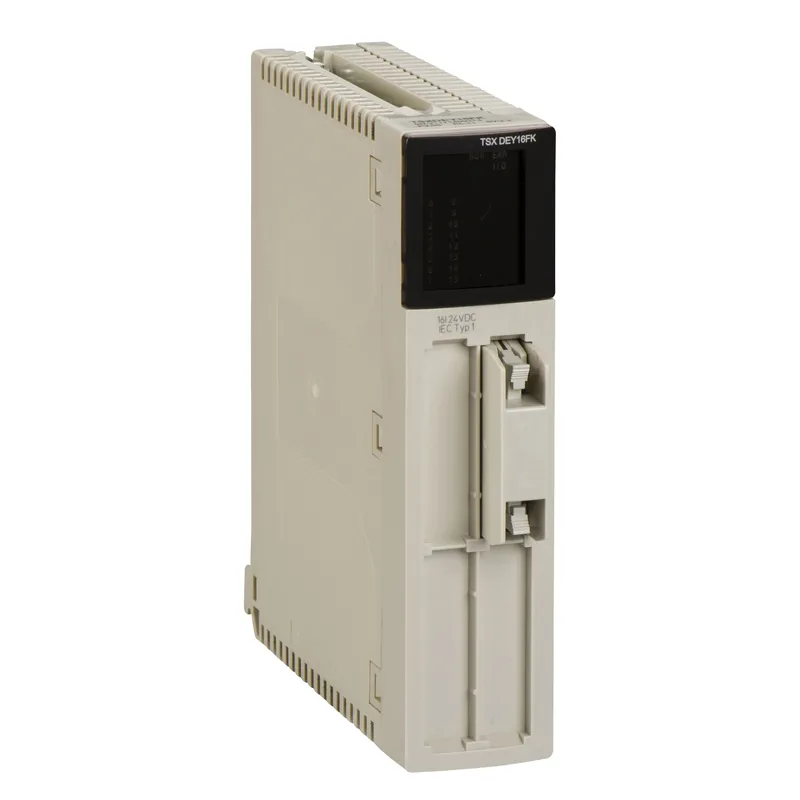

Schneider Electric TSXDEY16FK
Discrete input module Modicon Premium - 16 I 24 V DC
- MPN
- TSXDEY16FK
- EAN
- 3389110725513
- Category
- Modicon Premium
Price and lead time confirmed within 1 business day
Discontinued by Schneider Electric — we can still source the original TSXDEY16FK (new, used or refurbished, subject to availability). Request a quote below.
Request a Quote
- 1We check stock, condition and lead time
- 2You get a written quote by email
- 3Approve it and we ship — in-stock parts within 1 business day
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- 100% positive eBay feedback
- Ships via
What is the Schneider Electric TSXDEY16FK?
Schneider Electric TSXDEY16FK — discrete input module Modicon Premium - 16 I 24 V DC. Discontinued by Schneider Electric. PartnerPLC sources discontinued and surplus Schneider Electric automation parts — request a quote for price, condition and lead time.
Specifications
Main
| Range of product | Modicon Premium Automation platform |
| Product or component type | Discrete input module |
| Discrete input number | 16 current sink isolated fast conforming to EN/IEC 61131-2 type 1 |
| Discrete input voltage | 24 V DC positive |
| Sensor power supply | 19…30 V |
| Discrete input current | 3.5 mA |
Complementary
| Voltage state 1 guaranteed | >= 11 V |
| Current state 1 guaranteed | >= 3 mA |
| Voltage state 0 guaranteed | <= 5 V |
| Current state 0 guaranteed | <= 1.5 mA |
| Input impedance | 6300 Ohm at state 1 |
| Response time | 0.1...7.5 ms |
| isalotion resistance | < 10 MOhm 500 V DC |
| Power dissipation | (1.2 W + 0.1 W x No of channels used) |
| Electrical connection | HE-10 connector |
| Marking | CE |
| Current consumption | 250 mA at 5 V DC; 75 mA at 24 V DC |
| Module format | Standard |
| Net weight | 0.3 kg |
Environment
| Dielectric strength | 1500 V AC at 50/60 Hz |
| Standards | CSA C22.2 No 213 Class I Division 2 Group A; 92/31/EEC; UL 508; EN/IEC 61131-2; CSA C22.2 No 213 Class I Division 2 Group B; CSA C22.2 No 213 Class I Division 2 Group C; CSA C22.2 No 213 Class I Division 2 Group D; 93/68/EEC; 89/336/EEC; 73/23/EEC; CSA C22.2 No 142; IEC 60664 |
| Product certifications | BV; DNV; ABS; RINA; GL; LR; RMRS |
| Ambient air temperature for operation | 0…60 °C |
| Ambient air temperature for storage | -25…70 °C |
| Relative humidity | 10…95 % without condensation for operation; 5…95 % without condensation for storage |
| Operating altitude | 0...2000 m |
| Protective treatment | TC |
| IP degree of protection | IP20 |
| Pollution degree | 2 |
No matching specifications
Downloads & documentation
Official documents from Schneider Electric, downloaded directly from the manufacturer.
Data sheets & manuals
TSXDEY16FK: frequently asked questions
Can I still buy the TSXDEY16FK now that it is discontinued?
Yes. Schneider Electric has discontinued the TSXDEY16FK, but sourcing discontinued parts is what PartnerPLC specialises in — new old stock, used and refurbished units. Request a quote and we'll confirm availability, condition and lead time.
When can TSXDEY16FK be shipped?
TSXDEY16FK is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up TSXDEY16FK in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for TSXDEY16FK and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for TSXDEY16FK, subject to availability and destination.
