Schneider Electric TSXCDP303

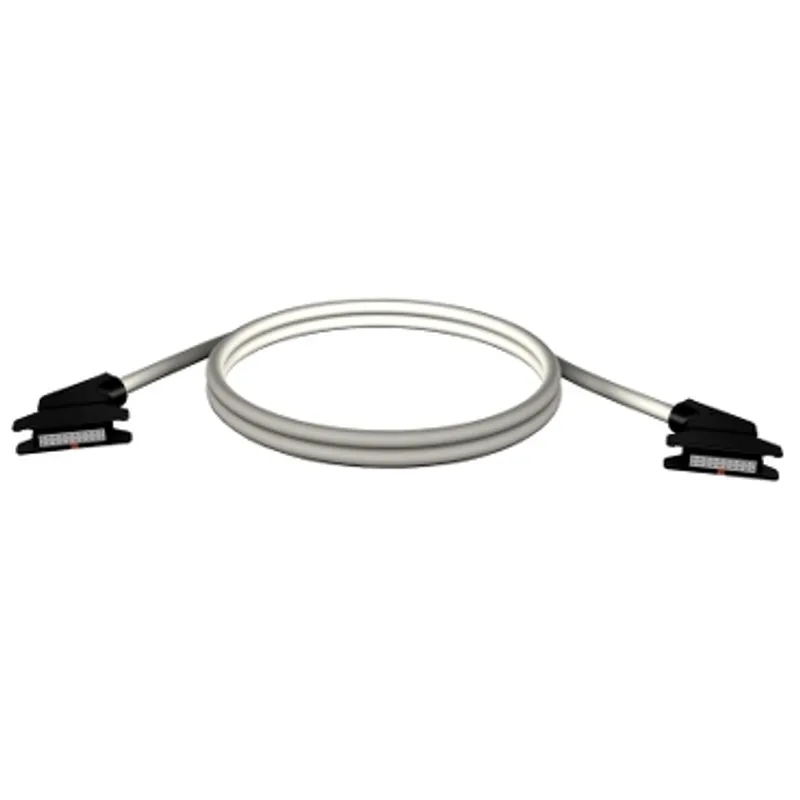

Connecting cable - Modicon Premium - 3 m - for sub-base ABE7H16R20

MPN: TSXCDP303
EAN: 3389110647792
Category: Modicon Quantum

Price and lead time confirmed within 1 business day

Request a Quote

1We check stock, condition and lead time
2You get a written quote by email
3Approve it and we ship — in-stock parts within 1 business day

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
100% positive eBay feedback
Ships via

Have spare Schneider Electric parts? We buy surplus →

What is the Schneider Electric TSXCDP303?

"This connecting cable is part of the Modicon Premium range, an offer of PLC for process applications, high availability and safety solutions." "The cable features HE10 20-way connectors at both module and PLC ends." "The cable is 3 meter long." "This cable allows communication between ABE7 passive connection sub-base and actuators, sensors through relays." "This cable has PVC jacket." "It is designed to connect ABE7H16R20 sub-base." "Modicon Premium products build a high-level multitasking system." "Modicon Premium products are specially designed for complex and special machines, manufacturing processes, and infrastructure."

Specifications

Range of product	Modicon Premium
Accessory / separate part designation	Connecting cable
Accessory / separate part type	Connecting cable
Accessory / separate part category	Connection accessories
Accessory / separate part destination	Sub-base ABE7H16R20
Product compatibility	TSXCTY4A, TSXCFY21, TSXCTY2C, TSXCAY, TSXCCY1128, TSXCFY11, TSXCTY2A
Cable length	3 m
Electrical connection	1 connector HE10, 20 ways for module side, 1 connector HE10, 20 ways for PLC side
Wire section	0.324 mm²
AWG gauge	AWG 22
Net weight	0.41 kg

Packaging

Package 1	1 PCE, 22.000 cm × 20.000 cm × 4.500 cm (L × W × H), 467.000 g
Package 2	10 S02, 40.000 cm × 30.000 cm × 15.000 cm (L × W × H), 4.975 kg

Downloads & documentation

Official documents from Schneider Electric, downloaded directly from the manufacturer.

Data sheets & manuals

Product data sheet TSXCDP303PDF

TSXCDP303: frequently asked questions

When can TSXCDP303 be shipped?

TSXCDP303 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up TSXCDP303 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for TSXCDP303 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for TSXCDP303, subject to availability and destination.
