Schneider Electric TSXCDP503

Connecting cable - Modicon Premium - 5 m - for sub-base ABE7H16R20

MPN: TSXCDP503
EAN: 3389110648614
Category: Modicon Quantum

Price and lead time confirmed within 1 business day

Request a Quote

1We check stock, condition and lead time
2You get a written quote by email
3Approve it and we ship — in-stock parts within 1 business day

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
100% positive eBay feedback
Ships via

Have spare Schneider Electric parts? We buy surplus →

What is the Schneider Electric TSXCDP503?

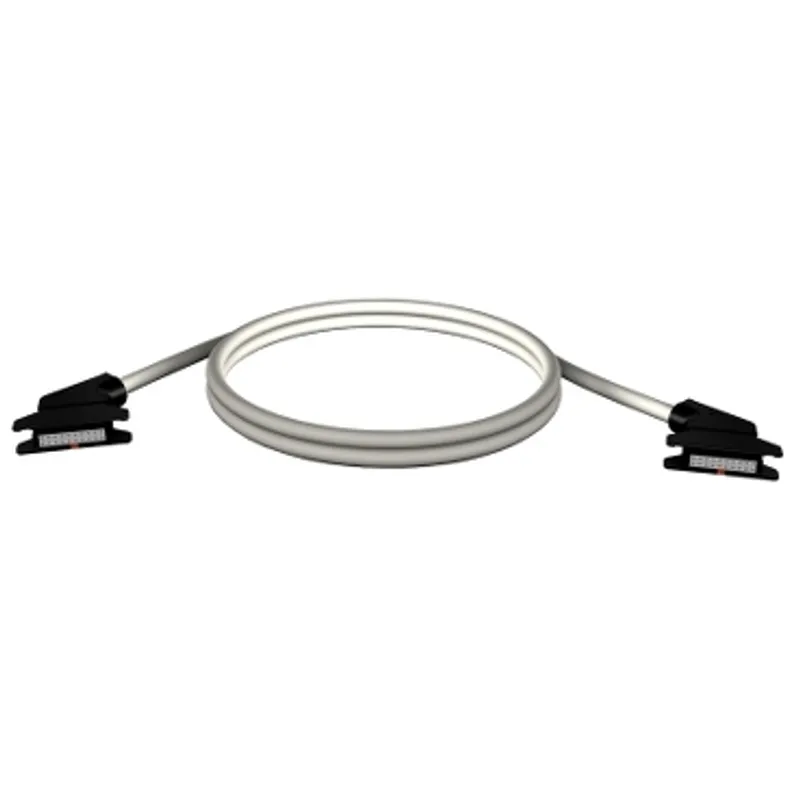

Schneider Electric connecting cable - Modicon Premium - 5 m - for sub-base ABE7H16R20, manufacturer part number TSXCDP503. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

Range of product	Modicon Premium
Accessory / separate part designation	Connecting cable
Accessory / separate part type	Connecting cable
Accessory / separate part category	Connection accessories
Accessory / separate part destination	Sub-base ABE7H16R20
Product compatibility	TSXCFY21, TSXCTY4A, TSXCTY2A, TSXCCY1128, TSXCAY, TSXCFY11, TSXCTY2C
Cable length	5 m
Electrical connection	1 connector HE10, 20 ways for module side, 1 connector HE10, 20 ways for PLC side
Wire section	0.324 mm²
AWG gauge	AWG 22
Net weight	0.67 kg

Packaging

Package 1	1 PCE, 25.000 cm × 23.500 cm × 6.500 cm (L × W × H), 730.000 g
Package 2	6 S02, 40.000 cm × 30.000 cm × 15.000 cm (L × W × H), 4.706 kg
