Schneider Electric TSXCDP203

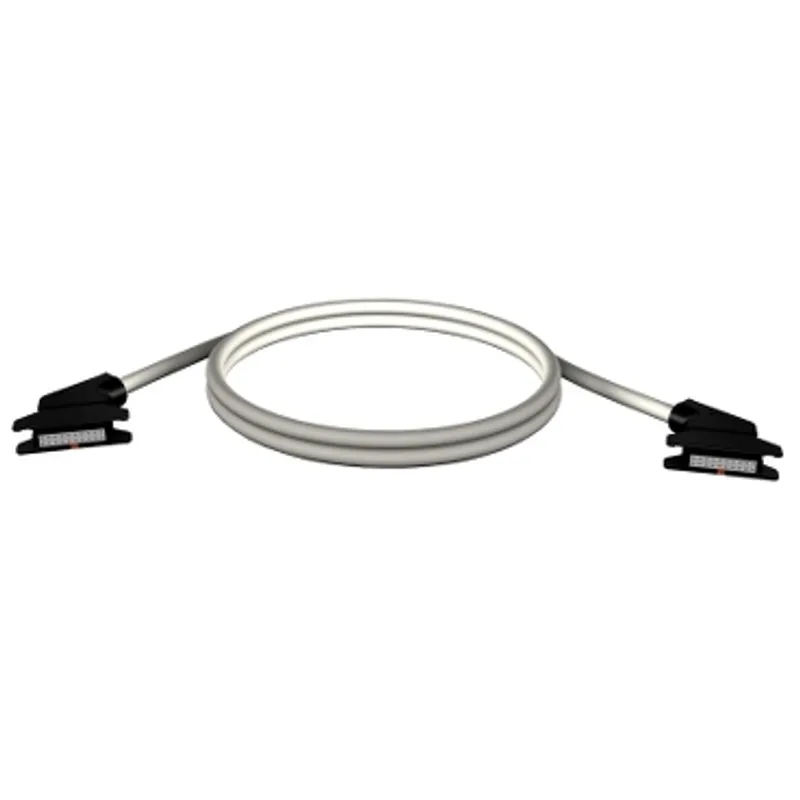

Connecting cable - Modicon Premium - 2 m - for sub-base ABE7H16R20

MPN: TSXCDP203
EAN: 3389110647778
Category: Modicon Quantum

Price and lead time confirmed within 1 business day

Request a Quote

1We check stock, condition and lead time
2You get a written quote by email
3Approve it and we ship — in-stock parts within 1 business day

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
100% positive eBay feedback
Ships via

Have spare Schneider Electric parts? We buy surplus →

What is the Schneider Electric TSXCDP203?

"This connecting cable is part of the Modicon Premium range, an offer of PLC for process applications, high availability and safety solutions." "The cable features HE10 20-way connectors at both module and PLC ends." "The cable is 2 meter long." "This cable allows communication between ABE7 passive connection sub-base and actuators, sensors through relays." "This cable has PVC jacket." "It weighs 0.28kg." "It is designed to connect ABE7H16R20 sub-base." "Modicon Premium products build a high-level multitasking system." "Modicon Premium products are specially designed for complex and special machines, manufacturing processes, and infrastructure."

Specifications

Range of product	Modicon Premium
Accessory / separate part designation	Connecting cable
Accessory / separate part type	Connecting cable
Accessory / separate part category	Connection accessories
Accessory / separate part destination	Sub-base ABE7H16R20
Product compatibility	TSXCFY11, TSXCAY, TSXCFY21, TSXCTY2C, TSXCTY4A, TSXCTY2A, TSXCCY1128
Cable length	2 m
Electrical connection	1 connector HE10, 20 ways for module side, 1 connector HE10, 20 ways for PLC side
Wire section	0.324 mm²
AWG gauge	AWG 22
Net weight	0.28 kg

Packaging

Package 1	1 PCE, 25.000 cm × 25.000 cm × 4.000 cm (L × W × H), 325.000 g
Package 2	10 S02, 40.000 cm × 30.000 cm × 15.000 cm (L × W × H), 3.620 kg

Downloads & documentation

Official documents from Schneider Electric, downloaded directly from the manufacturer.

Data sheets & manuals

Product data sheet TSXCDP203PDF
