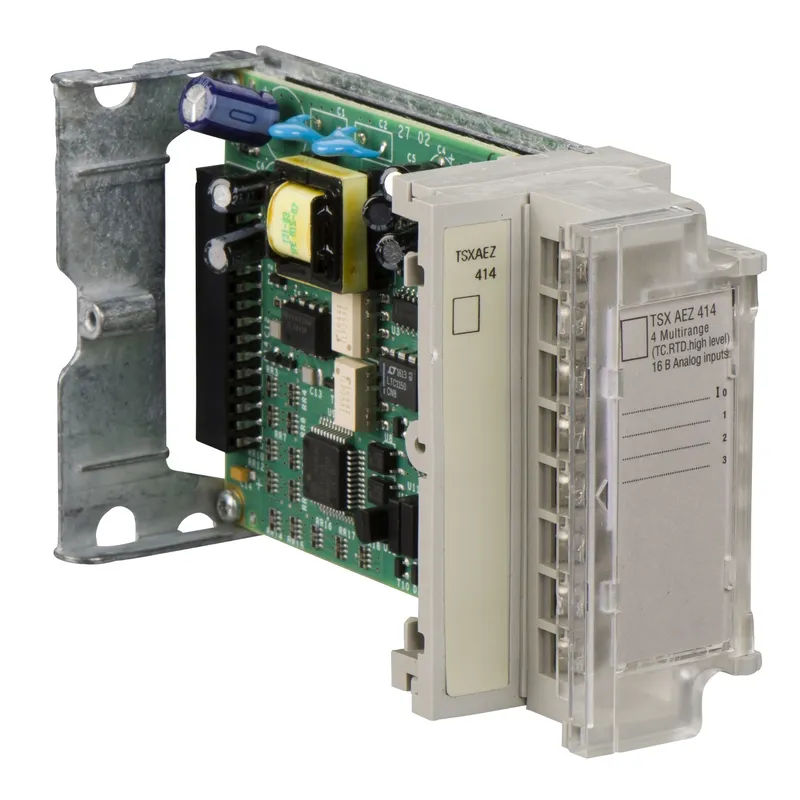

Schneider Electric TSXAEZ414 – TSX Micro - Thermocouples, temperature probes, high level
Discontinued by Schneider Electric — we can still source the original TSXAEZ414 (new, used or refurbished, subject to availability). Request a quote below.
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | Modicon TSX Micro |
| Lifecycle | Discontinued |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
| Country of origin | FR |
| UPC / EAN | 3389110604511 |
| Datasheet | Manufacturer datasheet ↗ |
Shipping & availability
Can I still buy the TSXAEZ414 now that it is discontinued?
Yes. Schneider Electric has discontinued the TSXAEZ414, but sourcing discontinued parts is what PartnerPLC specialises in — new old stock, used and refurbished units. Request a quote and we'll confirm availability, condition and lead time.
When can TSXAEZ414 be shipped?
TSXAEZ414 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up TSXAEZ414 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for TSXAEZ414 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for TSXAEZ414, subject to availability and destination.
This product is part of the Modicon TSX Micro range, an offer of Programmable Logic Controllers (PLC). This analogue input module has 4 channels with 16bit analogue/digital conversion. It is an input module with a current consumption of 85mA and an isolation voltage of 500V AC. It weighs 0.21kg. It is suitable for infrastructures, machine and manufacturing control applications. The automation platform designed to enhance system's performance. With Micro's accuracy, flexibility and increased productivity, you have a real partner at the heart of the machine. Discontinued by Schneider Electric. PartnerPLC sources discontinued and surplus Schneider Electric automation parts — request a quote for price, condition and lead time.
Specifications
Main
| Range of product | Modicon TSX Micro automation platform |
| Product or component type | Analog input module |
| Number of channels | 4 |
| Analogue input type | High level; Temperature probe; Thermocouple |
Complementary
| Analog/digital conversion | 16 bits |
| Acquisition period | 520 ms |
| Temperature drift | 0.08 %/10 °C voltage circuit; 0.01 %/10 °C current circuit |
| Input impedance | 10 Ohm |
| Current consumption | 85 mA |
| Isolation voltage | 500 V AC |
| Net weight | 0.21 kg |
Downloads & documentation
Official documents from Schneider Electric, downloaded directly from the manufacturer.
Data sheets & manuals
| Product data sheet TSXAEZ414 |
