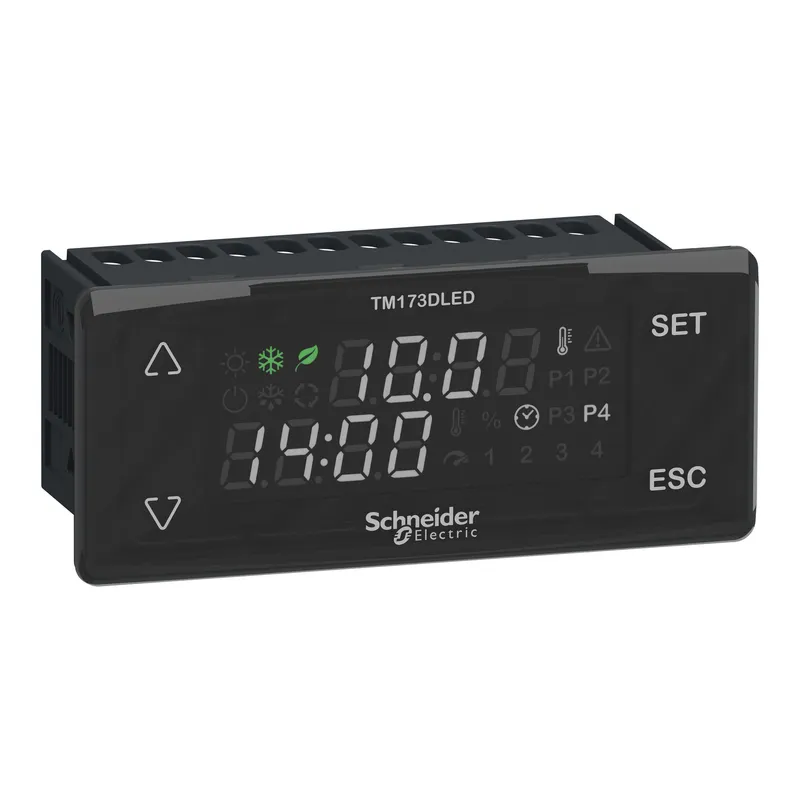

Schneider Electric TM173DLED

Remote Display, Modicon M171/M172/M173, flush mounted optimized display

MPN: TM173DLED
EAN: 3606487045540
Category: Modicon M171/M172/M173

Price and lead time confirmed within 1 business day

Request a Quote

1We check stock, condition and lead time
2You get a written quote by email
3Approve it and we ship — in-stock parts within 1 business day

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
100% positive eBay feedback
Ships via

Have spare Schneider Electric parts? We buy surplus →

What is the Schneider Electric TM173DLED?

This remote display is part of the Modicon M171/M172/M173 range, a control offer for HVAC/Pumping applications. This remote display is designed for M173 Optimized logic controllers. It is a LED display, with one Propriotary LAN bus port for connection to the controller. It provides remote view and control of the information to monitor. It is powered by the controller It has a 4-button keyboard. It measures 74mm wide, 30mm deep, 32mm high, and weighs 0.120kg. This remote display is designed for HVAC and pumping controllers. It is certified by CE, cURus (UL Recognized), CSA, EAC, RCM, RoHS China, and UKCA. It is compatible with any TM173O DIN version. It is sold in a 1-piece package It is designed for panel mounting. Modicon M171/M172/M173 controllers are designed for complete automation solutions for HVAC and Pumping machines. Modicon M171/M172/M173 range is for OEMs and helps to maximize profitability or energy efficiency in HVAC and pumping applications. PartnerPLC sources new and surplus Schneider Electric automation parts — request a quote for price, condition and lead time.

Specifications

Main

Range of product	Modicon M171/M172/M173
Product or component type	Display module
Display colour	Monochrome
Supply	External source

Complementary

Display type	2 x 7-segment LED
Number of key	4
Colour	White
[Us] rated supply voltage	24 V AC/DC
Marking	CE; UL
Overvoltage category	II
Height	80.5 mm
Width	34.5 mm
Depth	34.6 mm
Net weight	0.041 kg

Environment

Standards	UL 94; EN 60730-1; EN 60730-2-9
Product certifications	UKCA; UL; CSA
Ambient air temperature for operation	-20…65 °C
Ambient air temperature for storage	-40…70 °C
IP degree of protection	IP65
Pollution degree	2
