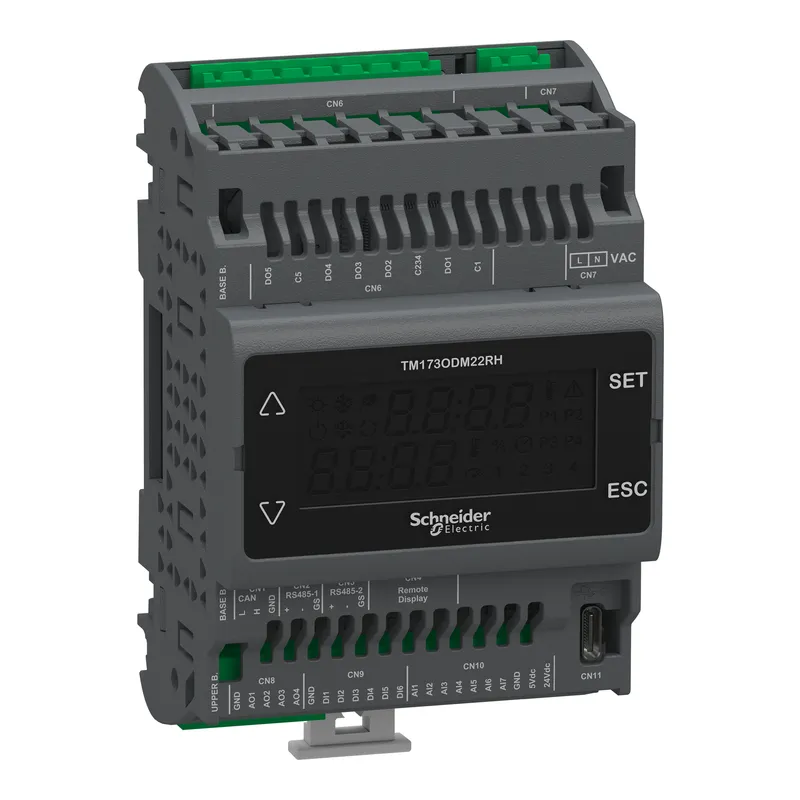

Schneider Electric TM173ODM22RH – Controller, Modicon M171/M172/M173, optimized display, 22 IO, 2 RS485, 230V AC

Name: Schneider Electric TM173ODM22RH – Controller, Modicon M171/M172/M173, optimized display, 22 IO, 2 RS485, 230V AC
Brand: Schneider Electric
SKU: TM173ODM22RH

MPN: TM173ODM22RH · Brand: Schneider Electric

Price on request

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)

30-day returns, no restocking fee on unused parts

Ships via

Quick facts

Availability	Confirmed on request
Category	Modicon M171/M172/M173
Lifecycle	Active
Warranty	12-month (new) · 3-month (used/refurbished)
UPC / EAN	3606487045557
Datasheet	Manufacturer datasheet ↗

Shipping & availability

When can TM173ODM22RH be shipped?

TM173ODM22RH is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up TM173ODM22RH in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for TM173ODM22RH and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for TM173ODM22RH, subject to availability and destination.

This logic controller is part of the Modicon M171/M172/M173 range, a control offer for HVAC/Pumping applications. It figures 6 digital inputs, 7 analog inputs, 5 digital outputs, 4 analog outputs, and a display. This programmable controller embeds 2 RS-485 communication ports and 1 CAN expansion bus ports. It is a 230Vac programmable logic controller for HVAC and Pumping applications. DIs are volt-free, pulse reading (up to 2kHz), and AIs are NTC (b3435 - 10kW), PT1000, 0-10V, 4-20mA, 5V, 10V. DOs are relay 3A SPST with the same common, and AOs are 0-10V/4-20mA, 0-10V/PWM (10Hz to 2kHz). It measures 72mm wide, 60mm deep, 110mm high, and weighs 0.265kg. This controller is designed for HVAC and pumping applications. It is certified by CE, cURus (UL Recognized), CSA, RCM, RoHS China, and UKCA. It is compatible with IO expansion modules and Secure Interfaces. It is sold in a one-piece package. It is designed for 35mm DIN rail mounting. Modicon M171/M172/M173 controllers are designed for complete automation solutions for HVAC and Pumping machines. The Modicon M171/M172/M173 range is for OEMs and helps to maximize profitability or energy efficiency in HVAC & Pumping applications. PartnerPLC sources new and surplus Schneider Electric automation parts — request a quote for price, condition and lead time.

Specifications

Main

Range of product	Modicon M171/M172/M173
Product or component type	Programmable controllers
Product specific application	HVAC and pumping solution
Variant	Programmable
Total inputs/outputs	22
Discrete input number	6
Discrete output number	3 for relay outputs SPST with same common; 2 for relay outputs SPST with independent common
Discrete output current	3 A for relay SPST
Analogue input number	6 configurable by pair; 1 configurable
Analogue output number	1 voltage/current, range: 0…10 V or 4…20 mA; 3 voltage, range: 0...10 V or PWM (10Hz...2 kHz)

Complementary

Number of port	1 CAN port - screw terminal block; 1 USB type C; 2 RS485 - screw terminal block (Modbus serial link); 1 display port - TTL connector; 1 communication module port
Input/output number	6 digital input(s); 5 digital output(s); 7 analog input(s); 4 analog output(s)
Discrete input logic	Sink or source (positive/negative)
Contacts usage	Volt-free contacts
Discrete input voltage	24 V AC/DC
Discrete input current	2.5 mA
Input impedance	20 kOhm
Analogue input type	NTC 103AT-2 Beta 3435 temperature probe - 50...100 °C - resolution: 0.1 °C at 10 kOhm; Pt 1000 temperature probe - 50...400 °C - resolution: 0.1 °C at 2 kOhm; voltage 0...10 V - resolution: 0.001 V at > 10 kOhm; voltage 0...5 V - resolution: 0.001 V at 110 kOhm; current 4...20 mA - resolution: 13 bits at 100 Ohm; direct input at > 10 kOhm
Measurement accuracy	NTC NK103 Beta 3977 - 40...+110 °C +/- 1 °C; NTC NK103 Beta 3977 110...137 °C +/- 1.9 °C; NTC 103AT-2 Beta 3435 - 50…110 °C +/- 1 °C; PTC - 55...155 °C +/- 1.1 °C; Pt 1000 - 100...-50 °C +/- 5 °C; Pt 1000 - 50...100 °C +/- 1 °C; Pt 1000 100…400 °C +/- 5 °C; 0...20 mA 0...4 mA +/- 2 % of full scale +/- 1 digit; 0...20 mA 4...20 mA +/- 1 % of full scale +/- 1 digit; 4...20 mA +/- 1 % of full scale +/- 1 digit; 0...10 V +/- 1 % of full scale +/- 1 digit; 0...5 V +/- 1 % of full scale +/- 1 digit; HOhm 0...1500 hOhm +/- 8.5 hOhm; DaOhm 0...300 daOhm +/- 2.5 daOhm
Sensor power supply	5 V DC at 50 mA supplied by the controller; 24 V DC at 125 mA supplied by the controller
[Us] rated supply voltage	230 V AC
Power consumption in W	10 W at 24 V AC
Realtime clock	Built-in clock, clock drift <= 30 s/month at -20…65 °C
Display type	LED
Memory type	1 MB flash; 380 kB RAM
Overvoltage category	II
Local signalling	1 LED (green) for USB pendrive download status
Mounting support	Panel mounting with accessory; DIN rail
Width	72 mm
Height	110 mm
Depth	60 mm
Net weight	0.180 kg

Environment

Directives	2014/30/EU - electromagnetic compatibility; 2014/35/EU - low voltage directive
Standards	CAN/CSA-E60730-1; CSA E60730-2-9; EN 60068-2-27; EN 60068-2-6 Fc; EN 60730-1; EN 60730-2-9; UL 60730-1; UL 60730-2-9; IEC 61000-4-2; IEC 61000-4-3; IEC 61000-4-4; IEC 61000-4-5; IEC 61000-4-6; IEC 61000-4-11; UL94 (material V0)
Product certifications	EAC (pending); CE; cURus; CSA; RCM (pending)
Ambient air temperature for operation	-20…65 °C conforming to UL 60730-1; conforming to EN 60730-1; conforming to EN 60730-2-9
Ambient air temperature for storage	-30…70 °C
Relative humidity	5…95 % non-condensing
IP degree of protection	IP20 conforming to EN/IEC 60730
Pollution degree	2
Operating altitude	0...2000 m
