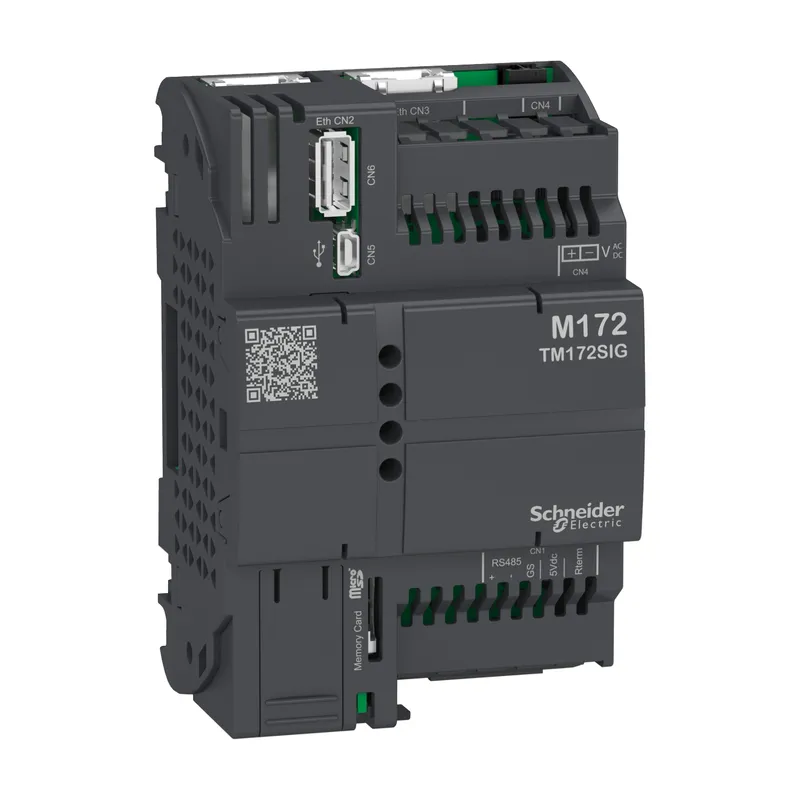

Schneider Electric TM172SIG – M172 IIoT Secure Interface Gateway

"This Secure interface is part of the Modicon M171/M172/M173 range, a control offer for HVAC/Pumping applications." "This IIoT Secure interface gateway is designed to establish a secure Internet connection and to connect unsafe devices to a secure Ethernet network." "It runs on 24Vac 50/60 Hz or 20…38Vdc power supply and gets a double Ethernet port with switch capabilities." "The Secure interface Gateway ensures a cyberSecure connection to M172 and M171 Optimized controllers, including Modbus devices." "It is fit with a RS485 serial port, to communicate with a controller via Modbus RTU connection, and supplied with removable terminal blocks fbus connections." "It figures a memory card slot (Micro SD), programmable LEDs (red, yellow, green) and power LED (green)." "Its size is 4 DIN. It measures 72mm wide, 60mm deep, 110mm high, and weighs 0.165kg." "The Secure interface Gateway ensures a cyberSecure connection to M172 and M171 Optimized controllers, including Modbus devices." "The Secure Interface Gateway is certified CE, UL, CSA, EAC, RCM, UKCA." "It is compatible with M172 and M171 Optimized controllers, and TM172AP12PM mounting accessory." "It is sold in a 1-piece package." "It mounts on 35mm DIN rail, or on panel with TM172AP12PM mounting accessory." "Modicon M171/M172/M173 controllers are designed for complete automation solutions for HVAC and Pumping machines." "Modicon M171/M172/M173 range is for OEMs and helps to maximize profitability or energy efficiency in HVAC applications." PartnerPLC sources new and surplus Schneider Electric automation parts — request a quote for price, condition and lead time.

Specifications

Downloads & documentation

Official documents from Schneider Electric, downloaded directly from the manufacturer.
