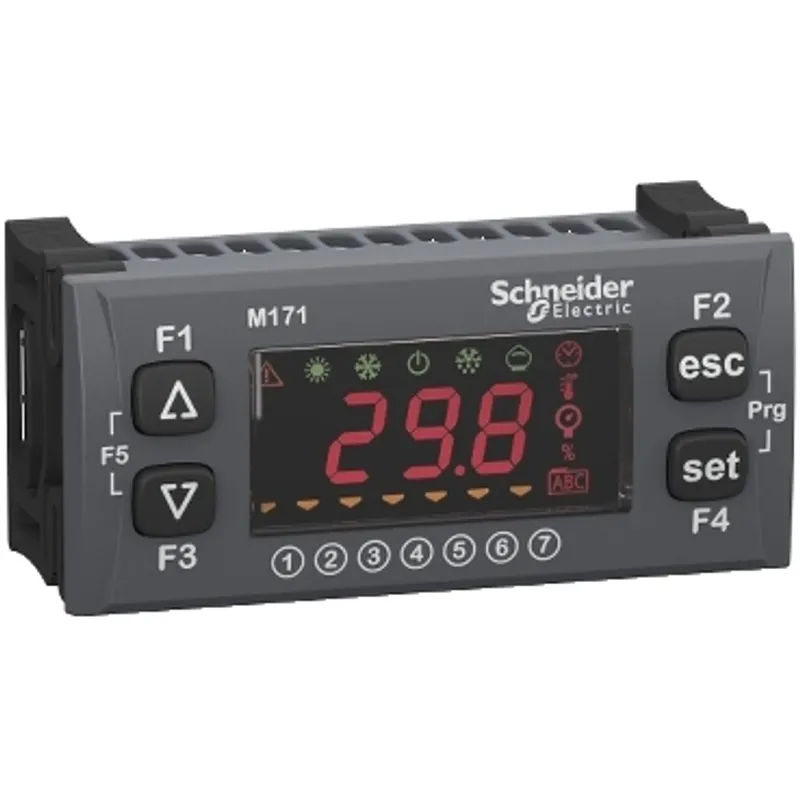

Schneider Electric TM171DLED
Modicon M171 Optimized Display LED
- MPN
- TM171DLED
- EAN
- 3606480752643
- Category
- Modicon M171/M172/M173
Price and lead time confirmed within 1 business day
Discontinued by Schneider Electric — we can still source the original TM171DLED (new, used or refurbished, subject to availability). Request a quote below.
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the Schneider Electric TM171DLED?
"This remote display is part of the Modicon M171/M172/M173 range, a control offer for HVAC/Pumping applications." "This LCD display is an accessory to the M171 optimized controllers." "It is a flush mounting displays with realtime clock." "It is connected to the LAN expansion bus which provides its power supply." "It figures a 7-button keyboard, and one Communication port for LAN expansion bus." "Its rated supply voltage is 12VDC." "It measures 74mm high, 32mm wide, and 30mm deep, and weighs 0.042kg." "It allows remote control of the HVAC controller." "It is certified by cURus." "It is compatible with M171 optimized logic controllers." "It is sold in a 1-piece package, including a LAN expansion bus connector." "It is wall mounted, with 6 holes of 4.2 mm or 6x 2.7mm in diameter." "Modicon M171/M172/M173 controllers are designed for complete automation solutions for HVAC and Pumping machines." "Modicon M171/M172/M173 range is for OEMs and helps to maximize profitability or energy efficiency in HVAC applications."
Specifications
Specifications
| Range of product | Modicon M171 |
| Product or component type | Display module |
| Display colour | Monochrome |
| Supply | External source |
| Display type | 7 segments LED + decimal point |
| Number of key | 8 |
| Colour | Grey |
| [Us] rated supply voltage | 12 V DC |
| Power consumption in W | 5 W, 0 W |
| Marking | CE |
| Local signalling | LED |
| Product compatibility | Logic controller M171 optimized |
| Height | 74 mm |
| Width | 32 mm |
| Depth | 30 mm |
| Net weight | 0.042 kg |
| Product certifications | cURus |
| IP degree of protection | IP20 |
Packaging
| Package 1 | 1 PCE, 12.700 cm × 9.000 cm × 13.000 cm (L × W × H), 129.000 g |
| Package 2 | 5 S01, 40 cm × 15 cm × 15 cm (L × W × H), 835.000 g |
Downloads & documentation
Official documents from Schneider Electric, downloaded directly from the manufacturer.
Data sheets & manuals
TM171DLED: frequently asked questions
Can I still buy the TM171DLED now that it is discontinued?
Yes. Schneider Electric has discontinued the TM171DLED, but sourcing discontinued parts is what PartnerPLC specialises in — new old stock, used and refurbished units. Request a quote and we'll confirm availability, condition and lead time. If you are planning an upgrade instead, Schneider Electric names the TM173DLED as its successor — we can quote both.
When can TM171DLED be shipped?
TM171DLED is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up TM171DLED in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for TM171DLED and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for TM171DLED, subject to availability and destination.
