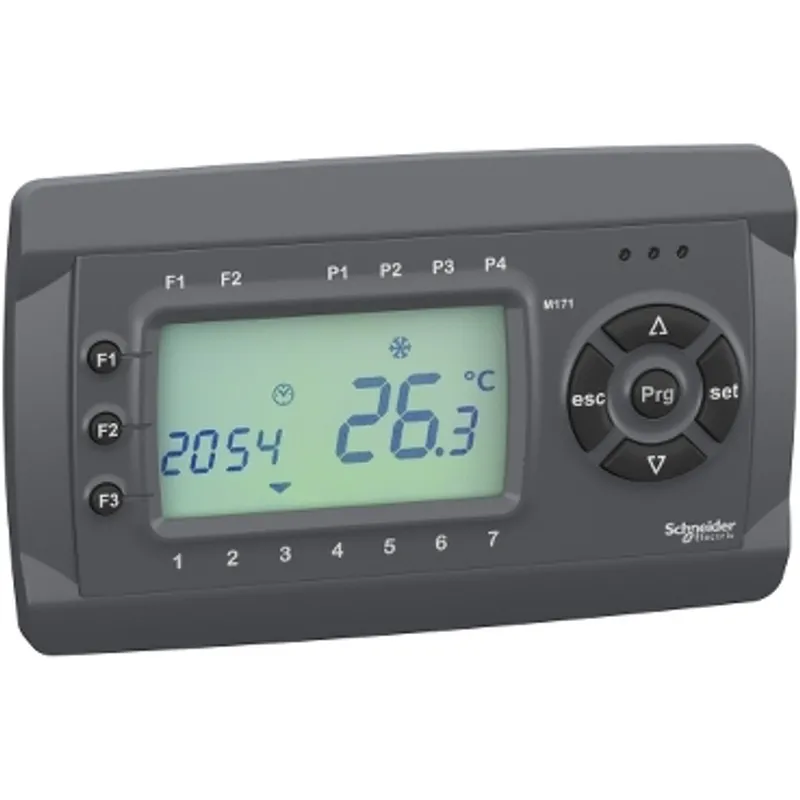

Schneider Electric TM171DLCD2U
Modicon M171 Optimized Display LCD
- MPN
- TM171DLCD2U
- EAN
- 3606480752636
- Category
- Modicon M171/M172/M173
Price and lead time confirmed within 1 business day
Discontinued by Schneider Electric — we can still source the original TM171DLCD2U (new, used or refurbished, subject to availability). Request a quote below.
Request a Quote
- 1We check stock, condition and lead time
- 2You get a written quote by email
- 3Approve it and we ship — in-stock parts within 1 business day
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- 100% positive eBay feedback
- Ships via
What is the Schneider Electric TM171DLCD2U?
"This remote display is part of the Modicon M171/M172/M173 range, a control offer for HVAC/Pumping applications." "This LED display is an accessory to the M171 optimized controllers." "It is a flush mounting displays with realtime clock." "It is connected to the LAN expansion bus which provides its power supply." "It figures a 4-button keyboard, and one Communication port for LAN expansion bus." "Its rated supply voltage is 12VDC." "It measures 160mm high, 96mm wide, and 10mm deep, and weighs 0.170kg." "It allows remote control of the HVAC controller." "It is certified by CSA, EAC, RCM, CE, and cURus." "It is compatible with M171 optimized logic controllers." "It is sold in a 1-piece package, including a LAN expansion bus connector." "It is wall mounted, with 6 holes of 4.2 mm or 6x 2.7mm in diameter." "Modicon M171/M172/M173 controllers are designed for complete automation solutions for HVAC and Pumping machines." "Modicon M171/M172/M173 range is for OEMs and helps to maximize profitability or energy efficiency in HVAC applications."
Specifications
Specifications
| Range of product | Modicon M171 |
| Product or component type | Display module |
| Display colour | Monochrome |
| Supply | External source |
| Display type | LCD screen |
| Number of key | 8 |
| Colour | Grey |
| [Us] rated supply voltage | 12 V DC |
| Power consumption in W | 5 W, 0 W |
| Marking | CE |
| Realtime clock | With clock |
| Local signalling | LCD display |
| Product compatibility | Logic controller M171 optimized |
| Height | 160 mm |
| Width | 96 mm |
| Depth | 10 mm |
| Net weight | 0.017 kg |
| Standards | IEC 61000-4-5, IEC 61000-4-3, IEC 61000-4-2, IEC 60068-2-27, IEC 60730-1, IEC 60068-2-6 Fc, UL 60730-1, UL 60730-2-9, IEC 61000-4-4, CAN/CSA-E60730-1, IEC 61000-4-11, IEC 61000-4-6, CSA E60730-2-9, IEC 60730-2-9, UL94 (material V0) |
| Product certifications | CSA, EAC, RCM, CE, cURus |
| IP degree of protection | IP40 front face: |
Packaging
| Package 1 | 1 PCE, 18.500 cm × 9.100 cm × 13.000 cm (L × W × H), 267.000 g |
| Package 2 | 6 S02, 40.000 cm × 30.000 cm × 15.000 cm (L × W × H), 1.879 kg |
No matching specifications
Downloads & documentation
Official documents from Schneider Electric, downloaded directly from the manufacturer.
Data sheets & manuals
TM171DLCD2U: frequently asked questions
Can I still buy the TM171DLCD2U now that it is discontinued?
Yes. Schneider Electric has discontinued the TM171DLCD2U, but sourcing discontinued parts is what PartnerPLC specialises in — new old stock, used and refurbished units. Request a quote and we'll confirm availability, condition and lead time. If you are planning an upgrade instead, Schneider Electric names the TM172DGRP as its successor — we can quote both.
When can TM171DLCD2U be shipped?
TM171DLCD2U is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up TM171DLCD2U in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for TM171DLCD2U and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for TM171DLCD2U, subject to availability and destination.
