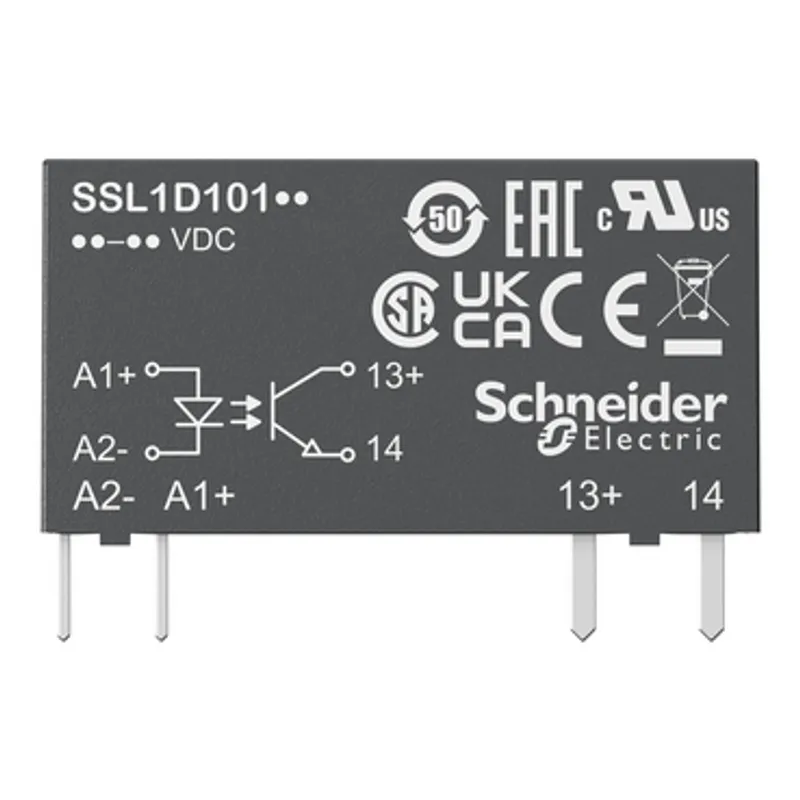

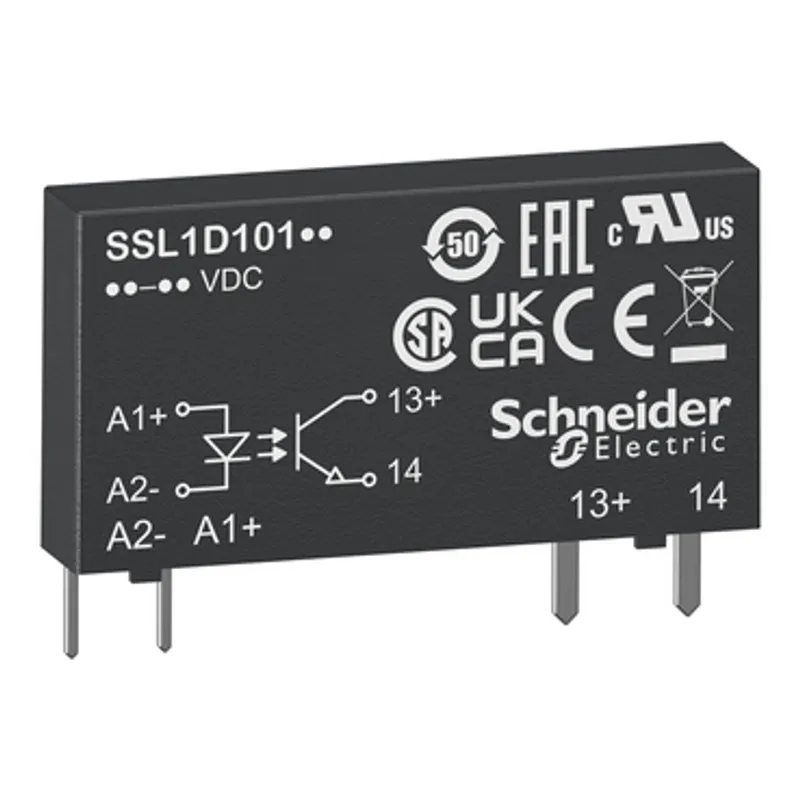

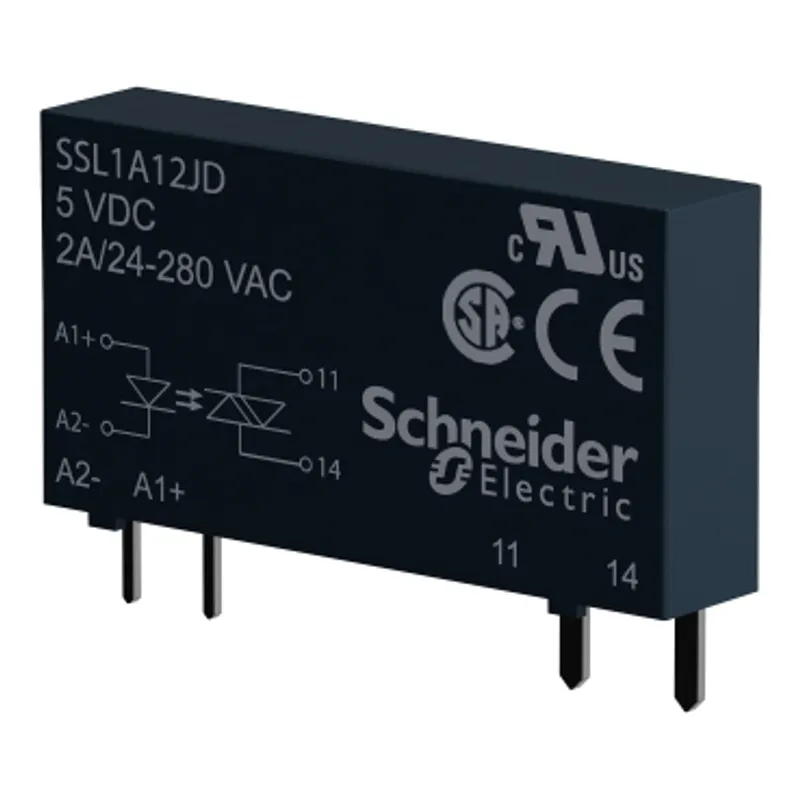

SSL1A12BDPRPre-assembled relay, Harmony Solid State Relays, 2A, zeroVoltage switching, spring sockets, input 16...30V DC, output 24...250V AC
Schneider Electric SSL1A12JD
Plug in relay, Harmony Solid State Slim Relays, 2A, zero voltage switching, input 3 to 12V DC, output 24 to 280V AC
- MPN
- SSL1A12JD
- EAN
- 3606480579707
- Category
- Harmony Solid State Relays
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the Schneider Electric SSL1A12JD?
This Harmony SSL slim interfacing solid state plug-in relay is rated 2A, is controlled with a 3V to 12V DC input, has a rated load voltage of 24V to 280V AC with zero voltage switching, ideal for resistive loads. It is 6mm width, including socket, to save space in your control cabinets. It is also silent and reliable thanks to the absence of moving contacts. It is shock, vibration and pollution resistant thanks to its IP67, it makes it ideal for harsh industrial environments.
Specifications
Specifications

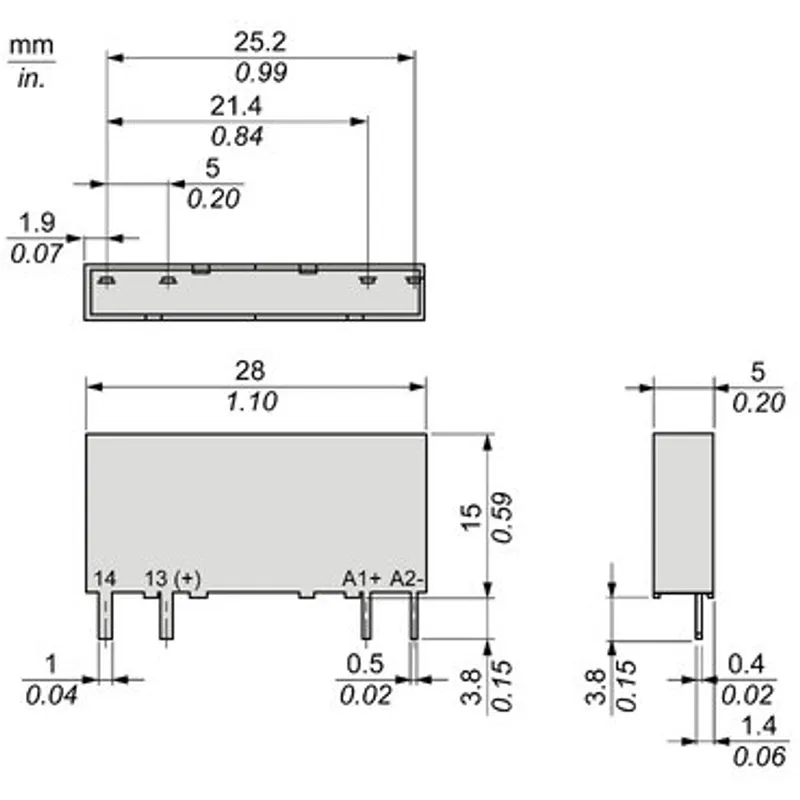

| Range of product | Harmony Solid State Relays |
| Device short name | SSL |
| Network number of phases | 1 phase |
| [Uc] control circuit voltage | 3...12 V DC |
| Output switching mode | Zero voltage switching |
| Short-circuit current | 5000 A |
| Associated fuse rating | 2.5 A at 250 V coordination type 1 |
| Ui rated insulation voltage | 280 V |
| Insulation resistance | > 100 MOhm at 500 V DC |
| Electromagnetic compatibility | Electrostatic discharge - test level: 4 kV criteria B (contact discharge) conforming to IEC 61000-4-2, Electrostatic discharge - test level: 8 kV criteria B (air discharge) conforming to IEC 61000-4-2, Conducted RF disturbances - test level: 10 V criteria A (0.15...80 MHz) conforming to IEC 61000-4-6, Electrical fast transient/burst immunity test - test level: 2 kV criteria B (5 kHz) conforming to IEC 61000-4-4, Electrical fast transient/burst immunity test - test level: 1 kV criteria B (5 kHz) conforming to IEC 61000-4-4, Surge immunity test - test level: 1 kV criteria B (line to line) conforming to IEC 61000-4-5, Surge immunity test - test level: 2 kV criteria B (line to earth) conforming to IEC 61000-4-5, Surge immunity test - test level: 1 kV criteria B (line to earth) conforming to IEC 61000-4-5, Radiated emission - test level: 30...1000 Mhz conforming to IEC 60947-1, Conducted emission - test level: 0.15...30 Mhz conforming to IEC 60947-1 |
| [Uimp] rated impulse withstand voltage | 4.0 kV for input to case conforming to IEC 62314, 4.0 kV for input/output circuit conforming to IEC 62314, 4.0 kV for input/output circuit conforming to UL 508, 4.0 kV output to case, 4.0 kV output to case conforming to IEC 62314, 4.0 kV for input to case conforming to UL 508, 4.0 kV output to case conforming to UL 508 |
| Mounting support | Socket |
| [In] rated current | 2 A |
| Output voltage | 24...280 V AC |
| Capacitance unbalance | 2.5 pF input/output |
| Minimum switching voltage | 3 V DC turn-on |
| Maximum switching voltage | 1 V DC turn-off |
| Input current | 15 mA |
| Input impedance | 400 Ohm |
| Solid state output type | Random voltage switching, SCR output |
| Load current | 0.07…2 A |
| Transient Overvoltage | 600 V |
| Surge current | 84 A for 16.6 ms, 80 A for 20 ms |
| Maximum voltage drop | <1.5 V on-state |
| Maximum I²t for fusing | 33 A².s for 10 ms at 50 Hz, 29 A².s for 8.3 ms at 60 Hz |
| Maximum leakage current | 4 mA off-state |
| DV/dt | 500 V/µs off-state at maximum voltage |
| Response time | 0.5 cycle (turn-on), 0.5 cycle (turn-off) |
| Overvoltage category | III |
| Width | 5 mm |
| Height | 28 mm |
| Depth | 15 mm |
| Net weight | 0.0041 kg |
| Device presentation | Complete product |
| Flame retardance | V0 conforming to UL 94 |
| Dielectric strength | 2500 V for input/output |
| Pollution degree | 2 |
| Standards | IEC/EN 60947-4-3, IEC/EN 62314, UL 508, C22.2 No. 14 |
| Product certifications | cURus, CSA, EAC, CE, UKCA |
| Marking | CE |
| IP degree of protection | IP00 |
| Ambient air temperature for operation | -20…80 °C |
| Ambient air temperature for storage | -20…85 °C |
Packaging
| Package 1 | 1 PCE, 2.800 cm × 2.000 cm × 0.500 cm (L × W × H), 4.000 g |
| Package 2 | 12 BB1, 37.000 cm × 2.500 cm × 0.700 cm (L × W × H), 61.000 g |
| Package 3 | 1080 S01, 40.000 cm × 15.000 cm × 15.000 cm (L × W × H), 5.740 kg |
Downloads & documentation
Official documents from Schneider Electric, downloaded directly from the manufacturer.
Data sheets & manuals
SSL1A12JD: frequently asked questions
When can SSL1A12JD be shipped?
SSL1A12JD is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up SSL1A12JD in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for SSL1A12JD and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for SSL1A12JD, subject to availability and destination.
