SSD1A360BDC3DIN rail mount, Harmony Solid State Relays, 60A, zeroVoltage switching, contactor configuration spring input, input 4 to 32V DC, output 48 to 600V AC
Schneider Electric SSL1A12BDPR
Pre-assembled relay, Harmony Solid State Relays, 2A, zeroVoltage switching, spring sockets, input 16...30V DC, output 24...250V AC
- MPN
- SSL1A12BDPR
- EAN
- 3606489563073
- Category
- Harmony Solid State Relays
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the Schneider Electric SSL1A12BDPR?

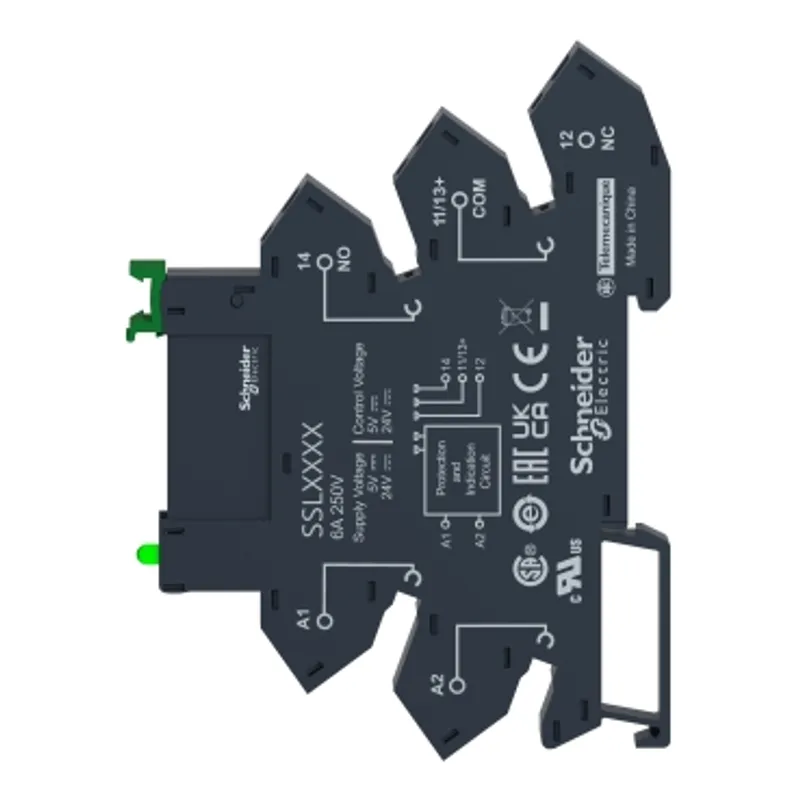

This slim interface solid state relay belongs to the Schneider Electric Harmony solid state relays range. This is a pre-assembled relay mounted on a socket that has a built-in reverse polarity protection circuit and a LED indicator. This is a 2A zero voltage switching slim relay with 16Vdc to 30Vdc input and 24Vac to 250 Vac output. This pre-assembled relay is a ready-to-go package saving assembly time. This 6mm relay has an IP67 water resistant encapsulation and a IP20 socket protection. The relay socket connection is by spring terminal type with a lever for locking or releasing the relay. This SSL weighs 0.033Kg. It is the ideal solution for packaging, HVAC, injection molding, textile machines, medical equipment, and heating control applications. It conforms to international standard and certifications like IEC, UL, CSA, CE, ROHS, GOST, EN, and REACH. It is sold in lots of 30. This is a complete range of control input and load output configurations for both AC and DC switching applications. The pre-assembled range in SSL brings you easier selection, time-saving in installation and robustness.
Specifications
Specifications
| Range of product | Harmony Solid State Relays |
| Device short name | SSL |
| Network number of phases | 1 phase |
| [Uc] control circuit voltage | 16...30 V DC |
| Connections - terminals | Flexible cable with cable end,clamping capacity: 0.2...1.5 mm² (AWG 24...AWG 16), Solid cable with cable end,clamping capacity: 0.2...1.5 mm² (AWG 24...AWG 16) |
| Output switching mode | Zero voltage switching |
| Mounting support | Spring socket |
| [In] rated current | 2 A |
| Output voltage | 24...250 V AC |
| CLAMPING FORCE | 10...40 N.m |
| Capacitance unbalance | 1.5 pF input/output |
| Minimum switching voltage | 16 V DC turn-on |
| Maximum switching voltage | 5 V DC turn-off |
| Input impedance | 3.43 kOhm |
| Solid state output type | Zero voltage switching, SCR output |
| Load current | 0.07…2 A |
| Transient Overvoltage | 600 V AC |
| Surge current | 120 A for 16.6 ms, 115 A for 20 ms |
| Maximum voltage drop | <1.1 V on-state |
| Maximum I²t for fusing | 285 A².s for 10 ms at 50 Hz, 260 A².s for 8.3 ms at 60 Hz |
| Maximum leakage current | 4 mA off-state |
| DV/dt | 500 V/µs off-state at maximum voltage |
| Response time | 0.5 cycle (turn-on), 0.5 cycle (turn-off) |
| Overvoltage category | III |

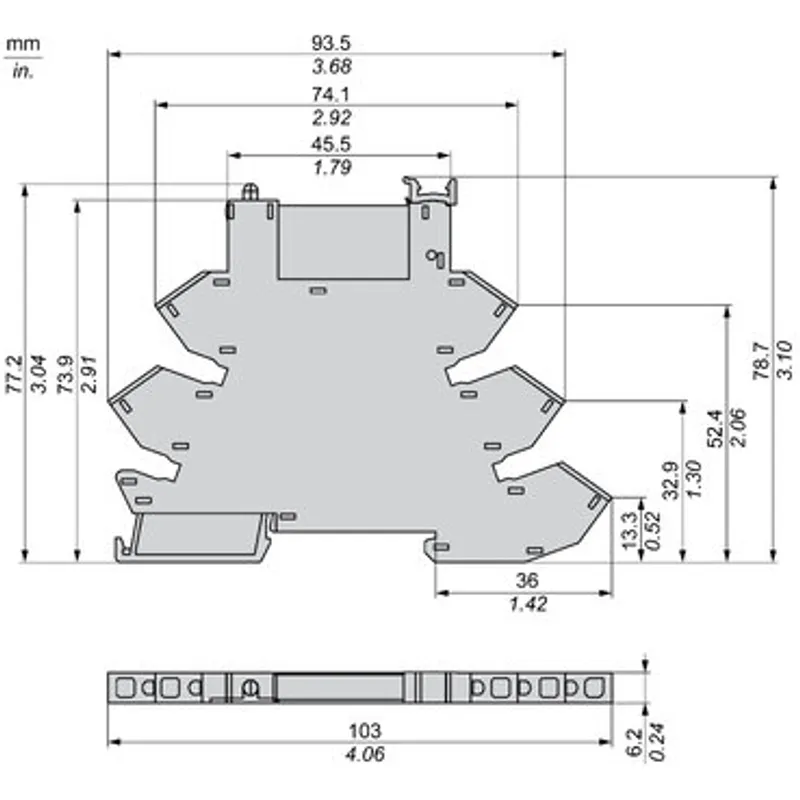

| Width | 6.2 mm |
| Height | 104.6 mm |
| Depth | 79.5 mm |
| Net weight | 0.0285 kg |
| Device presentation | Complete product |
| Flame retardance | V0 conforming to UL 94 |
| Dielectric strength | 2500 V for input/output |
| Pollution degree | 2 |
| Standards | IEC 60950-1, IEC 61000, IEC 62314, IEC 61984, EN 61984 |
| Product certifications | UL, CSA, CE, UL 508, CSA22.2 No. 14-10, GOST |
| Marking | CURus, CSA, CE, EAC |
| IP degree of protection | IP20 |
| Ambient air temperature for operation | -20…70 °C |
| Ambient air temperature for storage | -20…85 °C |
Packaging
| Package 1 | 1 PCE, 10.500 cm × 0.700 cm × 8.000 cm (L × W × H), 27.000 g |
| Package 2 | 30 BB1, 20.000 cm × 11.000 cm × 9.500 cm (L × W × H), 876.000 g |
| Package 3 | 60 S03, 40.000 cm × 30.000 cm × 30.000 cm (L × W × H), 2.541 kg |
