Schneider Electric SSD1D530BDC1
DIN rail mount relay, Harmony Solid State Relays, 30A, DC switching, input 4 to 32V DC, output 1 to 150V DC
- MPN
- SSD1D530BDC1
- EAN
- 3606489807764
- Category
- Harmony Solid State Relays
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the Schneider Electric SSD1D530BDC1?
Can you tell me about the SSD1 modular DIN rail relay and what makes it unique? This single-phase solid state DIN rail mounted relay has a IP20 built-in heat sink and a built-in transient overvoltage protection. What are the key technical specifications of the SSD1 modular DIN rail relay? This is a 30A power rated relay with relay type configuration and DC switching. It is controlled with a 4VDC to 32VDC input, has a rated load voltage of 1VDC to 150VDC. Besides the existing standard screw connection for input and output, SSD models provide more wiring options like the spring or screw pluggable input connectors. It also has a LED input voltage status indicator and clip-in legend for easy identification. It weighs 0.3 kg and its dimensions are 22.5 mm wide, 117.0 mm deep, 95.0 mm high. This electrical relay mounts on 35mm DIN rail and comes with a secure mounting latch. This relay conforms to international standards like IEC 62314, IEC 60947-5-1, UL 508 and CAN CSA 22.2 No.14-18 What benefits does the Harmony Solid State Relays range offer? This solid state DIN rail mounted relay belongs to the Schneider Electric Harmony Solid State Relays range. It is the ideal solution for packaging, plastic molding, textile, and heating furnace applications.
Specifications
Specifications
| Range of product | Harmony Solid State Relays |
| Product or component type | Modular DIN rail relay |
| Device short name | SSD1 |
| Number of channels | 1 |
| Number of phases | 1 phase |
| Product configuration type | Relay configuration |
| Mounting support | 35 mm symmetrical DIN rail conforming to IEC 60715 |
| rated current | 30 A |
| Output switching mode | DC switching |
| Rated duty | Uninterrupted |
| Output voltage | 1...150 V DC |
| control circuit voltage | 4...32 V DC |
| Tightening torque | 1.5...1.7 N.m for control input, 13...15 lb.in for control input, 1.5...1.7 N.m for load output, 13...15 lb.in for load output |
| Connections - terminals | Screw terminals, clamping connection capacity:1...4 mm², AWG 18...AWG 12 for input, Screw terminals, clamping connection capacity:1...6 mm², AWG 18...AWG 10 for output |
| Dielectric strength | 3.75 kV AC for input/output circuit, 3.75 kV AC for input or output to case |
| rated impulse withstand voltage | 6 kV for input/output circuit, 6 kV for input or output to case |
| Insulation resistance | 1000 MOhm at 500 V DC |
| Local signalling | LED (green) for control voltage |
| pick-up voltage | 4 V DC turn-on |
| drop-out voltage | 1 V DC turn-off |
| input current range | 11…15 mA |
| solid state switching type | DC switching |
| Load current | 0.005…30 A |
| Inrush current | 86 A for 10 ms |
| Maximum voltage drop | <0.535 V on-state |
| motor controller rating | 0.37 kW/0.5 hp at 120 V DC |
| Electromagnetic compatibility | Electrostatic discharge 4 kV criteria A contact discharge conforming to IEC 61000-4-2, Electrostatic discharge 4 kV criteria A air discharge conforming to IEC 61000-4-2, Conducted RF disturbances 10 V, 0.15...80 MHz criteria A level 3 conforming to IEC 61000-4-6, Electrical fast transient/burst immunity test 2 kV, 5/100 kHz criteria A output ports conforming to IEC 61000-4-4, Electrical fast transient/burst immunity test 1 kV, 5/100 kHz criteria A input ports conforming to IEC 61000-4-4, Radiated radio-frequency electromagnetic field immunity test 10 V/m, 80 MHz...1 GHz criteria A conforming to IEC 61000-4-3, Radiated radio-frequency electromagnetic field immunity test 3 V/m, 1.4...2 GHz criteria A conforming to IEC 61000-4-3, Radiated radio-frequency electromagnetic field immunity test 1 V/m, 2...2.7 GHz criteria A conforming to IEC 61000-4-3, Surge immunity test 1 kV criteria B output ports line to line conforming to IEC 61000-4-5, Surge immunity test 2 kV criteria B output ports line to earth conforming to IEC 61000-4-5, Radiated emission environment B for DC input supply conforming to IEC 60947-4-3, Conducted emission environment B for DC input supply conforming to IEC 60947-4-3 |
| device form designation | Form 5 semiconductor output DOL contactor |
| Resistance | 0.016 Ohm on-state |
| Maximum leakage current | 0.2 mA off-state |
| Response time | 75 µs (turn-on), 100 µs (turn-off) |
| short circuit protection coordination | Type 1, Type 2 |
| Overvoltage category | III |

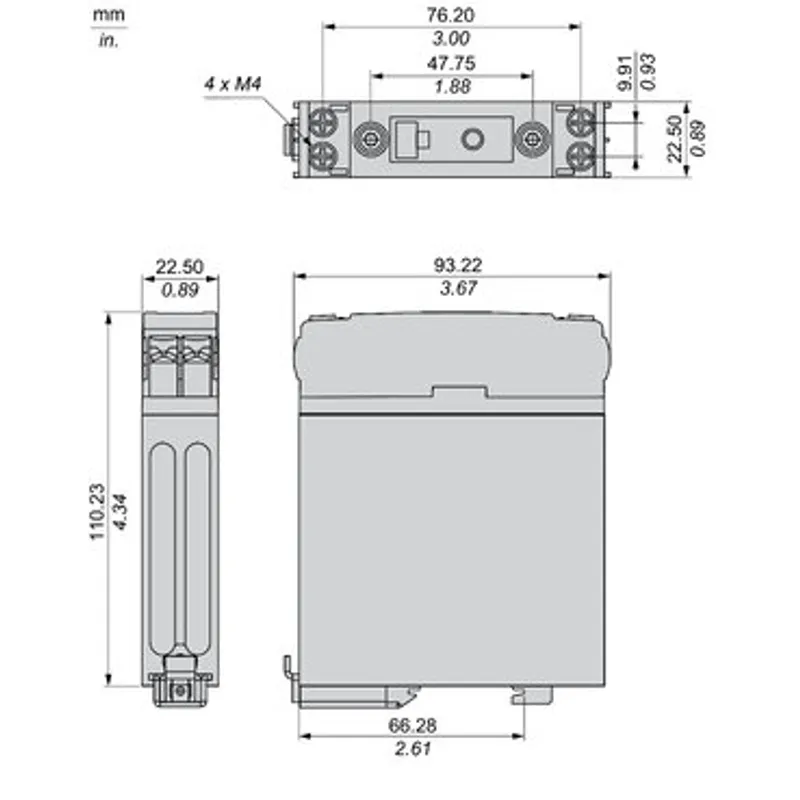

| Width | 22.5 mm |
| Height | 93.2 mm |
| Depth | 116.5 mm |
| test button | Without test button |
| Net weight | 0.298 kg |
| Device presentation | Complete product |
| Flammability rating | V-0 conforming to UL 94 |
| Vibration resistance | 0.75 mm (f = 10…150 Hz) conforming to IEC 60068-2-6 |
| Shock resistance | 50 gn for 11 ms (peak acceleration) , longitudinal position conforming to IEC 60068-2-27, 30 gn for 11 ms (peak acceleration) , vertical position conforming to IEC 60068-2-27 |
| Pollution degree | 2 |
| Standards | IEC 61373:class B: category 1, CSA C22.2 No 14-13, UL 508 |
| IP degree of protection | IP20 |
| Ambient air temperature for operation | -40…80 °C |
| Ambient air temperature for storage | -40…100 °C |
Packaging
| Package 1 | 1 PCE, 14.100 cm × 9.700 cm × 2.600 cm (L × W × H), 320.000 g |
| Package 2 | 24 S02, 40.000 cm × 30.000 cm × 15.000 cm (L × W × H), 8.090 kg |
