Schneider Electric SR2B121BSP001
Compact smart relay, Zelio Logic, 12 I O, 24 V AC, clock, display
- MPN
- SR2B121BSP001
- EAN
- 3389119400749
- Category
- Zelio Logic SR2/SR3
Price and lead time confirmed within 1 business day
Discontinued by Schneider Electric — we can still source the original SR2B121BSP001 (new, used or refurbished, subject to availability). Request a quote below.
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
What is the Schneider Electric SR2B121BSP001?
Schneider Electric SR2B121BSP001 — Compact smart relay, Zelio Logic, 12 I O, 24 V AC, clock, display (Smart Relays - Zelio Logic). Discontinued by Schneider Electric. PartnerPLC sources discontinued and surplus Schneider Electric automation parts — request a quote for price, condition and lead time.
Specifications
Main
| Range of product | Zelio Logic |
| Product or component type | Compact smart relay |
Complementary
| Local display | With |
| Cycle time | 6…90 ms |
| Backup time | 10 years at 25 °C |
| Clock drift | 12 min/year at 0…55 °C; 6 s/month at 25 °C |
| [Us] rated supply voltage | 24 V AC |
| Power consumption in VA | 4 VA without extension |
| Protection type | Against inversion of terminals (control instructions not executed) |
| Discrete input number | 8 |
| Discrete input voltage | 24 V AC |
| Discrete input frequency | 57...63 Hz; 47...53 Hz |
| Analogue input number | 0 |
| Number of outputs | 4 relay |
| Output voltage limits | 5...30 V DC (relay output); 24...250 V AC |
| Output thermal current | 8 A for all 4 outputs for relay output |
| Electrical durability | AC-12: 500000 cycles at 230 V, 1.5 A for relay output conforming to IEC 60947-5-1; AC-15: 500000 cycles at 230 V, 0.9 A for relay output conforming to IEC 60947-5-1; DC-12: 500000 cycles at 24 V, 1.5 A for relay output conforming to IEC 60947-5-1; DC-13: 500000 cycles at 24 V, 0.6 A for relay output conforming to IEC 60947-5-1 |
| Switching capacity in mA | >= 10 mA at 12 V (relay output) |
| Operating rate in Hz | 0.1 Hz (at Ie) for relay output; 10 Hz (no load) for relay output |
| Mechanical durability | 10000000 cycles for relay output |
| [Uimp] rated impulse withstand voltage | 4 kV conforming to EN/IEC 60947-1 and EN/IEC 60664-1 |
| Connections - terminals | Screw terminals, 1 x 0.2...1 x 2.5 mm² (AWG 25...AWG 14) semi-solid; Screw terminals, 1 x 0.2...1 x 2.5 mm² (AWG 25...AWG 14) solid; Screw terminals, 1 x 0.25...1 x 2.5 mm² (AWG 24...AWG 14) flexible with cable end; Screw terminals, 2 x 0.2...2 x 1.5 mm² (AWG 24...AWG 16) solid; Screw terminals, 2 x 0.25...2 x 0.75 mm² (AWG 24...AWG 18) flexible with cable end |
| Overvoltage category | III conforming to IEC 60664-1 |
| Net weight | 0.25 kg |
Environment
| Immunity to microbreaks | 10 ms repeated 20 times |
| Product certifications | GL; C-Tick; UL; CSA; GOST |
| Standards | IEC 61000-4-11; IEC 61000-4-4 level 3; IEC 60068-2-27 Ea; IEC 61000-4-5; IEC 61000-4-2 level 3; IEC 61000-4-6 level 3; IEC 60068-2-6 Fc; IEC 61000-4-12; IEC 61000-4-3 |
| IP degree of protection | IP20 (terminal block) conforming to IEC 60529; IP40 (front panel) conforming to IEC 60529 |
| Environmental characteristic | EMC directive conforming to IEC 61000-6-2; EMC directive conforming to IEC 61000-6-3; EMC directive conforming to IEC 61000-6-4; EMC directive conforming to IEC 61131-2 zone B; Low voltage directive conforming to IEC 61131-2 |
| Disturbance radiated/conducted | Class B conforming to EN 55022-11 group 1 |
| Pollution degree | 2 conforming to IEC 61131-2 |
| Ambient air temperature for operation | -20…40 °C in non-ventilated enclosure conforming to IEC 60068-2-1 and IEC 60068-2-2; -20…55 °C conforming to IEC 60068-2-1 and IEC 60068-2-2 |
| Ambient air temperature for storage | -40…70 °C |
| Operating altitude | 2000 m |
| Maximum altitude transport | 3048 m |
| Relative humidity | 95 % without condensation or dripping water |
Downloads & documentation
Official documents from Schneider Electric, downloaded directly from the manufacturer.
Data sheets & manuals
SR2B121BSP001: frequently asked questions
Can I still buy the SR2B121BSP001 now that it is discontinued?
Yes. Schneider Electric has discontinued the SR2B121BSP001, but sourcing discontinued parts is what PartnerPLC specialises in — new old stock, used and refurbished units. Request a quote and we'll confirm availability, condition and lead time.
When can SR2B121BSP001 be shipped?
SR2B121BSP001 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up SR2B121BSP001 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for SR2B121BSP001 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for SR2B121BSP001, subject to availability and destination.
More Schneider Electric parts
Schneider Electric
SR2A201FUCompact smart relay, Zelio Logic SR2 SR3, 20 IO, 100 to 240V AC, no clock, display
Schneider Electric
SR2B121BDCompact smart relay, Zelio Logic SR2 SR3, 12 IO, 24V DC, clock, display, 4 relay outputs
Schneider Electric
SR2B121FUCompact smart relay, Zelio Logic SR2 SR3, 12 IO, 100 to 240V AC, clock, display
Schneider Electric

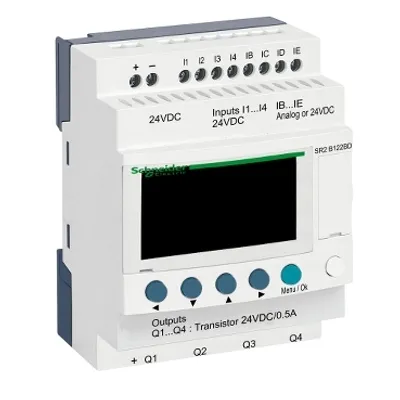

SR2B122BDCompact smart relay, Zelio Logic SR2 SR3, 12 IO, 24V DC, clock, display, 4 transistor outputs
