Schneider Electric RGZE08P
Push in socket with clamp, Harmony Electromechanical Relays, for RXG2 relays, 5A, push-in terminals, separate contact
- MPN
- RGZE08P
- EAN
- 3606481465726
- Category
- Harmony Electromechanical Relays
Price and lead time confirmed within 1 business day
Request a Quote
- 1We check stock, condition and lead time
- 2You get a written quote by email
- 3Approve it and we ship — in-stock parts within 1 business day
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the Schneider Electric RGZE08P?
RGZ push-in relay socket is part of the Harmony Electromechanical relays range. This Harmony RGZ push-in relay socket has separate contact terminals. Its voltage is 5 A. It is compatible with all 2 C/O DPDT RXG relays. It also has a test button for easy debugging, testing and commissioning
Specifications
Specifications
| Range of product | Harmony Electromechanical Relays |
| Device short name | RGZ |
| Product or component type | Socket |
| Product compatibility | Plug-in relay RXG with 2 C/O contact |
| Contacts type and composition | 2 C/O |
| [Ui] rated insulation voltage | 250 V |
| [Uimp] rated impulse withstand voltage | 6 kV between coil and contact with reinforced insulation, 4 kV between poles with basic insulation, 4 kV between terminals and DIN rail with basic insulation |
| [Ue] rated operational voltage | 250 V conforming to IEC, 300 V conforming to UL |
| Dielectric strength | 5 kV between coil and contact with reinforced insulation, 3 kV between poles with basic insulation, 3 kV between terminals and DIN rail with basic insulation |
| Shape of pin | Flat |
| Connections - terminals | Spring clamp terminals (push 'n stay), 1 x 0.5...1 x 1.5 mm² (AWG 20...AWG 16) flexible with cable end, Spring clamp terminals (push 'n stay), 1 x 0.5...1 x 1.5 mm² (AWG 20...AWG 16) solid without cable end |
| Fixing mode | Clip-on (35 mm symmetrical DIN rail) |

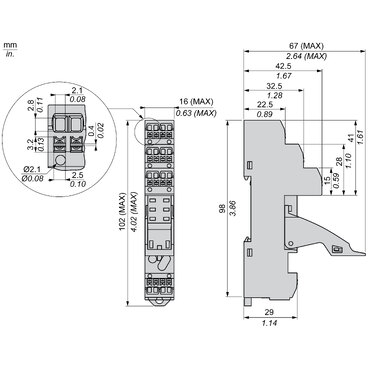

| Length | 98 mm |
| Contact terminal arrangement | Separate |
| Overvoltage category | III |
| Pollution degree | 3 |
| Width | 16 mm |
| Height | 67 mm |
| Net weight | 0.042 kg |
| Standards | IEC 61984 |
| Product certifications | CSA, UL, EAC, DNV-GL |
| Marking | CE |
| Ambient air temperature for storage | -40…85 °C |
| Ambient air temperature for operation | -40…70 °C |
| IP degree of protection | IP20 |
Packaging
| Package 1 | 1 PCE, 9.800 cm × 6.700 cm × 1.600 cm (L × W × H), 41.000 g |
| Package 2 | 10 BB1, 16.500 cm × 10.500 cm × 7.500 cm (L × W × H), 456.000 g |
| Package 3 | 160 S03, 40.000 cm × 30.000 cm × 30.000 cm (L × W × H), 7.720 kg |
