Schneider Electric RGZE05P

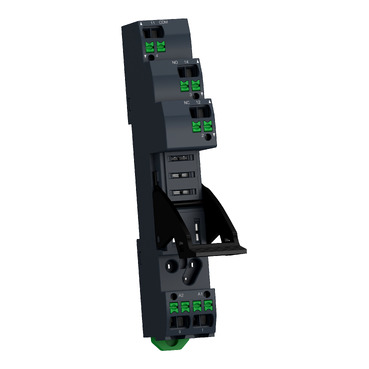

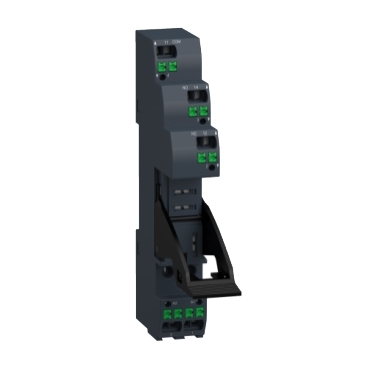

Push in socket with clamp, Harmony Electromechanical Relays, for RXG1 relays, 10A, push in terminals, separate contact
- MPN
- RGZE05P
- EAN
- 3606481465702
- Category
- Harmony Electromechanical Relays
Price and lead time confirmed within 1 business day
Request a Quote
- 1We check stock, condition and lead time
- 2You get a written quote by email
- 3Approve it and we ship — in-stock parts within 1 business day
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the Schneider Electric RGZE05P?
This Harmony RGZ range is a timing relay socket with a mixed contact terminals. It enables quick and easy plug-in installation of relays without the need for tools It is compatible with all 1 C/O RXG relays and its voltage is 10A. Simple relay retention via clamp allows quick replacement of relays and minimizes machine downtime. It is a green premium product and conforms to international standard and certifications.
Specifications
Specifications
| Range of product | Harmony Electromechanical Relays |
| Device short name | RGZ |
| Product or component type | Socket |
| Product compatibility | Plug-in relay RXG with 1 C/O contact |
| Contacts type and composition | 1 C/O |
| [Ui] rated insulation voltage | 250 V |
| [Uimp] rated impulse withstand voltage | 6 kV between coil and contact with reinforced insulation, 4 kV between terminals and DIN rail with basic insulation |
| [Ue] rated operational voltage | 250 V conforming to IEC, 300 V conforming to UL |
| Dielectric strength | 5 kV between coil and contact with reinforced insulation, 3 kV between terminals and DIN rail with basic insulation |
| Shape of pin | Flat |
| Connections - terminals | Spring clamp terminals (push 'n stay), 1 x 0.5...1 x 1.5 mm² (AWG 20...AWG 16) flexible with cable end, Spring clamp terminals (push 'n stay), 1 x 0.5...1 x 1.5 mm² (AWG 20...AWG 16) solid without cable end |
| Fixing mode | Clip-on (35 mm symmetrical DIN rail) |

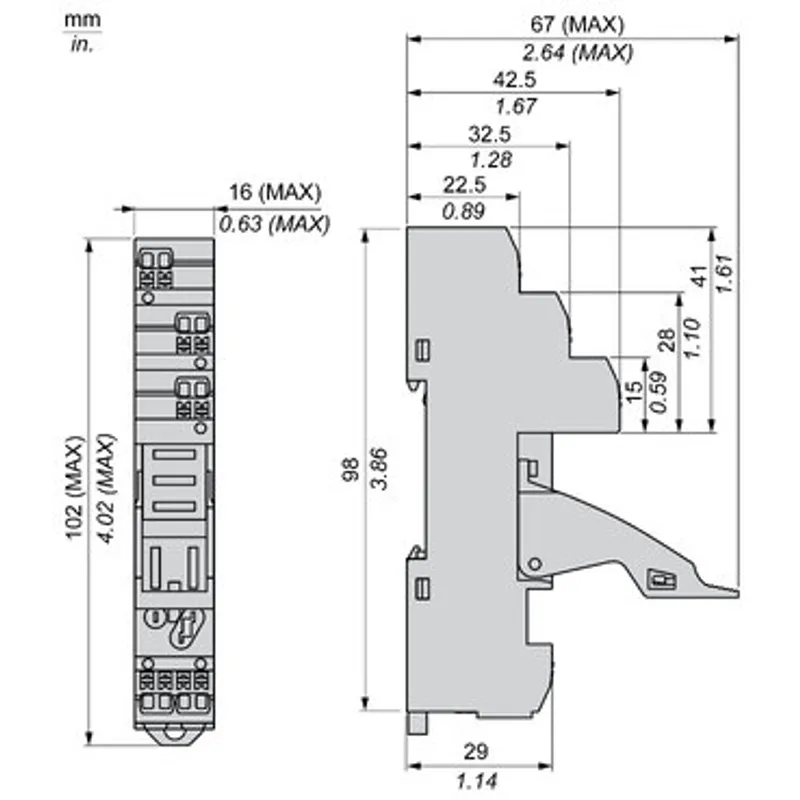

| Length | 98 mm |
| Contact terminal arrangement | Separate |
| Overvoltage category | III |
| Pollution degree | 3 |
| Width | 16 mm |
| Height | 67 mm |
| Net weight | 0.039 kg |
| Standards | IEC 61984 |
| Product certifications | CSA, UL, EAC, DNV-GL |
| Marking | CE |
| Ambient air temperature for storage | -40…85 °C |
| Ambient air temperature for operation | -40…70 °C |
| IP degree of protection | IP20 |
Packaging
| Package 1 | 1 PCE, 9.900 cm × 6.600 cm × 1.600 cm (L × W × H), 36.000 g |
| Package 2 | 10 BB1, 16.700 cm × 10.700 cm × 7.700 cm (L × W × H), 410.000 g |
| Package 3 | 160 S03, 40.000 cm × 30.000 cm × 30.000 cm (L × W × H), 7.116 kg |
