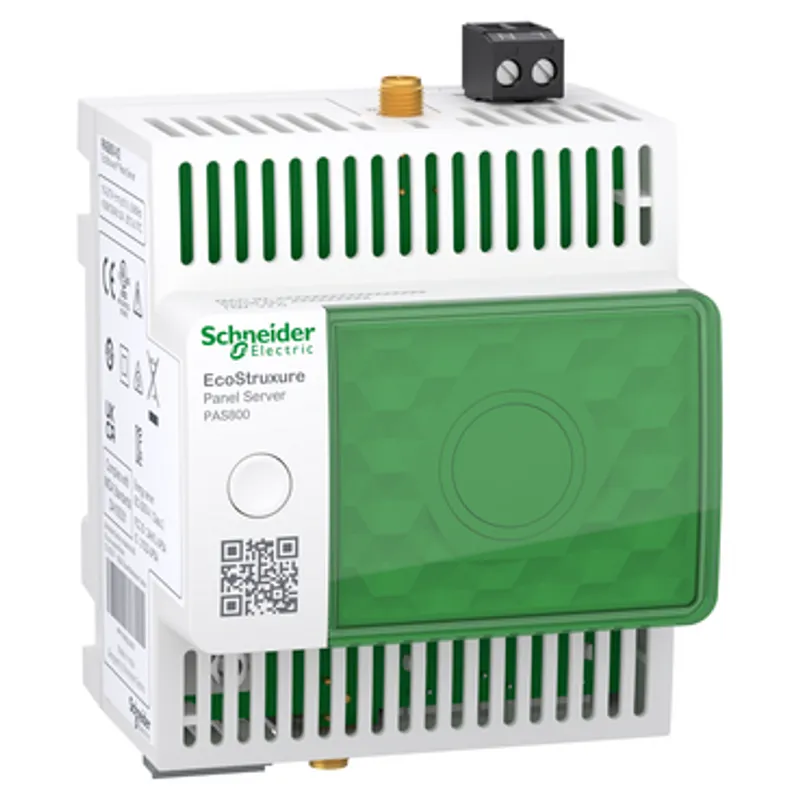

Schneider Electric PAS800
EcoStruxure Panel Server - advanced datalogger, energy server, 110-277 VAC/DC
- MPN
- PAS800
- EAN
- 3606481014375
- Category
- EcoStruxure™ Panel Server
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the Schneider Electric PAS800?
EcoStruxure Panel Server is a gateway, providing connection of wired or unwired smart IoT devices to edge control software or cloud application. Connect wireless devices from Schneider Electric such as PowerTag Energy, PowerLogic HeatTag, Power Tag Ambiant, Power Tag control and others. Connect most of Modbus/RS485 and Modbus/TCP devices from the market including PowerMeters and Protection devices from Schenider Electric. Three years data-logger with user friendly web-pages offering energy dahsboarding, trending analysis of the measurements and view of logged alarms. Simple troubleshooting or the sytem through embedded web-pages with advanced diagnostic informations and logs . Easy commissioning through embedded web-pages or with EcoStruxure Power Commissionig that will offer commissioning reports and advanced features. Product dimensions are as follows: width 71,8 millimetres, depth 70,2 millimetres and height 85 millimetres. From 110 to 277 VAC/DC 50-60Hz 3W/10VA Max Power Supply. -25°C to +70°C Operating temperature. 5-95% relative humidity. Major certifications including CE, UL/CSA, IEC61010, UL61010, IEC61974-1, Marine certification, IEC61443-4-2, RCM, EAC and UKCA. The gateway can be DIN rail mounted in a modular enclosure. It has IP20 connectors, IM40 front face nose and IP30 on others faces. Two 10/100 Base-T ethernet RJ45 connectors. Connector for external Wi-Fi/wireless network antenna. Modbus RS485 open-style connector. Connector for external antenna for wireless devices. Two connectors for Wi-Fi external antenna and wireless devices external antenna. Direct cellular connection through external LTE router connected through Ethernet or Wi-Fi. Perfect fit for EcoStruxure Edge Software such as Power Monitoring Expert, Power Operations and EcoStruxure Building Operations. Designed for EcoStruxure Cloud Applications such as Facility Expert, Asset Advisor and Resource Advisor.
Specifications
Specifications
| Range | EcoStruxure |
| Product name | Panel Server Advanced |
| Product or component type | Gateway |
| Device short name | PAS800 |
| Device application | Gateway & energy server, Data logger |
| [Us] rated supply voltage | 110...277 V AC 50/60 Hz, 110...277 V DC |
| Communication gateway | Ethernet TCP/IP to wireless devices, Ethernet/serial |
| Product compatibility | Wireless access point |
| Maximum power consumption in W | 3.5 W 110...277 V |
| Maximum power consumption in VA | 12 VA at 110...277 V |
| Communication network type | Wi-Fi infrastructure5 GHz, Wi-Fi infrastructure2.4 GHz, Ethernet 10/100BASE-T, Wi-Fi access point2.4 GHz, Wireless IEEE 802.15.4, Modbus RTU Modbus RTU client even/odd or none parity 1.2...115.2 kbit/s |
| Communication port protocol | Modbus TCP, DHCP, HTTPS, NTP/SNTP, IPv4, IPv6, TCP/IP |
| Communication port support | 2 RJ45: ETHERNET, Screw terminal block: RS485 |
| Number of server device(s) | 32 Modbus RTU product(s), 128 Modbus TCP/IP product(s), 40 wireless (IEEE 802.15.4) product(s) - mixed, 85 wireless (IEEE 802.15.4) product(s) - depending on configuration |
| Number of devices | 64 Modbus TCP/IP |
| Memory capacity | HW V2: 64 GB eMMC, HW V1: 32 GB eMMC, HW V1: 512 MB NAND |
| Number of inputs | 0 |
| Connections - terminals | Power supply: screw terminal block (top) 1.5…2.5 mm² cable(s), Communication: screw terminal block (bottom) 0.14…1.5 mm² cable(s) |
| Tightening torque | Power supply: 0.6 N.m, Communication: 0.25 N.m |
| Wire stripping length | Power supply: 7 mm, Communication: 7 mm |
| Number of connectors | 2 screw connector for Wi-Fi and IEEE 802.15.4 |
| Connector type | Connector(s)1 x RP-SMA Wi-Fi for antenna bottom, connector(s)1 x RP-SMA IEEE 802.15.4 for antenna top |
| Mounting mode | Clip-on |
| Mounting support | DIN rail |
| Product certifications | CE, cULus, CB, RCM, UKCA, FCC, IC, DNV Marine, ANSI RF, IACS E10 |
| Standards | IEC 61010, IEC 61010-1, IEC 61010-2-201, UL 61010, UL 61010-1, UL 61010-2-201, EN 61010-1, EN 61010-2-201, CAN/CSA C22.2 No. 61010-1-12, CAN/CSA C22.2 No. 61010-2-201, IEC 62974-1, IEC 61326-1, EN 61326-1, ETSI EN 301 489-1, ETSI EN 301 489-17, EN 301-893, EN 55032, CISPR 11, ETSI EN 300 328, IEEE 802.15.4, IEEE 802.11a/b/g/n, IEEE 802.3 af/at, FCC CFR 47 part 15 class A, EN 62311, IEC 62311, IEC 60945, EN 62974-1 |
| Depth | 70.2 mm |
| Height | 93 mm |
| Width | 72 mm |
| Net weight | 206 g |
| Data recording | Historical dashbaording and trending, 3 years data logs |
| Data buffer for data publication (cloud, SFTP, HTTPS) depending on network | 3 month(s) |
| Function available | Embedded web page for configuration and upgrade, Diagnosis capabilities, Diagnostic report, Diagnostics on communication, Embedded data logger, Event Logger, Energy management, With integrated web server, Firmware update, Configurable event, Backup/restore configuration, CSV export |
| Product specific application | Wireless Schneider Electric devices ecosystem |
| Topology | Separated Ethernet network, Switched Ethernet network |
| Web services | HTTPS server, SFTP publication (CSV / JSON), HTTPS publication (CSV / JSON), Alarm notification by e-mail |
| Communication service | Device Profile for Web Services (DPWS), Modbus TCP client, Modbus TCP server, SNTP client, DHCP client, Web server (energy & operation efficiency), RSTP |
| Commissioning interface | EcoStruxure Power Commission desktop, EcoStruxure Power Commission Mobile (through Wi-Fi Access point), EcoStruxure Power Commission web (for third party device integration), Web page |
| Realtime clock | With RTC-battery set, With user calibration |
| Time synchronisation protocol | NTP, SNTP |
| Range compatibility | EcoStruxure Facility Expert, EcoStruxure Building Operation, EcoStruxure Power Operation, EcoStruxure Power Monitoring Expert, EcoStruxure Asset Advisor, EcoStruxure Energy Hub, EcoStruxure Resource Advisor, Third party SCADA |
| Communication iinterface | Modbus and wireless (IEEE802.15.4) product |
| Relative humidity | 5…95 % |
| IP degree of protection | IP40 (front face), IP20 (casing) |
| Ambient air temperature for operation | -25…70 °C |
| Ambient air temperature for storage | -40…85 °C |
| Pollution degree | 2 |
| Operating altitude | < 2000 m |
Packaging
| Package 1 | 1 PCE, 11.200 cm × 9.000 cm × 9.000 cm (L × W × H), 271.000 g |
| Package 2 | 27 S03, 40.000 cm × 30.000 cm × 30.000 cm (L × W × H), 7.927 kg |
Downloads & documentation
Official documents from Schneider Electric, downloaded directly from the manufacturer.
Data sheets & manuals
PAS800: frequently asked questions
When can PAS800 be shipped?
PAS800 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up PAS800 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for PAS800 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for PAS800, subject to availability and destination.
